Wear‑resistant Transition Fitting
Cast basalt pipe reducers enable smooth, abrasion-resistant transitions between pipe sizes—ideal for slurry, ash, and abrasive material systems.
Wear‑resistant Transition Fitting
Cast basalt pipe reducers enable smooth, abrasion-resistant transitions between pipe sizes—ideal for slurry, ash, and abrasive material systems.

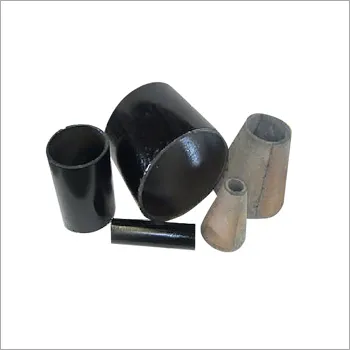

Cast basalt pipe reducers are specialized pipe fittings designed to connect pipelines of different diameters while maintaining the exceptional wear, heat, and chemical resistance properties of basalt linings. These reducers are constructed with a steel outer shell and a cast basalt ceramic lining, forming a durable solution for highly abrasive and corrosive environments.
High-performance composite pipes for abrasive and corrosive environments
Cast basalt pipe adopt magma centrifugal casting molding, then go through the tunnel kiln to annealing, and over a period of open storage to eliminating naturally the residual internal stress of cast basalt pipe
| Nominal Diameter (DN, mm) | Wall Thickness (mm) | Length Range (mm) | Product Code |
|---|---|---|---|
| 100 | 17.5, 20, 25 | 500~1000 | ZG400 |
| 125 | 17.5, 20, 25 | 500~1000 | ZG450 |
| 150 | 17.5, 20, 25 | 500~1000 | ZG500 |
| 175 | 17.5, 20, 25 | 500~1000 | ZG550 |
| 200 | 17.5, 20, 25 | 500~1000 | ZG600 |
| 225 | 17.5, 20, 25 | 500~1000 | ZG650 |
| 250 | 17.5, 20, 25 | 500~1000 | ZG700 |
| 275 | 17.5, 20, 25 | 500~1000 | ZG750 |
| 300 | 20, 25 | 500~1000 | ZG800 |
| 350 | 25 | 500~800 | ZG800 |
| 400 | 20, 25 | 500~1000 | ZG800 |
| 450 | 20, 25 | 500~1000 | ZG800 |
| 500 | 25 | 500~1000 | ZG800 |
| 550 | 25 | 500~1000 | ZG800 |
| 600 | 30 | 500~800 | ZG800 |
| 650 | 30 | 500~800 | ZG800 |
| 700 | 30 | 500~800 | ZG800 |
| 750 | 30 | 500~800 | ZG800 |
| 800 | 30 | 500~800 | ZG800 |
Thickness options vary by diameter. Contact us for specific configurations.
5-20 times longer lifespan than alloyed cast iron or steel in abrasive environments, reducing maintenance and replacement costs.
Inert to most acids, alkalis, and industrial chemicals, ensuring long-term reliability in harsh environments.
Withstands continuous operation at temperatures up to 450°C (842°F) without degradation, ideal for high-temperature applications.
Smooth ceramic inner surface minimizes material buildup and energy loss, improving overall system efficiency.
Available in diameters from DN40–DN800+ with custom fittings (elbows, tees, reducers) to meet specific application requirements.
Lower density than traditional materials simplifies installation and reduces support requirements, lowering overall costs.
Cast basalt pipes are ideal for abrasive and corrosive environments, providing long-lasting protection and efficiency.
Fly ash, coal dust, and slag pipelines where abrasion and corrosion resistance are critical.
Dust, clinker, and slurry transport lines subject to high wear from abrasive materials.
Ore, sand, and tailings conveyance systems requiring long-lasting resistance to abrasive slurries.
Acid/alkali-resistant ducts and lines for transporting corrosive chemicals in harsh environments.
Dust extraction systems, cyclones, separators, and flue ducts handling high-temperature abrasive materials.
Chutes, nozzles, and bends in abrasive environments where standard materials fail prematurely.
