Ceramic‑Lined Pipe Tee

High‑wear & Corrosion Fitting

Steel pipe tee internally lined with ceramic for superior abrasion, corrosion, and thermal resistance in industrial t‑junctions.

Ceramic Lined Tee Wear‑Resistant Pipe Tee Abrasion‑Resistant Fitting Corrosion‑Proof Tee +1 More

Download

Ceramic‑Lined Pipe Tee

High‑wear & Corrosion Fitting

Steel pipe tee internally lined with ceramic for superior abrasion, corrosion, and thermal resistance in industrial t‑junctions.

Ceramic Lined Tee Wear‑Resistant Pipe Tee Abrasion‑Resistant Fitting Corrosion‑Proof Tee +1 More

Download

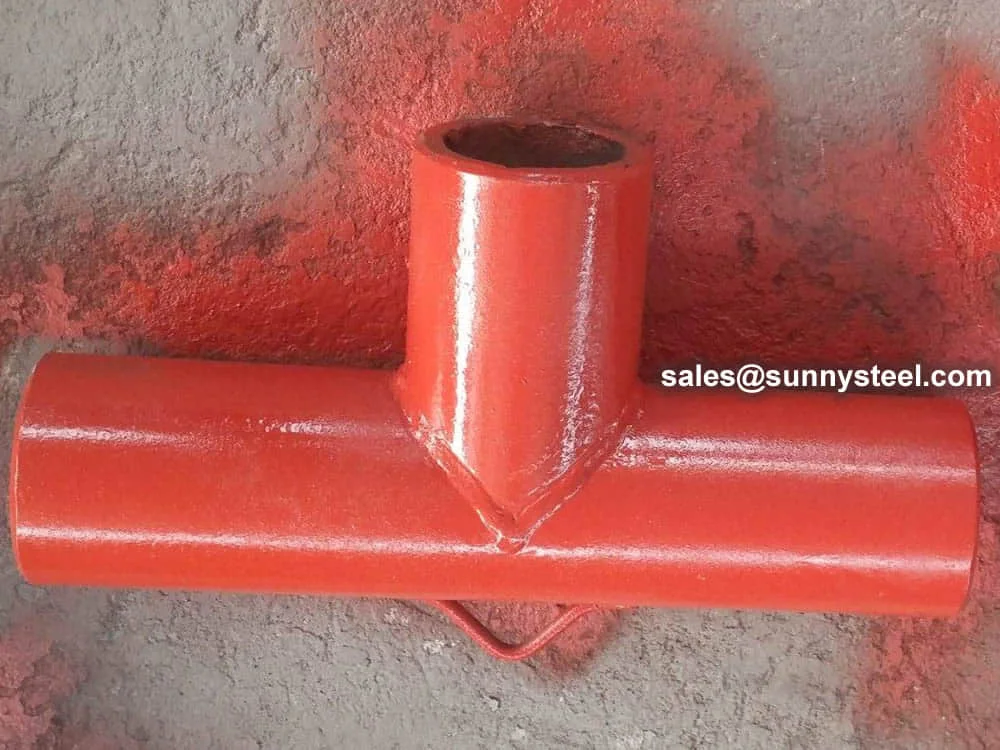

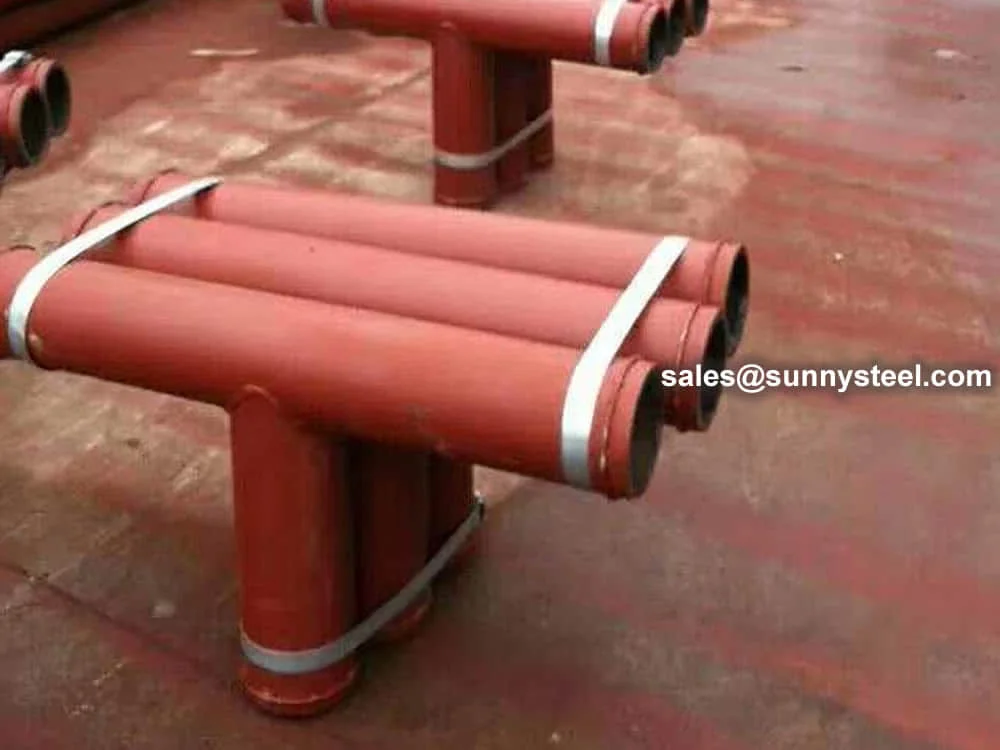

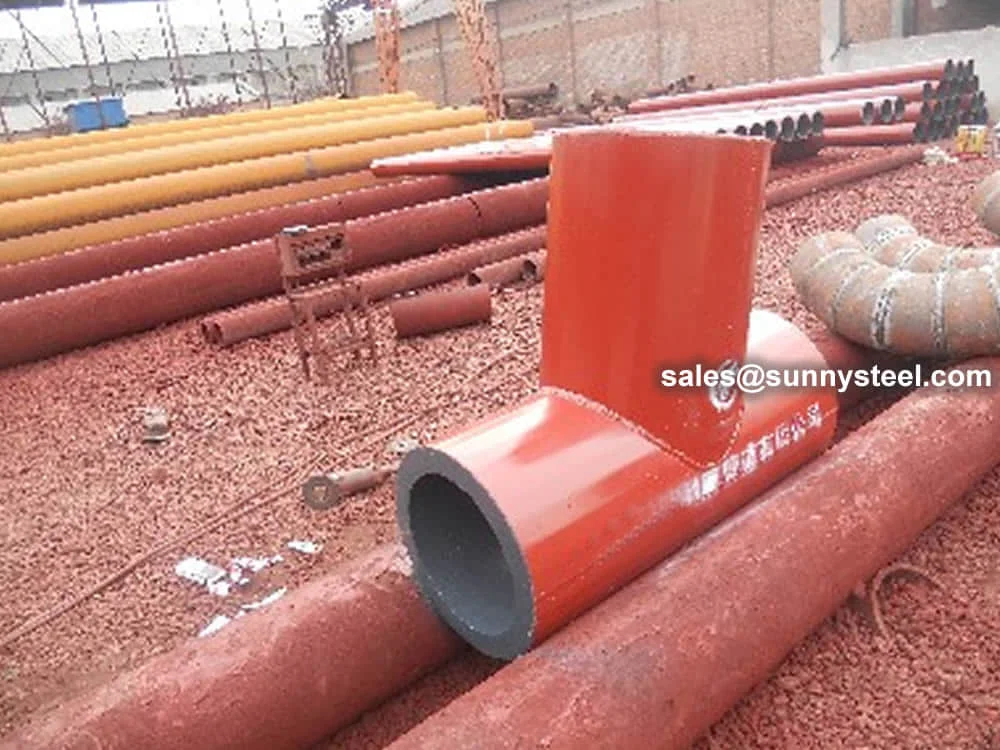

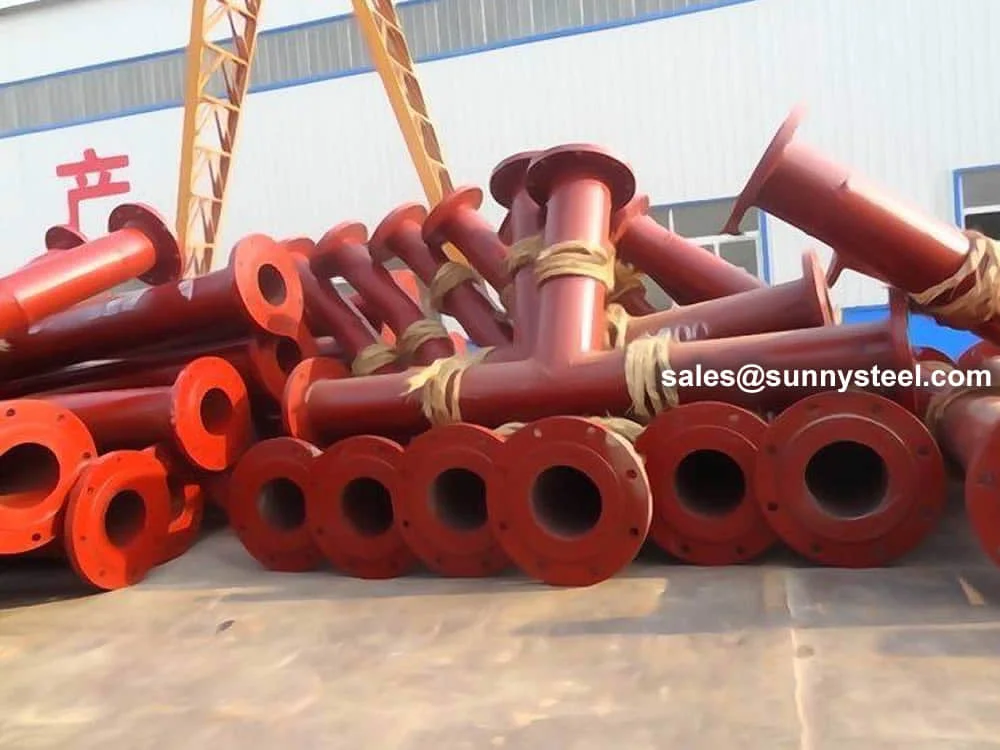

The ceramic‑lined pipe tee is an advanced pipeline fitting featuring a robust steel shell with an interior ceramic lining—typically alumina, silicon carbide, or zirconia—designed to withstand high wear, corrosion, and temperatures. It's especially effective at flow branching points where turbulence and abrasion are highest.

Core Advantages

Exceptional Abrasion Protection
Ceramic lining with Mohs hardness up to 9 delivers 10–20× wear life versus unlined steel
Chemical & Corrosion Resistance
Inert to acids, alkalis, salts, and abrasive slurries
Thermal Stability
Operates reliably from –50°C to 800°C (depending on ceramic grade)
Flow-Optimized Branching
Smooth ceramic interior minimizes pressure loss and buildup
Sturdy Composite Construction
Steel exterior for welding and pressure integrity; ceramic lining for longevity
Low Maintenance & Long-Lasting
Engineered for heavy-duty applications in power, cement, mining, and chemical industries

Technical Specifications

Ceramic Lining	Alumina (Al₂O₃) ≥95%
Mohs Hardness	9 (3x harder than tool steel)
Density	3.6–3.9 g/cm³
Bond Strength	≥30 MPa
Working Pressure	Up to 10–16 MPa (PN10–PN16)
Temperature Range	–50°C to 800°C
Pipe Size Range	DN25–DN1200
Connection Type	Flanged, welded, threaded
Standard Compliance	ASTM, DIN, JIS, GB
