Heavy‑duty Wear & Corrosion Bend
Steel bend pipe with ceramic lining for superior abrasion, corrosion, and thermal protection in challenging industrial flow curves.
Heavy‑duty Wear & Corrosion Bend
Steel bend pipe with ceramic lining for superior abrasion, corrosion, and thermal protection in challenging industrial flow curves.
Ceramic‑lined bend pipes provide outstanding wear, corrosion, and heat resistance—ideal for abrasive slurry, ash, and chemical flow curves in industrial piping.

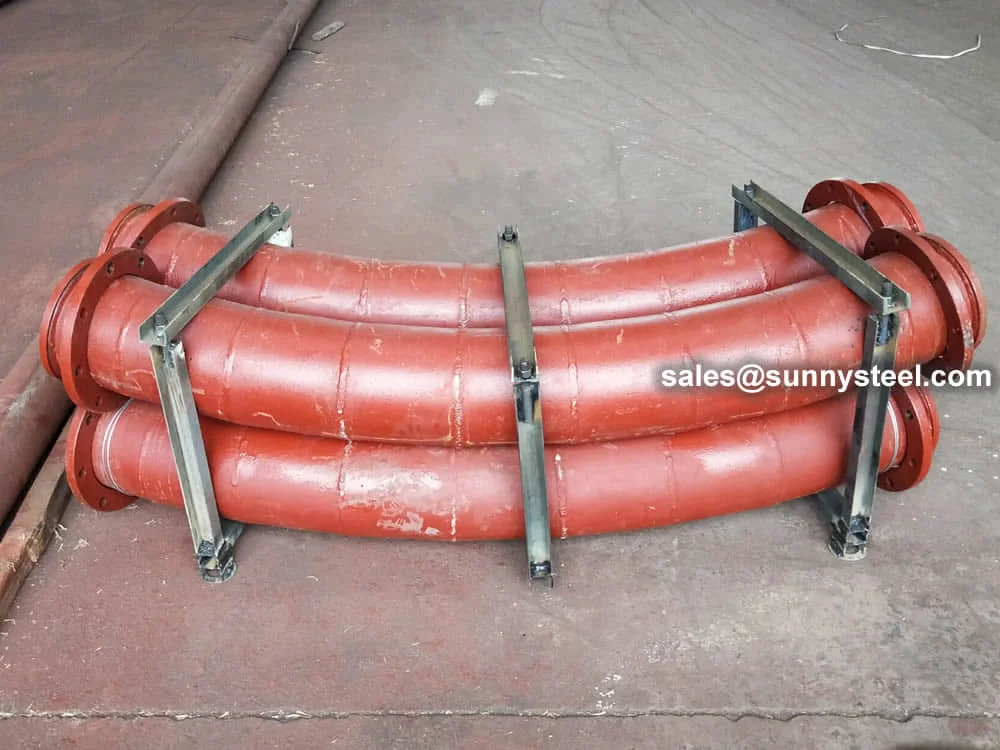

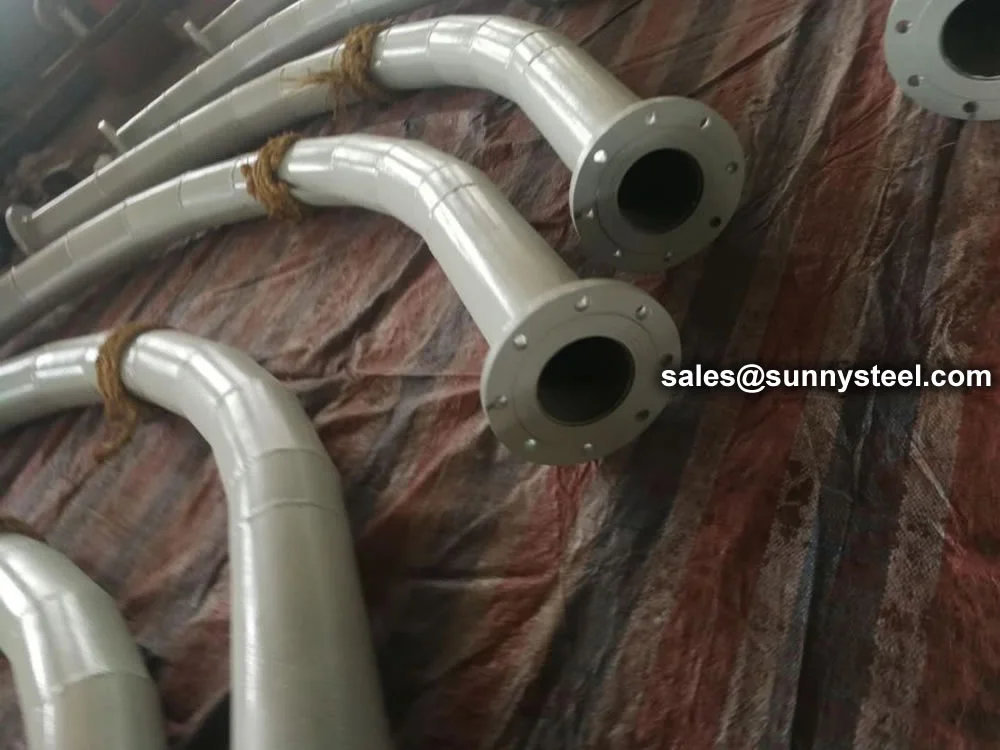

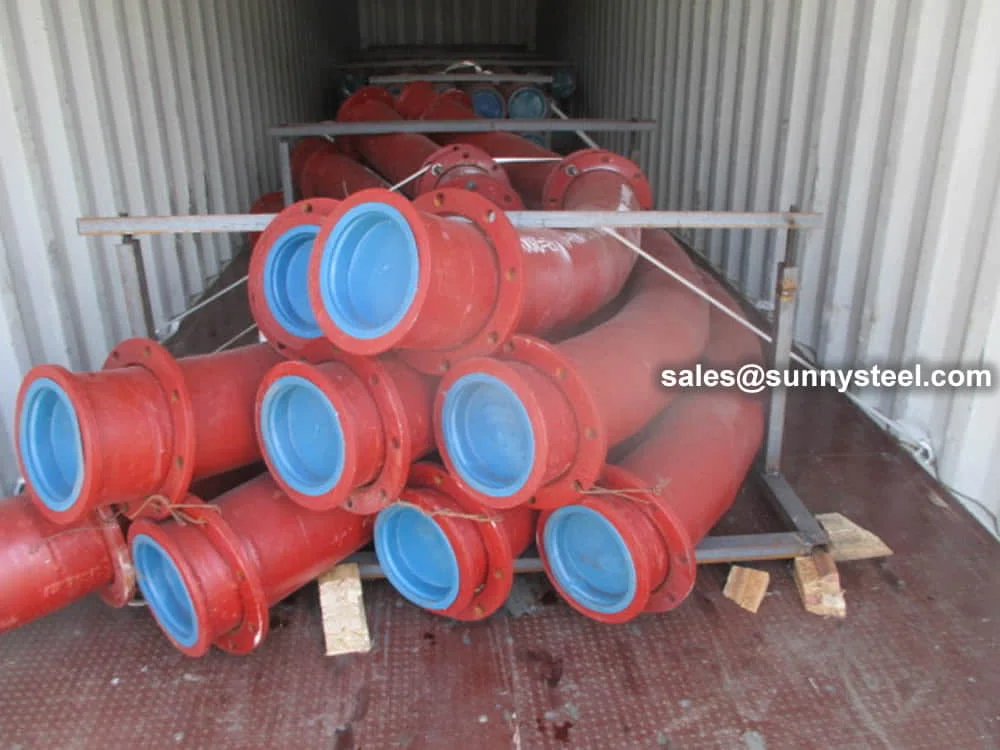

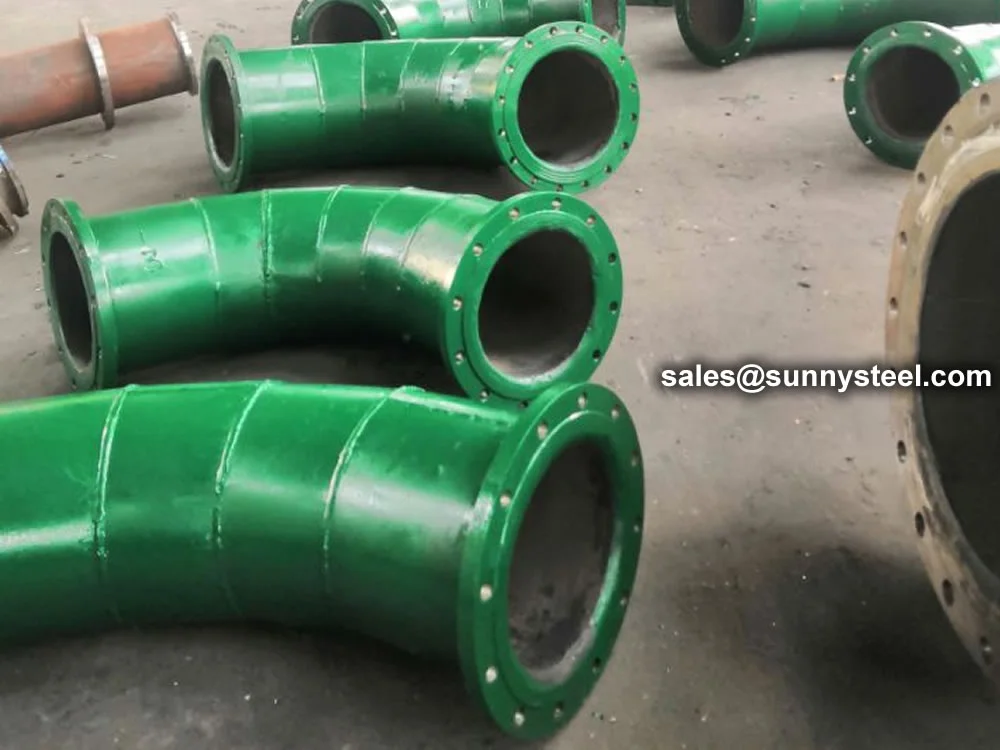

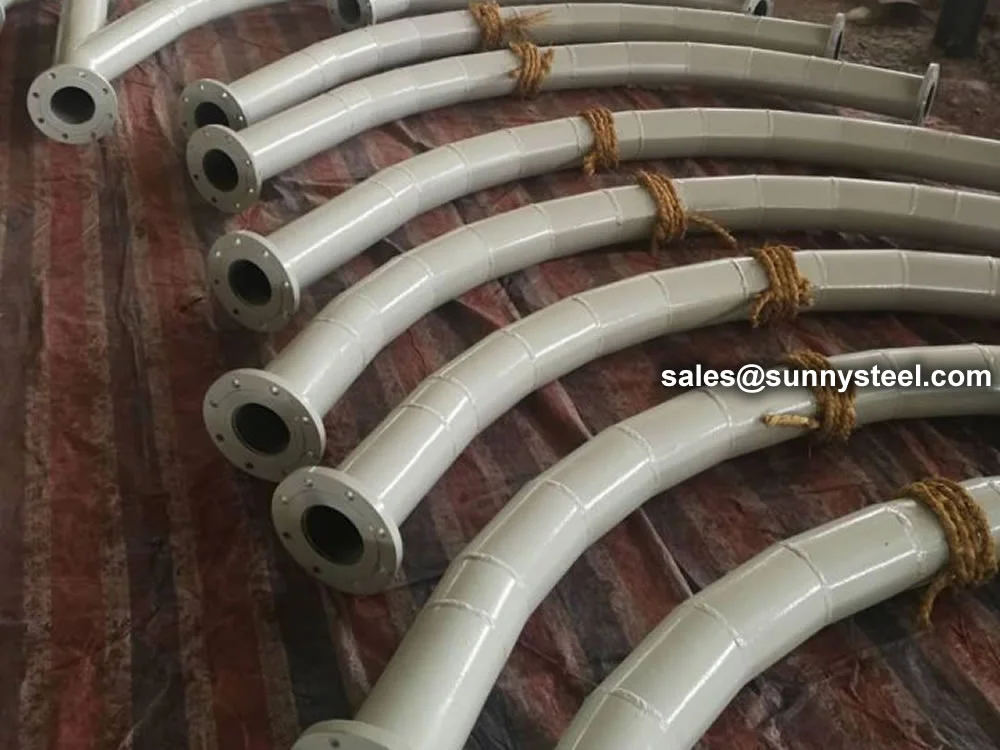

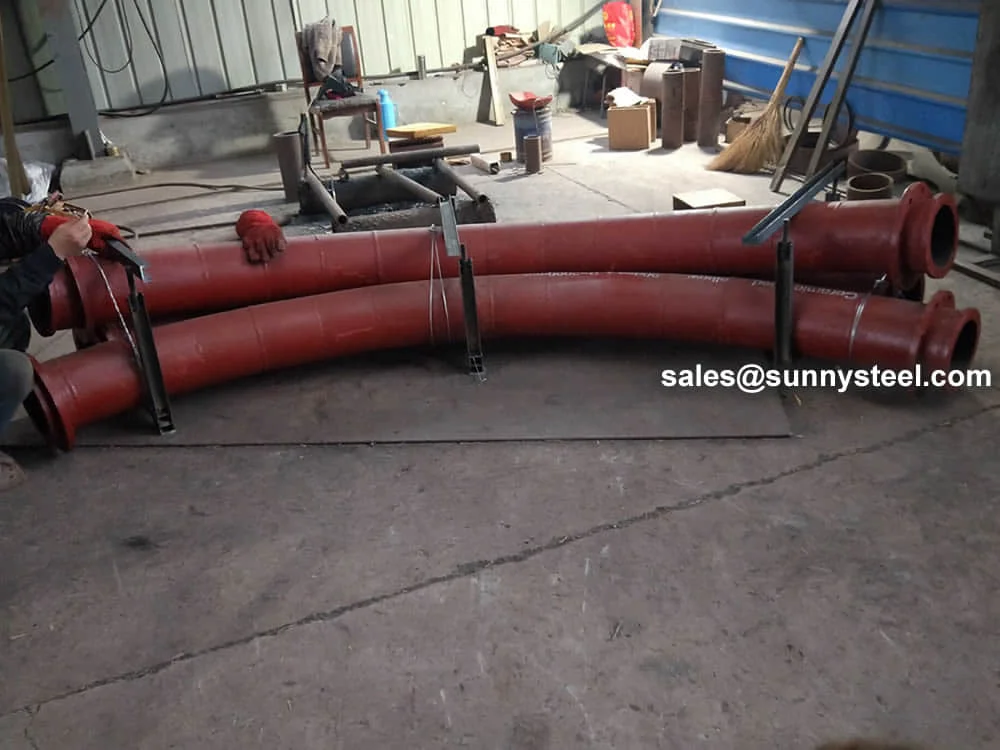

The ceramic‑lined bend pipe is a robust pipeline fitting composed of a durable steel bend shell internally lined with high-hardness ceramic materials—such as alumina, silicon carbide, or zirconia. Engineered to protect against extreme wear, corrosion, and temperature, this bend is used in directional change points in abrasive pipelines.
| Parameter | Specification |
|---|---|
| Base Material | Q235 Carbon Steel / 304/316L Stainless Steel |
| Ceramic Lining | 92-95% α-Al₂O₃, 4-10mm thickness |
| Bend Angles | 30°, 45°, 60°, 90°, 180° |
| Bend Radius | 1.5D, 3D, 5D (Long Radius Standard) |
| Pressure Rating | PN1.6-PN6.0 (ASME B16.9 Compliant) |
| Temperature Range | -50°C to 800°C (SHS-Bonded) |
| Flow Velocity | Up to 40 m/s with abrasive particles |
| Chemical Resistance | pH 1-14 compatibility (HF-resistant options) |
| Connection Types | Butt weld, Flanged, Threaded |
