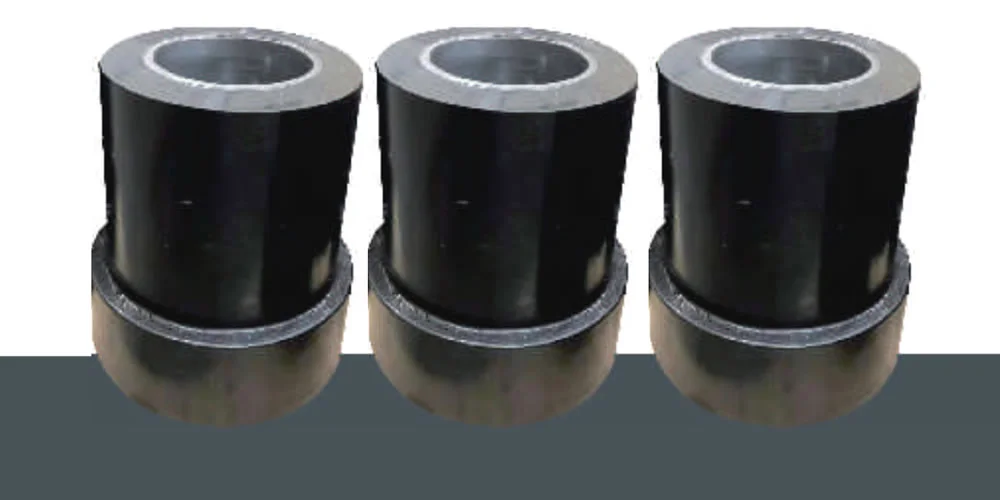

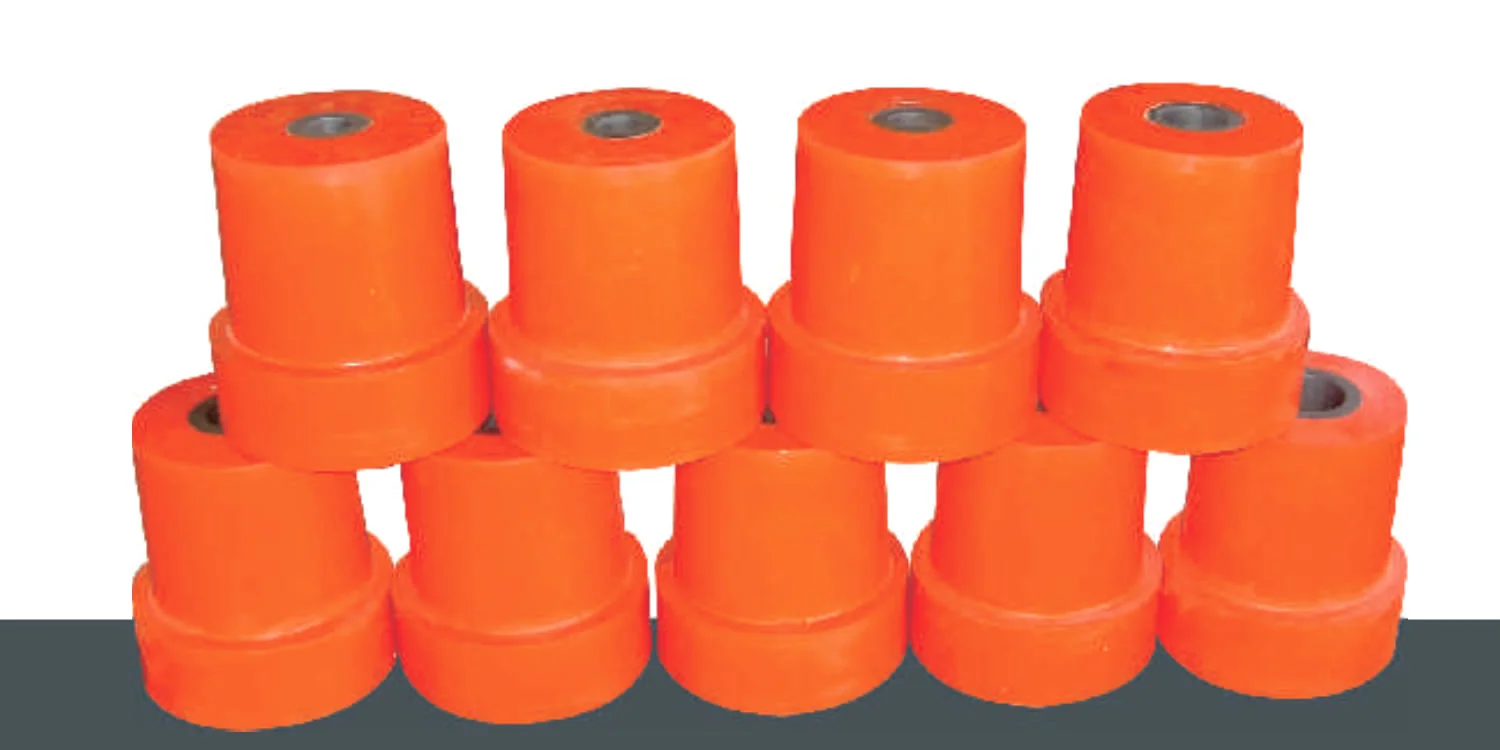

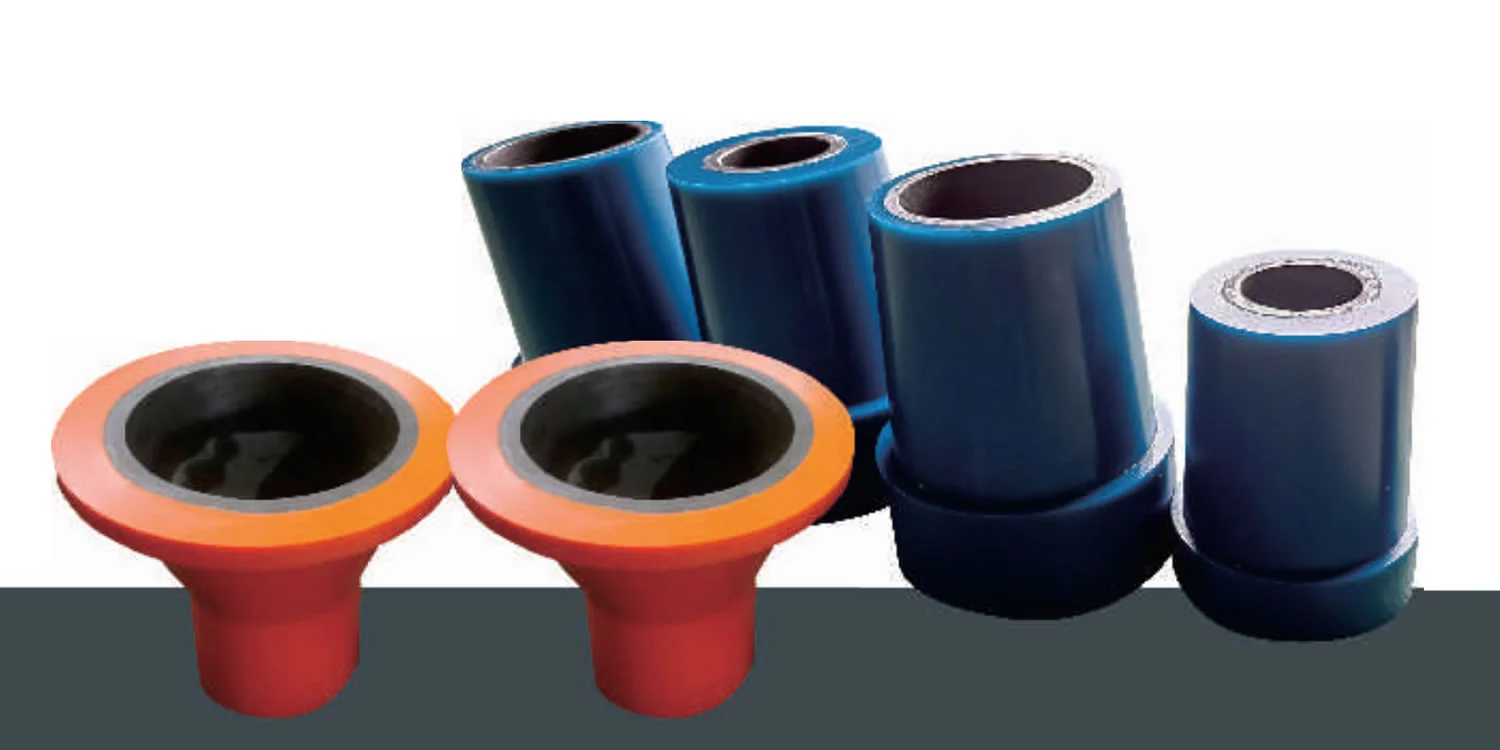

SISIC Silicon carbide composite polyurethane bushing

SISIC Silicon carbide composite polyurethane bushing

Combining Ceramic Hardness With Polyurethane Flexibility For Extreme Wear Protection In High-load, Abrasive Flow Systems.

Sisic composite polyurethane bushings offer exceptional wear resistance, impact absorption, and corrosion protection in harsh slurry or solid-handling environments.

SiSiC Bushing Silicon Carbide Composite Bushin Polyurethane Liner Wear Resistant Bushing +1 More
Download

SISIC Silicon carbide composite polyurethane bushing

Combining Ceramic Hardness With Polyurethane Flexibility For Extreme Wear Protection In High-load, Abrasive Flow Systems.

Sisic composite polyurethane bushings offer exceptional wear resistance, impact absorption, and corrosion protection in harsh slurry or solid-handling environments.

SiSiC Bushing Silicon Carbide Composite Bushin Polyurethane Liner Wear Resistant Bushing +1 More
Download
SiSiC Bushing
Silicon Carbide Composite Bushin

SiSiC Silicon Carbide Composite Polyurethane Bushings are advanced hybrid wear-resistant sleeves, engineered by combining reaction bonded silicon carbide (RBSiC / SiSiC) with high-performance polyurethane elastomers. This dual-layer design leverages the extreme hardness and abrasion resistance of SiSiC with the shock-absorbing flexibility of polyurethane, creating a bushing solution ideal for dynamic material flow systems under severe wear and impact conditions.

These composite bushings are commonly used in mining, power generation, cement, and chemical processing, especially in applications involving abrasive slurries, ore transport, or cyclonic flow where both mechanical impact and chemical corrosion are major concerns.

Key Advantages

Silicon carbide products are an advanced material widely used in high temperature, high pressure and high frequency environments.:

High Strength

Composite structure with ordinary steel outer wall meets strength requirements for various industrial processes.

Exceptional Wear Resistance

Inner ceramic layer (≥95% content) provides 30x better wear resistance than carbon steel pipes.

Corrosion Immunity

Corrosion-resistant composite layer enables use in acid, alkali, and salt environments.

High Bond Strength

Organic polymer matrix with inorganic ceramic reinforcement provides 14-16 MPa peeling strength (100x stronger than ordinary lining).

Wide Temperature Range

Continuous operation from 40°C to 200°C, with peak resistance up to 260°C.

Extended Service Life

Elbows show no significant wear after 1-2 years, outperforming thick-walled cast steel by nearly 10x.

Performance Comparison

Silicon carbide ceramic-lined pipes offer superior performance compared to traditional materials:

  • Carbon Steel Pipes 30x less wear resistance
  • Wear-Resistant Alloy Cast Steel 10x less wear resistance
  • Cast Stone Pipes Brittle, prone to cracking
  • Rubber-Lined Pipes Limited temperature resistance

Packaging and Delivery of Silicon Carbide Tubes

Our silicon carbide tubes and fittings are carefully packaged to minimize damage during storage and transit, ensuring the original quality remains intact.

We implement anti-vibration and impact-resistant measures to ensure each product arrives safely. Packaging methods are adapted for maritime transport, with corrosion-resistant wrapping and clear identification labels.

Silicon carbide tube packing on-site
Packed silicon carbide fittings
Sealed SiC tube packaging
Foam and wooden crate packaging
Pipe delivery preparation
Wrapped silicon carbide elbows
Silicon carbide tube delivery
Silicon carbide tube delivery
Silicon Carbide burner nozzles

SISIC vs SSIC Properties

Understanding the differences between reaction bonded and pressureless sintered silicon carbide

SISIC Properties

Reaction Bonded Silicon Carbide

Reaction bonded silicon carbide offers the lowest cost production technique with excellent overall performance characteristics.

  • High strength and hardness
  • Excellent wear resistance
  • High temperature resistance
  • Good corrosion resistance
  • Excellent oxidation resistance
  • Superior thermal shock resistance
  • High thermal conductivity
  • Rapid cooling and heating resistance
Applications: Beams, rollers, cooling air pipes, thermocouple protection pipes, temperature measurement pipes, burner nozzles, wear-resistant parts, corrosion-resistant parts, sealing parts, and various special-shaped structural parts.

SSIC Properties

Pressureless Sintered Silicon Carbide

Compared with reaction bonded silicon carbide, pressureless sintered silicon carbide offers superior performance in demanding applications.

  • Higher purity (>99% SiC content)
  • Superior mechanical properties
  • Enhanced corrosion resistance
  • Resistant to strong acid and alkali
  • Only ceramic resistant to hydrofluoric acid
  • Higher wear resistance
  • No free silicon content
  • Longer service life
Advantage: Can be used in environments where other materials cannot meet requirements, offering significantly longer service life and reduced maintenance costs.

Key Material Properties

High Hardness
Second only to diamond
Low Density
40% the density of steel
Thermal Shock Resistance
Low expansion, high conductivity

Silicon Carbide Features & Applications

High-performance ceramic solutions for extreme industrial environments

Key Characteristics

  • Low density, high strength
  • Excellent thermal and chemical resistance
  • High hardness and wear resistance
  • Superior oxidation and shock resistance
  • Low thermal expansion, high conductivity

Key Benefits

  • Extended service life (5–15x)
  • Low maintenance, reduced downtime
  • Thermal stability under extreme heat
  • Resistant to most corrosive media
High-Temperature Equipment

Furnace parts, kiln furniture

Semiconductors

Wafer processing, clean room tools

Chemical Processing

Resists acid/base attack

Battery Manufacturing

Lithium cell production

Armor Systems

Bulletproof and impact protection

Mechanical Seals

Used in pumps and agitators

Heat Exchangers

Corrosion-resistant tubes

Bearings

Long-lasting under high speed

Power & Metallurgy

Used for coal powder, ash, and slag pipelines, delivering superior wear resistance.

Mining

Conveying ore slurry, tailings, and concentrates; pipe life 5x longer.

Coal Industry

For long-distance wet coal delivery and corrosive environments.

Automotive

Pump seals and precision bearings for extended service.

Usage Tips

  • Avoid rapid temperature changes
  • Use non-abrasive cleaning tools
  • Schedule ultrasonic inspections regularly
  • Follow proper welding/connection protocols
