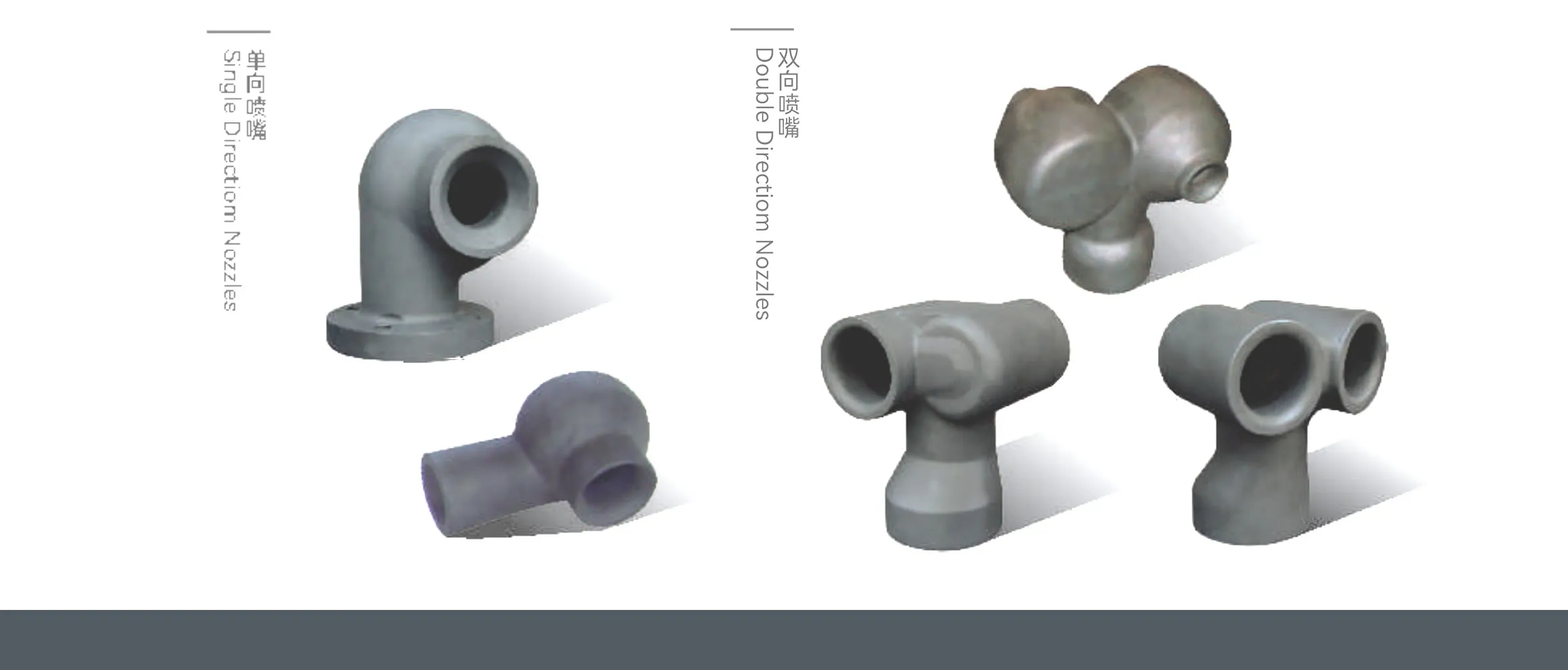

SiSiC special-shaped parts are custom-manufactured ceramic components made from Reaction Bonded Silicon Carbide (RBSiC / SiSiC), designed to meet the complex geometric, mechanical, and thermal requirements of modern industrial systems. These parts are widely used in kilns, chemical reactors, abrasive handling systems, and mechanical assemblies where standard shapes cannot meet operational needs.
Unlike conventional ceramics, SiSiC offers a unique combination of high hardness, thermal conductivity, and corrosion resistance, while being precisely machinable into non-standard forms with tight tolerances.
| Property | Value |
|---|---|
| Material | Reaction Bonded SiC (SiSiC) |
| Density | ≥ 3.02 g/cm³ |
| Hardness | Mohs 9 |
| Max Working Temperature | Up to 1380°C |
| Flexural Strength | ≥ 250 MPa |
| Thermal Conductivity | ~45–120 W/m·K |
| Thermal Expansion Coefficient | 4.5 × 10⁻⁶ /K |
| Surface Finish (Optional) | Ra ≤ 0.2 µm |
| Custom Shape Tolerance | ±0.05 mm |
Silicon carbide products are an advanced material widely used in high temperature, high pressure and high frequency environments.:
Composite structure with ordinary steel outer wall meets strength requirements for various industrial processes.
Inner ceramic layer (≥95% content) provides 30x better wear resistance than carbon steel pipes.
Corrosion-resistant composite layer enables use in acid, alkali, and salt environments.
Organic polymer matrix with inorganic ceramic reinforcement provides 14-16 MPa peeling strength (100x stronger than ordinary lining).
Continuous operation from 40°C to 200°C, with peak resistance up to 260°C.
Elbows show no significant wear after 1-2 years, outperforming thick-walled cast steel by nearly 10x.
Silicon carbide ceramic-lined pipes offer superior performance compared to traditional materials:
Our silicon carbide tubes and fittings are carefully packaged to minimize damage during storage and transit, ensuring the original quality remains intact.
We implement anti-vibration and impact-resistant measures to ensure each product arrives safely. Packaging methods are adapted for maritime transport, with corrosion-resistant wrapping and clear identification labels.
Understanding the differences between reaction bonded and pressureless sintered silicon carbide
Reaction bonded silicon carbide offers the lowest cost production technique with excellent overall performance characteristics.
Compared with reaction bonded silicon carbide, pressureless sintered silicon carbide offers superior performance in demanding applications.
High-performance ceramic solutions for extreme industrial environments
Furnace parts, kiln furniture
Wafer processing, clean room tools
Resists acid/base attack
Lithium cell production
Bulletproof and impact protection
Used in pumps and agitators
Corrosion-resistant tubes
Long-lasting under high speed
Used for coal powder, ash, and slag pipelines, delivering superior wear resistance.
Conveying ore slurry, tailings, and concentrates; pipe life 5x longer.
For long-distance wet coal delivery and corrosive environments.
Pump seals and precision bearings for extended service.
