Ceramic sleeves lined pipes are advanced composite pipeline systems where the interior is lined with high-purity alumina ceramic sleeves inserted into a steel outer shell. This structure provides dual protection—mechanical strength from the steel and superior wear resistance from the ceramic.

These pipes are specially designed for conveying abrasive materials, corrosive slurries, and high-velocity particulate flows in industries such as power generation, mining, cement, steel, and chemical processing.

The alumina ceramic lining—typically ≥92% or ≥95% Al₂O₃—offers hardness up to Mohs 9, making it highly effective in resisting friction, erosion, and chemical attack.

Key Features of Ceramic Sleeve Lined Pipe

Outstanding Abrasion Resistance

Withstands severe wear from sand, coal, ash, or slurry—far superior to traditional metal pipes.

Corrosion Resistance

High chemical stability in acidic, alkaline, or reactive flow environments.

Smooth Internal Surface

Reduces material accumulation and promotes uninterrupted flow.

High Temperature Tolerance

Performs reliably in operating temperatures up to 800°C.

Modular Sleeve System

Sleeves can be replaced individually without cutting the pipe body.

Typical Applications

✔️ Fly ash and coal transport pipelines in thermal power plants
✔️ Ore slurry and tailing discharge in mining operations
✔️ Pneumatic conveying systems for cement and powders
✔️ Chemical pipelines handling corrosive fluids or wastewater
✔️ Dust and flue gas transport in desulfurization systems

Technical Specifications

Ceramic Material	Alumina (≥92% or ≥95% Al₂O₃)
Outer Shell Material	Carbon Steel / Q235 / Q345
Hardness	Mohs 9
Max Working Temperature	Up to 800°C
Pressure Rating	≤ 2.5 MPa
Diameter Range	DN50 – DN800
Connection Types	Flanged, Welded, Grooved
Sleeve Installation	Shrink-fit or bonded adhesive

Advantages

✔️ 5–10× longer service life compared to unlined steel pipe
✔️ Significant reduction in maintenance and replacement costs
✔️ Compatible with existing piping layouts and industry standards

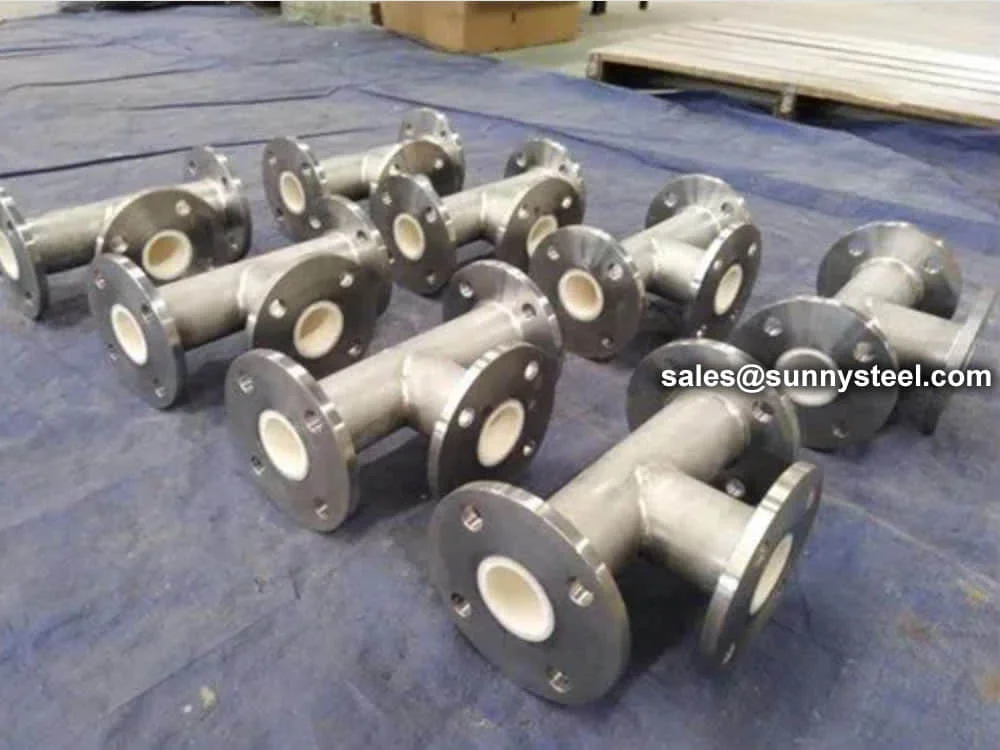

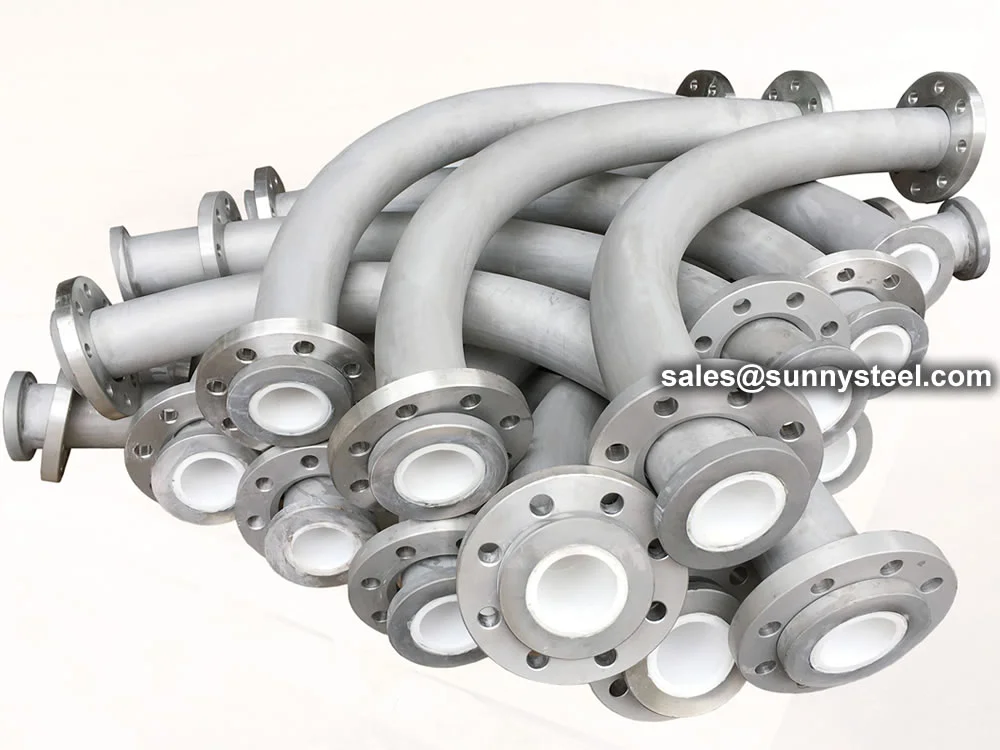

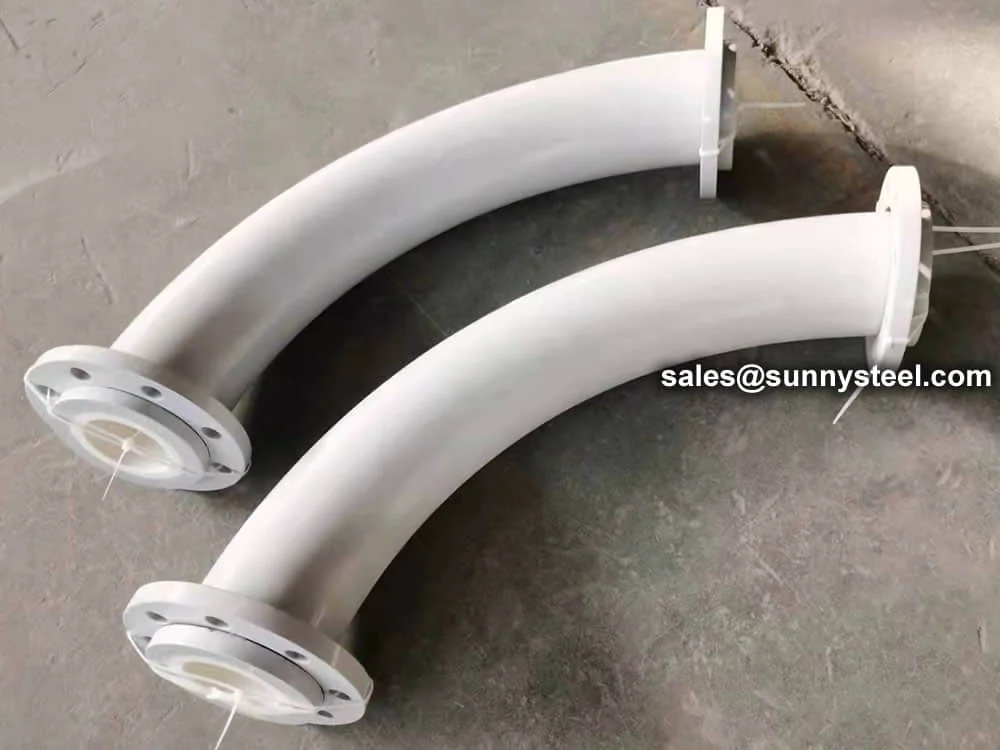

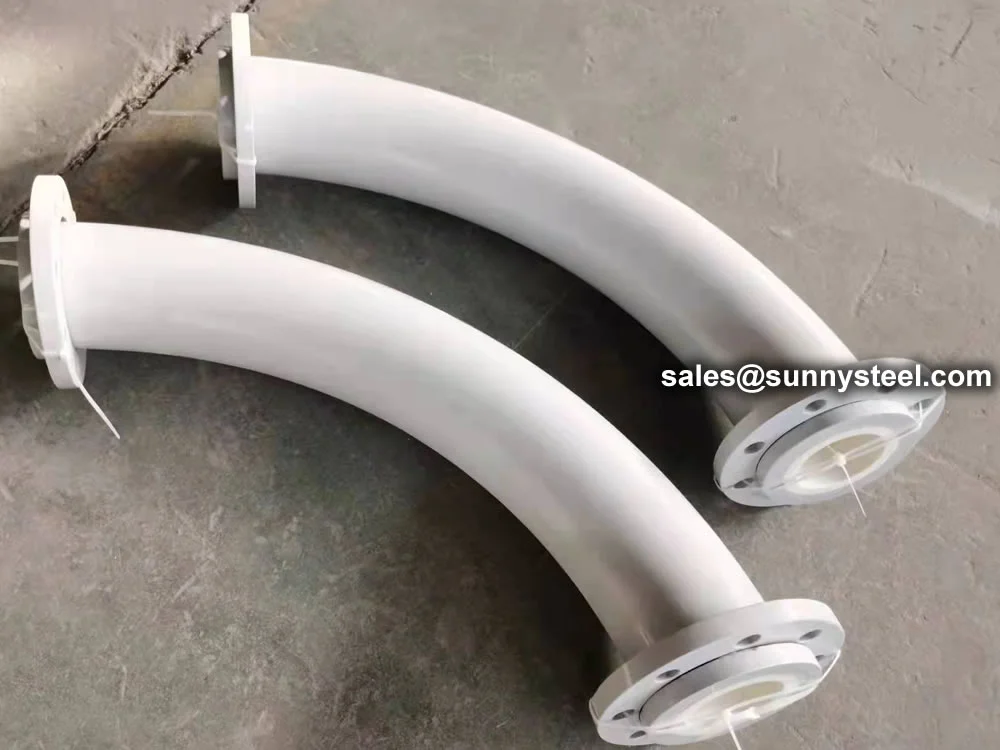

✔️ Customized elbows, tees, reducers, and fittings available
✔️ Ideal for high-wear, long-distance, and corrosive flow conditions

Sunny Steel provides fully customized ceramic sleeve lined pipe systems based on your flow medium, temperature, pressure class, and connection standards. We support OEM orders, global delivery, and technical guidance to help optimize your pipeline longevity and performance.
