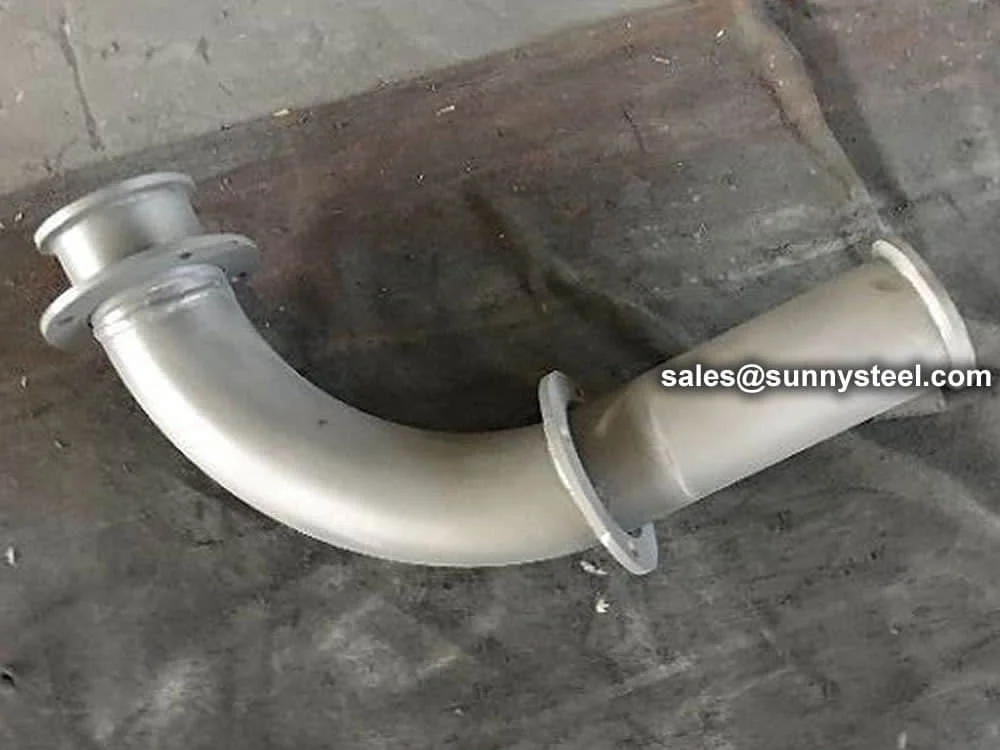

Alumina ceramic lined pipe elbows with loop flange are specially designed for high-wear pipeline bends where ease of installation and removal is equally important. These elbows consist of a carbon steel outer shell, an internally fitted high-purity alumina ceramic sleeve, and loop (or swivel) flanges welded to each end.

The loop flange connection allows for fast assembly, disassembly, or rotation without welding—making it especially suitable for maintenance-prone sections or where precise alignment is required. Internally, the ceramic sleeve (Al₂O₃ ≥92–95%) provides exceptional resistance to abrasion, corrosion, and high-temperature media, ensuring maximum durability in curved sections where material impact is strongest.

Advantages:

• Strong protection for elbows prone to rapid wear

• Loop flange simplifies pipeline assembly and maintenance

• Compatible with both slurry and gas-solid flows

• Long-lasting ceramic solution reduces lifecycle costs

• Ideal for retrofits and quick-install industrial systems

Sunny Steel offers customized alumina ceramic elbow designs with loop flanges in various angles, diameters, and pressure classes. Our solutions help reduce unplanned downtime, improve system reliability, and extend the working life of your piping infrastructure.
