Material Applications & Special Scenarios : Customized Material Choices And Tailored Solutions For Challenging Industrial Environments

Wear-resistant materials such as alumina ceramic, silicon carbide, and cast basalt are selected based on specific industrial needs and operational scenarios. These materials are engineered to combat abrasion, corrosion, high temperature, and chemical attack, extending equipment service life and reducing maintenance.

Typical applications include power plants handling fly ash and bottom ash, mining slurry pipelines transporting abrasive ores, cement plants processing raw materials, and chemical factories requiring corrosion-resistant piping. Special scenarios such as pneumatic conveying, high-pressure slurry transport, and extreme temperature environments demand customized linings and pipe designs.

By leveraging advanced materials and tailored engineering, industries achieve optimal performance and cost-efficiency, addressing their unique wear and corrosion challenges effectively.

Technical Datasheet of Advanced Alumina Ceramics
Material	Unit	95% Al₂O₃	96% Al₂O₃	99% Al₂O₃	99.5% Al₂O₃	99.8% Al₂O₃
Purity	%	95	96	99	99.5	99.8
Color	---	White/Pink	White	Ivory	Ivory	Ivory
Density	g/cm³	3.65	3.72	3.85	3.90	3.92
Water Absorption	%	0	0	0	0	0
Moh's Hardness	---	9	9	9	9	9
HV Hardness	---	>1300	>1300	1700	1750	1800
Flexural Strength @25°C	MPa	300	300	330	375	390
Fracture Toughness	MPa·m^1/2	3~4	3~4	3~4	4	4
Compressive Strength (25°C)	MPa	2200	2200	2350	2450	2500
Thermal Conductivity @25°C	W/m·K	18–22	≥24	27	29	32
Thermal Expansion Coefficient (25–1000°C)	10^-6/°C	8	8	8	8	8
Thermal Shock Resistance	ΔT (°C)	220	220	180–200	180–200	180–200
Max. Working Temperature	°C	1500	1500	1700	1750	1750
Dielectric Strength	kV/mm	16	17.2	20	22	22
Electrical Resistivity @25°C	Ω·cm	10¹⁴	10¹⁴	10¹⁴	10¹⁴	10¹⁴
Dielectric Constant @1MHz	---	9	9	9.7	9.7	9.8
Dielectric Loss (Tan δ) @1MHz	---	0.0004	0.0002	0.0002	0.0001	0.0001

Compare physical, thermal, and electrical properties across various purity levels of alumina ceramic (Al₂O₃).

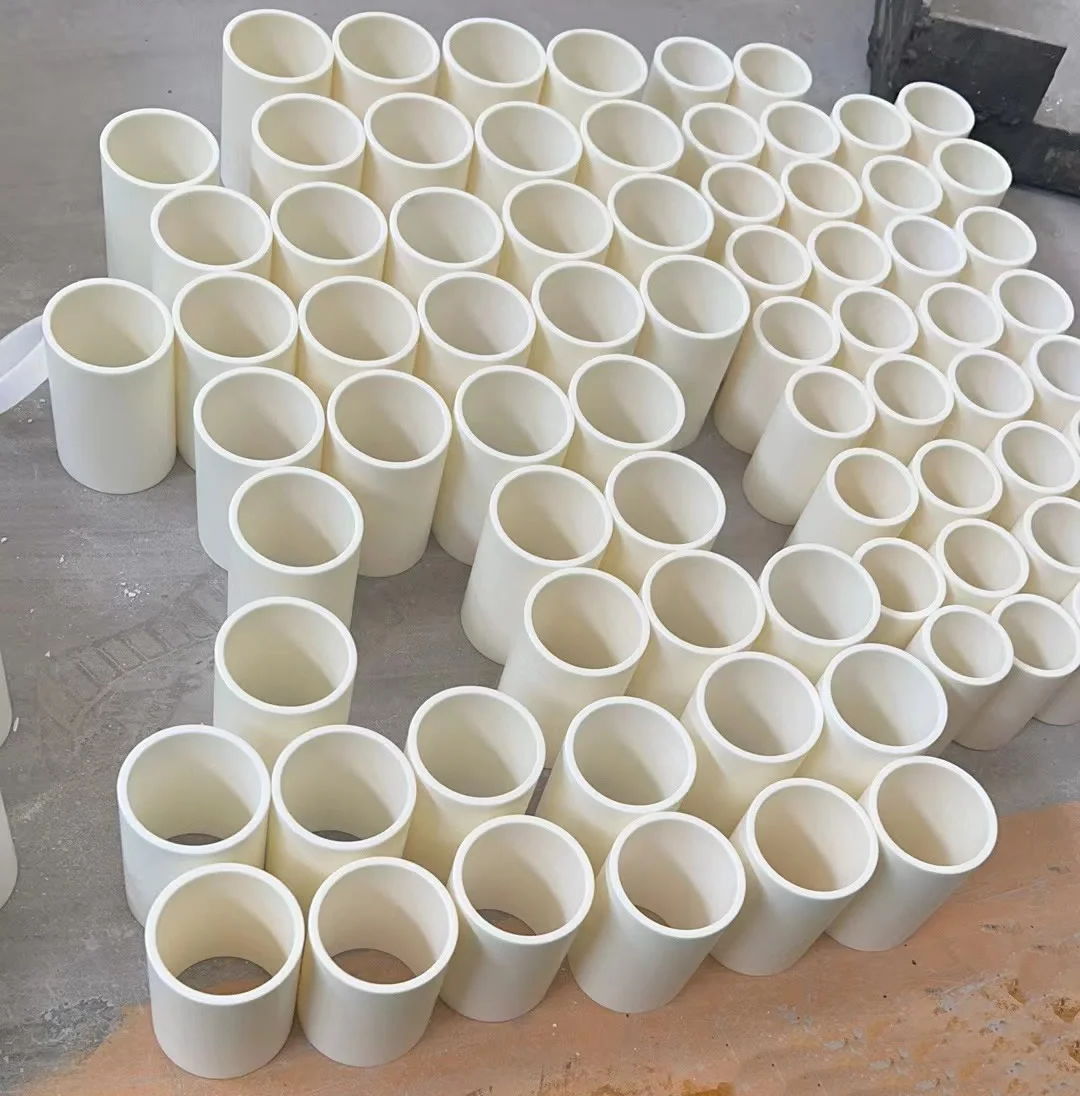

Specification of Ceramic Tubes
Parameter	Details
Material Options	Alumina (40%–99.8%), Zirconia, Silicon Carbide, Silicon Nitride
Forming Methods	Extrusion, Dry Pressed, Hot Pressed, CIM, ISO Pressed
Dimensional Capability	Min. ID: 1mm; Max. OD: 800mm
Dimensional Tolerance	OD ±0.005mm, ID ±0.01mm, Length ±0.001mm
Surface Treatment	Polished, Glazed, or Metalized
Secondary Processing	CNC machining, lapping, threading, drilling, grinding, laser cutting
