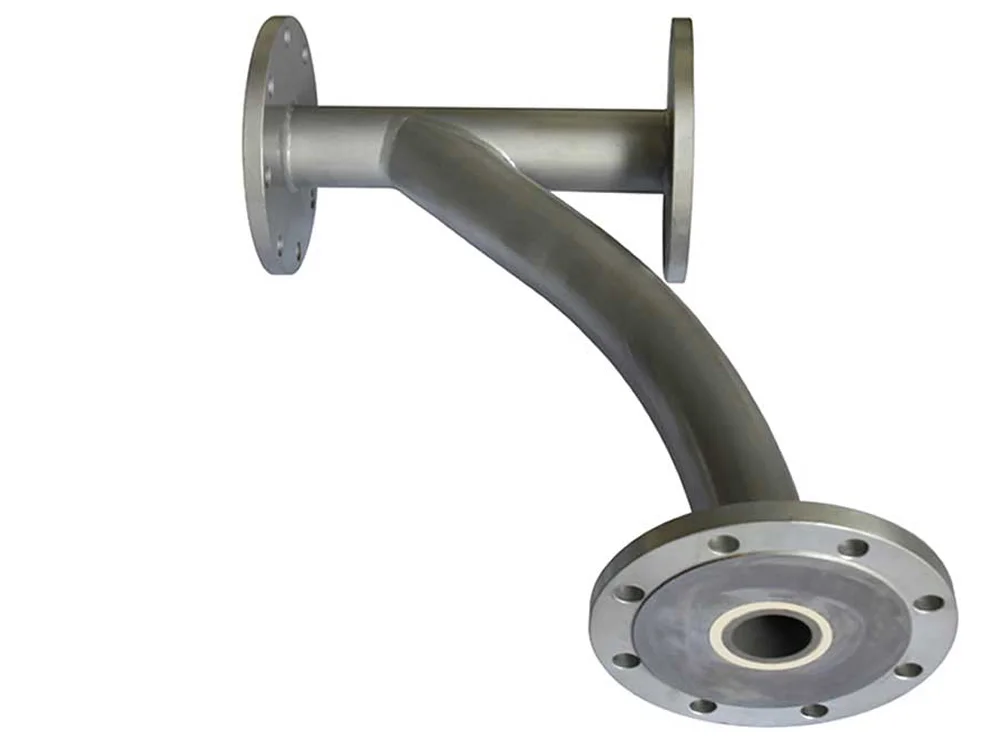

Silicon Nitride lined composite pipeline

Silicon Nitride lined composite pipeline

Combining High-temperature Stability And Extreme Hardness, Ideal For Abrasive And Corrosive Flow Media

Silicon nitride lined composite pipelines are engineered for environments involving extreme heat, corrosion, and abrasion.

Download

Silicon Nitride lined composite pipeline

Combining High-temperature Stability And Extreme Hardness, Ideal For Abrasive And Corrosive Flow Media

Silicon nitride lined composite pipelines are engineered for environments involving extreme heat, corrosion, and abrasion.

Download

Engineered for high-temperature, corrosive, and abrasive environments, silicon nitride pipelines deliver exceptional mechanical performance and chemical resistance.

Silicon nitride lined composite pipelines are engineered for environments involving extreme heat, corrosion, and abrasion. With silicon nitride ceramic as the lining material, these pipes deliver outstanding mechanical performance and chemical stability, making them ideal for demanding industrial sectors such as chemical processing and petroleum refining.

1400°C Temperature Resistance

Maintains stability under extreme heat conditions.

Chemical Resistance

Resistant to most acids and alkalis used in industry.

Superior Hardness

Second only to diamond in hardness, excellent wear resistance.

Easy Installation

Available for welding or flange connection, suitable for on-site assembly.

Technical Data of Silicon Nitride Ceramic
Item Result Unit
Density 3.20–3.26 g/cm³
Apparent Porosity 0–0.1 %
Elastic Modulus 300–320 GPa
Compression Strength > 1500 MPa
Vickers Hardness (HV0.5) 15–16 GPa
Fracture Toughness > 8.0 MPa·m1/2
Bending Strength > 700 MPa
Poisson’s Ratio 0.25 –
Linear Expansion Coefficient 3.1–3.3 ×10⁻⁶/°C
Weibull Modulus 11–13 –
Thermal Conductivity 20–25 W/(m·K)
Specific Resistivity 10¹⁴ Ω·cm
What is Ceramic Pipe Sleeve

What is Ceramic Pipe Sleeve

Ceramic pipe sleeves are protective linings made from advanced ceramic materials, designed to enhance the durability and lifespan of pipes in various industrial applications. They offer exceptional resistance to abrasion, corrosion, and high temperatures, making them ideal for challenging environments.

These sleeves are typically produced using a combination of high-purity alumina and other ceramic materials, which are processed at high temperatures to create a dense, wear-resistant lining. The result is a product that can withstand the rigors of heavy use while maintaining its structural integrity.

Recently, 95% alumina ceramic sleeve-lined pipes , elbows, and T-joints have been widely adopted in lithium battery material conveying systems .

Producing large-diameter ceramic sleeves poses a significant challenge for most manufacturers due to difficulty in controlling deformation during sintering. Furthermore, it requires advanced isostatic pressing equipment to ensure dimensional precision and structural stability.

Successfully manufacturing these high-precision components is a strong indicator of a company’s production capabilities and technical expertise in ceramic processing.

At present, our factory owns both the state-of-the-art wear-resistant ceramic pressing facilities and the engineering know-how to deliver reliable, large-size ceramic sleeves tailored for demanding industrial applications.

Alumina Ceramic Specifications
Items 92% Alumina 95% Alumina
Al2O3 ≥92% ≥95%
SiO2 0.0451 0.028
Fe2O3 0.0001 0.0001
TiO2 0.0005 —
CaO 0.018 0.0045
MgO 0.011 0.0051
K2O 0.0004 0.0003
Na2O 0.0031 0.0063
Volume Density 3.62 g/cm³ 3.65 g/cm³
Water Absorption ≤0.02% ≤0.02%
Porosity ≤1 ≤1
Hardness 9 Mohs 9 Mohs
Flexural Strength ≥2000 MPa ≥2250 MPa
Abrasion ≤0.02 ≤0.02

The combination of ceramic’s high rigidity and steel’s elasticity makes ceramic-lined pipes outstanding in abrasion, heat, and corrosion resistance. These pipes are widely applied in  power generation, metallurgy, mining, and chemical industries, offering significant advantages over conventional steel, cast stone, and steel-plastic composite pipes.

Layer Size of Ceramic Sleeve Lined Pipe
Data Metric Imperial
Tensile Strength, Ultimate 655 MPa 95 ksi
Tensile Strength, Yield 290 MPa 42 ksi
Elongation at Break (in 2") 0.55 0.55
Rockwell Hardness B84 B84

304 stainless steel plate has very good formability and can be readily welded by all common methods. Its combination with ceramic lining offers enhanced performance in wear resistance and structural stability.

Manufacturing Process of Ceramic Sleeve Lined Pipe

Ceramic sleeve lined pipes are engineered by embedding a high-purity alumina ceramic sleeve into a robust steel outer pipe. This combination significantly improves resistance to wear, corrosion, and extends service life in highly demanding environments.

Ceramic Sleeve Preparation
Ceramic Sleeve Preparation
  • Material Selection: High-density alumina (≥95%) for superior abrasion and chemical resistance.
  • Precision Shaping: Formed by isostatic pressing and sintered at ~1700°C.
  • Surface Treatment: External surfaces roughened for enhanced adhesive bonding.
Steel Pipe Preparation
Steel Pipe Preparation
  • Material Selection: Carbon or stainless steel based on strength and corrosion requirements.
  • Surface Cleaning: Inner walls cleaned and roughened to improve bonding strength.
Bonding Process
Ceramic-to-Steel Bonding
  • Adhesive Application: Heat-resistant epoxy is applied uniformly to contact surfaces.
  • Assembly: The ceramic sleeve is precisely inserted into the steel pipe.
  • Curing: Adhesive is cured for 24–48 hours to ensure structural integrity.
Finishing and Quality Control
Finishing & Quality Control
  • Flange Installation: Flanges or threaded ends are added for system connection.
  • Inspection: Dimensional, visual, and pressure tests ensure quality standards.
Ceramic Sleeve Lined Pipe Assembly Details
Detailed view of ceramic sleeve lined pipe production

Detailed Installation Process

1. Surface Cleaning

Thoroughly remove rust and debris from the steel pipe surface to ensure optimal adhesion.

2. Binder Preparation
  • Mix binder parts A & B in correct ratio.
  • Stir at least 4 times for even consistency.
  • Mix filler thoroughly if added (3 additional stirs).
3. Adhesive Application
  • Apply 0.5 mm adhesive to inner steel wall.
  • Apply 0.5–1 mm on outer surface of ceramic sleeve.
  • Seal joint surfaces between ceramic rings.
4. Sleeve Insertion & Sealing

Install sleeves precisely. Fill any gaps and seal joints to ensure a continuous ceramic layer inside.

5. Threading & Grooving
  • Process NPT male & female threads on pipe ends.
  • Chamfer edges (1×45°) for safety.
  • Apply protective oil to threads.
6. Final Curing & Check
  • Do not move pipe before curing is complete.
  • Allow ≥ 48 hours curing time (longer in cold).
  • Check alignment and joint integrity after cure.

Technical Index of Binder

Item Data Binder Characteristics
Density (g/cm³) 1.32

We use high-performance Megapoxy structural adhesive from Australia. It is a modified epoxy resin polymer offering excellent aging resistance, water resistance, and strong ceramic bonding performance. After curing, it forms a tough, impact-resistant wear layer.

Megapoxy Binder for Ceramic Sleeves
Compressive Strength (MPa)40
Shear Strength (MPa)26
Impact Toughness (KJ/m²)10
Hardness (HB)9.5
Elastic Modulus (GPa)2.2
Thermal Expansion Coefficient (10⁻⁶/°C)20.1
Softening Temperature (°C)263
Coking Temperature (°C)335
Acid Resistance (24H)StableTested with 15% H2SO4
Alkali Resistance (24H)StableTested with NaOH solution

Packaging and Delivery of Ceramic Sleeve Lined Pipe

Our abrasion-resistant ceramic sleeve lined pipes are securely packaged with steel-frame protection and sealed with plastic caps at both ends to prevent dust, moisture, and mechanical damage during transit.

Each pipe is identified with clear labels and stacked systematically for shipping, ensuring product integrity and visual cleanliness upon arrival. The packaging is designed for long-distance maritime or land transport.

Steel frame packaging of ceramic sleeve pipe
Plastic cap sealing of ceramic pipe ends
Rainproof wrapping on abrasion-resistant pipe
Ceramic sleeve pipe stacking before shipment
Loading preparation of lined pipes
Ceramic sleeve lined pipes ready for container transport

Industry Applications

Ceramic sleeve lined pipes are widely used across multiple industries to handle highly abrasive and corrosive materials efficiently.

Lithium Battery Conveying

Widely applied in lithium battery material conveying systems, including pipes, elbows, and T-joints requiring high wear resistance.

Mining Industry

Withstands harsh abrasion in mining operations where pipelines carry highly abrasive ores and slurries.

Power Generation

Used to transport ash, coal, and flue gases while resisting high wear and corrosion in power plants.

Chemical Processing

Provides excellent chemical resistance in aggressive environments like acid or alkaline transport systems.

Cement Industry

Ideal for conveying materials such as cement, clinker dust, limestone, fly ash, coal, and slag.

Oil & Gas

Applied in pipelines to resist wear and corrosion during fluid and gas transportation in harsh oilfield conditions.

Refineries

Used for fluid transport in refinery systems where long service life and corrosion resistance are critical.

Other Industries

Includes wastewater treatment, gas pipelines, and jet fuel transport — wherever durability under chemical and abrasive stress is essential.

Industries & Materials for Ceramic Sleeve Lined Pipe

Industry Transported Material
1. Abrasive ProductsGrinding wheel granules
2. Aluminium PlantsCalcined alumina, bauxite, electrode, carbon, crushed bath
3. Iron & SteelSinter dust, limestone, lime injection, coal, iron carbide, alloy additives
4. Mineral Wool & InsulationPerlite, stone dust, refractory fibers, production waste, sawing dust
5. FoundriesMolding sand, dust collection
6. Glass PlantsBatch, cullet, quartz, kaolin, feldspar
7. Breweries & Feed MillsCorn, barley, soybeans, malt, cocoa beans, sunflower seeds, rice hulls
8. Cement IndustryClinker dust, limestone, cement, fly ash, coal, blast furnace slag
9. Chemical PlantsCaustic lime, fertilizers, lime dust, chrome ore, paint pigments, plastic pellets with glass fiber
10. Mineral MiningKiln feed, ore concentrate, coal tailings, dust
11. Coal-Fired Power StationsCoal, fly ash, pyrites, slag, ash, limestone
12. Coal MinesCoal dust, mine waste for backfilling
13. Technical CarbonTechnical carbon, dust, graphite for electrodes
