High-performance metallic guards designed to protect boiler tubes from erosion and corrosion caused by flue gas, fly ash, and high-velocity particles in high-temperature environments.

Boiler erosion protection shields, also known as boiler tube shields, anti-erosion shields, or anti-corrosion shields, are engineered components designed to protect boiler tubes from the severe wear and corrosion caused by high-velocity flue gases, abrasive fly ash, and corrosive chemical reactions in industrial boiler systems. These shields are indispensable in industries such as power generation, petrochemical processing, and waste-to-energy plants, where boilers operate under extreme conditions involving high temperatures and pressures. By providing a robust protective layer, boiler erosion protection shields extend the lifespan of boiler tubes, minimize maintenance expenses, and enhance operational reliability by preventing premature tube failures.

These shields are crafted from premium materials, including stainless steel (SS304, SS316, SS309, SS310) and alloy steels (A387 P11, A387 P22), chosen for their ability to withstand harsh environments. High-performance grades like TP321 and TP310S offer superior resistance to corrosion and temperatures up to 925°C, making them ideal for demanding applications. Boiler erosion protection shields are available in various configurations—straight, inner-curve, outer-curve, side-curve, and S-curve—to accommodate diverse tube geometries, including finned tubes used in superheaters, reheaters, economizers, and water-cooled walls. The shields typically feature a semi-circular (180-degree) cross-section, with customizable wrap angles ranging from 90 to 240 degrees to meet specific operational requirements.

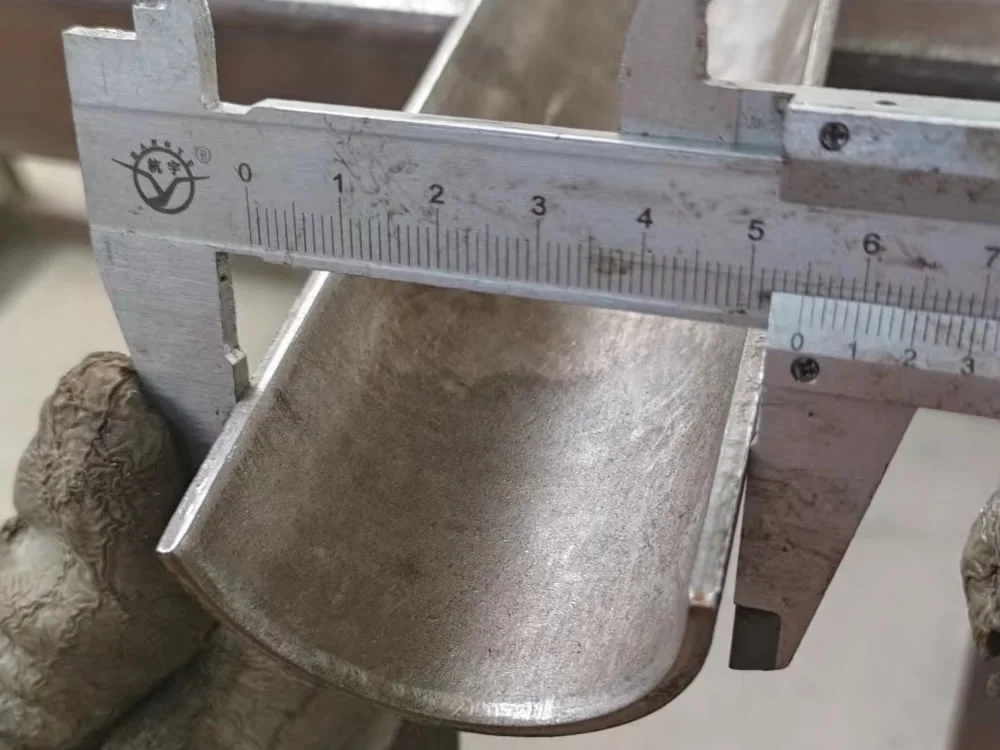

The manufacturing process for boiler erosion protection shields involves advanced techniques such as high-pressure pressing and precision mold shaping to ensure a smooth surface, excellent weldability, and a professional finish. For curved shields, specialized bending processes are employed, with technical drawings specifying parameters like tube outer diameter, bending radius, and angle. The inner diameter of the shield is designed to be 1-3mm larger than the tube’s outer diameter for a secure fit. Common tube sizes include 32mm, 38mm, 44.5mm, 57mm, and 63.5mm, with shield lengths ranging from 20mm to 3000mm, though 1000-2000mm is the most common range for industrial applications.

Boiler erosion protection shields are designed to meet critical user needs, such as reducing downtime and maintenance costs associated with tube erosion and corrosion. They are particularly effective in protecting vital boiler components in fossil fuel-fired boilers, biomass power plants, and circulating fluidized bed (CFB) boilers. Positive Material Identification (PMI) is used during production to verify material quality and compliance with industry standards, ensuring reliability in challenging environments. Excess materials are often repurposed into snap rings, promoting cost-efficiency and sustainability. For extreme conditions, shields can be enhanced with chromium carbide coatings or manufactured from exotic alloys like Inconel for superior wear and corrosion resistance.

With a typical service life of 3-5 years, depending on boiler type and operating conditions, boiler erosion protection shields offer long-term reliability. Customizable features, such as variable wrap angles and end types (straight, belled, or flared), allow for tailored solutions to specific boiler configurations. By integrating these shields into boiler systems, operators can achieve enhanced durability, reduced maintenance frequency, and improved boiler efficiency, making them a critical solution for industrial boiler protection.
