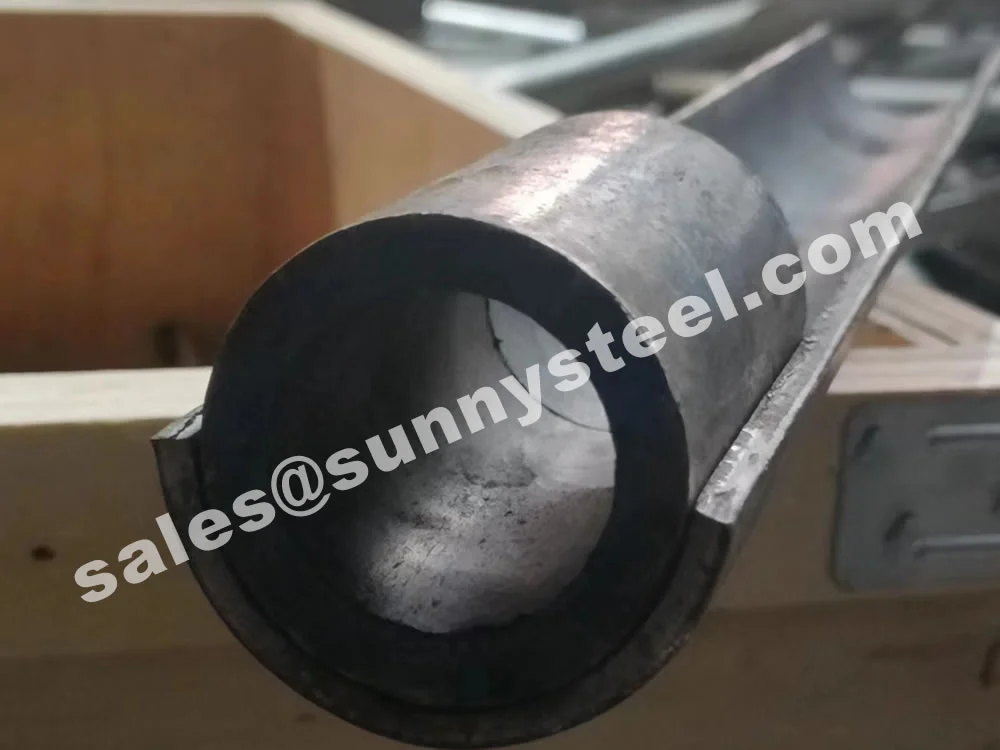

SS 309 shields, also known as boiler tube shields, anti-erosion shields, or anti-corrosion shields, are specialized components designed to protect boiler tubes from the damaging effects of erosion, corrosion, and high-temperature flue gas abrasion in industrial boiler systems. These shields are critical in industries such as power generation, petrochemical processing, and waste-to-energy plants, where boilers operate under extreme conditions involving high-pressure steam, abrasive fly ash, and corrosive chemical reactions. By providing a robust protective barrier around boiler tubes, SS 309 shields significantly extend tube lifespan, minimize maintenance expenses, and enhance operational reliability by preventing premature tube failures.

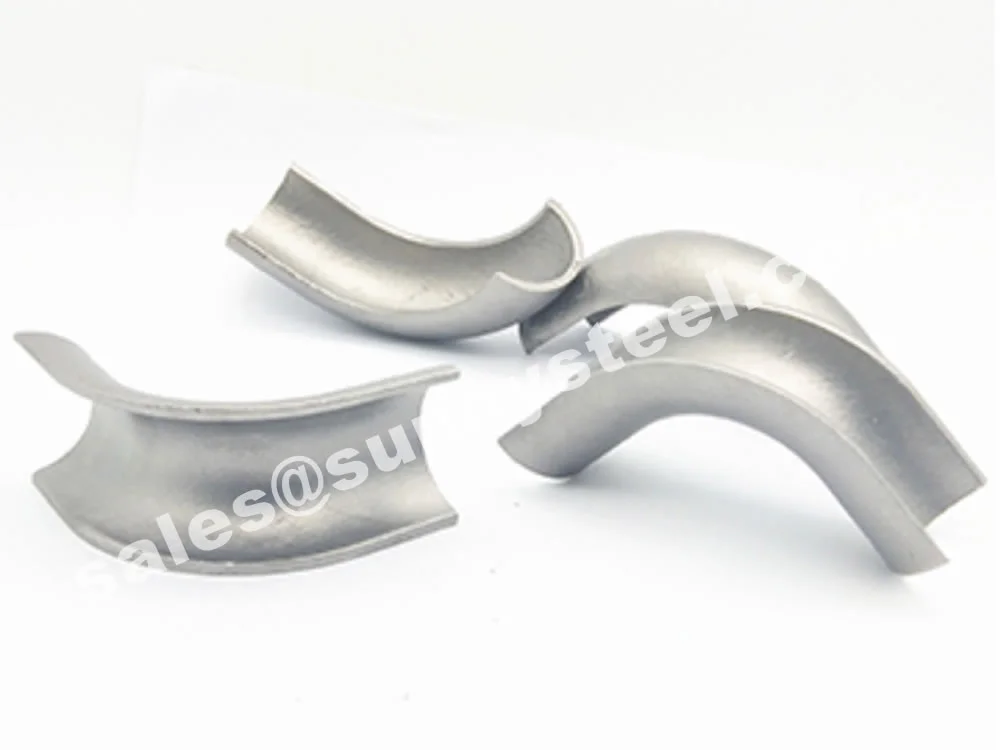

Manufactured from high-quality SS 309 stainless steel, these shields are specifically chosen for their excellent resistance to high temperatures and corrosion, making them ideal for demanding boiler environments. SS 309, a chromium-nickel stainless steel alloy, offers superior oxidation resistance and can withstand temperatures up to 925°C, ensuring durability in high-temperature applications. For even more extreme conditions, SS 309 shields can be enhanced with chromium carbide coatings or paired with other high-performance alloys like Inconel. SS 309 shields are available in various configurations—straight, inner-curve, outer-curve, side-curve, and S-curve—to accommodate diverse tube geometries, such as finned tubes used in superheaters, reheaters, economizers, and water-cooled walls. The shields typically feature a semi-circular (180-degree) cross-section, with customizable wrap angles ranging from 90 to 240 degrees to meet specific operational requirements.

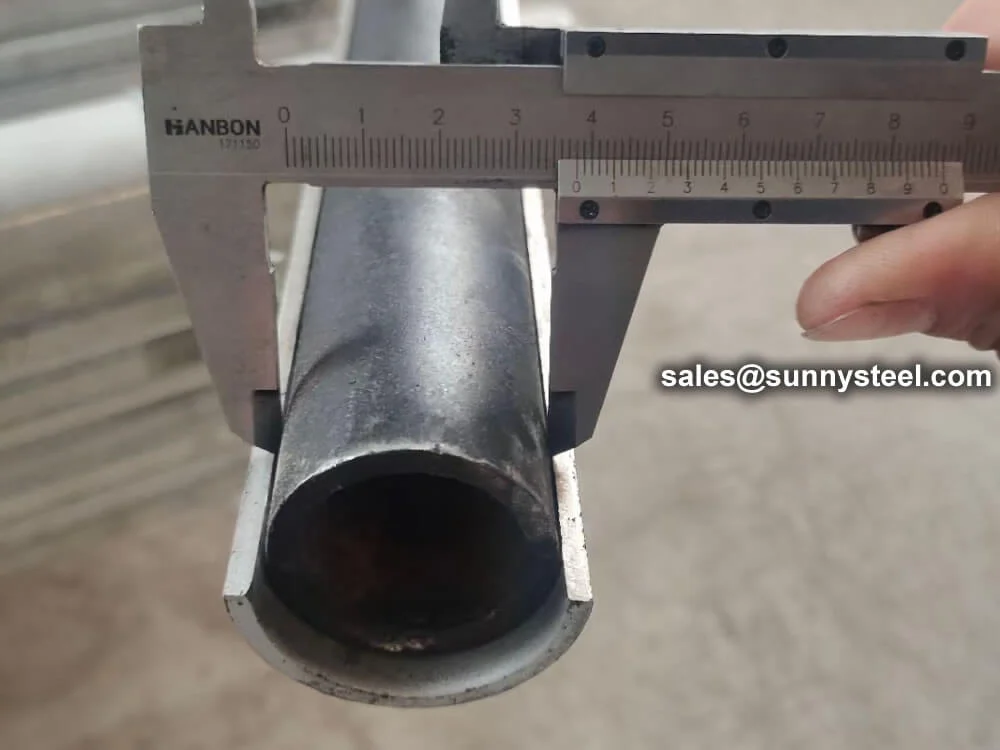

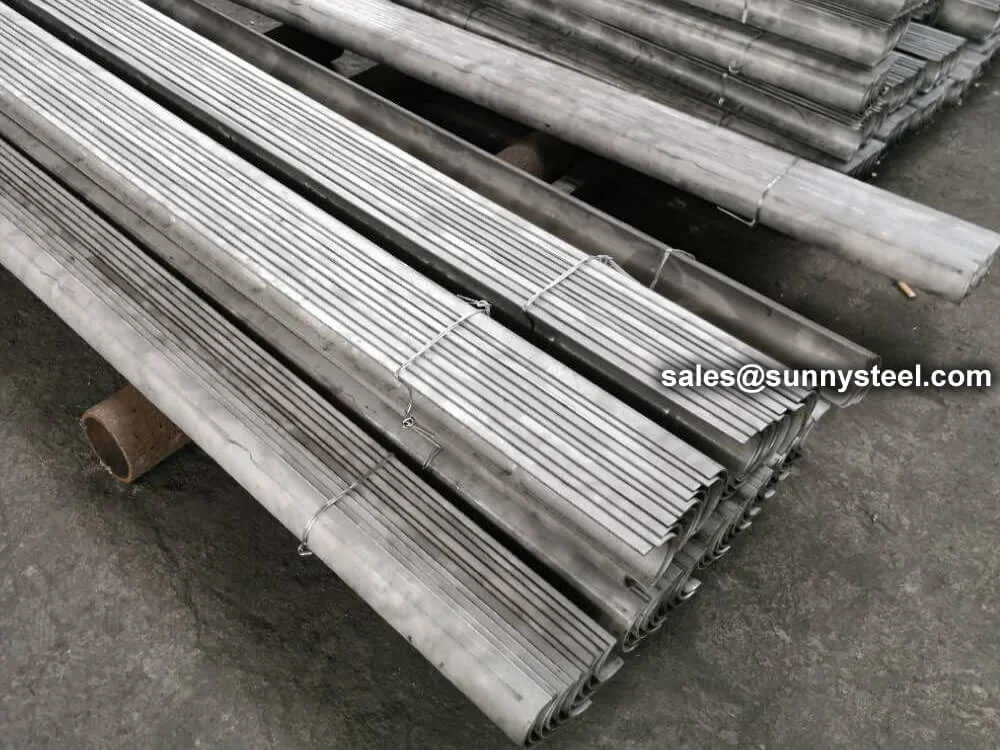

The production process for SS 309 shields employs advanced techniques, such as high-pressure pressing and precision mold shaping, to ensure a smooth surface, excellent weldability, and a professional finish. For curved shields, specialized bending processes are used, with technical drawings specifying parameters like tube outer diameter, bending radius, and angle. The inner diameter of the shield is designed to be 1-3mm larger than the tube’s outer diameter for a secure fit. Common tube sizes include 32mm, 38mm, 44.5mm, 57mm, and 63.5mm, with shield lengths ranging from 20mm to 3000mm, though 1000-2000mm is the most common range for industrial applications.

SS 309 shields are engineered to address critical user needs, such as reducing downtime and maintenance costs associated with tube erosion or corrosion. They are particularly effective in protecting vital boiler components in fossil fuel-fired boilers, biomass power plants, and circulating fluidized bed (CFB) boilers. Positive Material Identification (PMI) is utilized during production to verify the material quality and compliance with industry standards, ensuring reliability in challenging environments. Excess materials are often repurposed into snap rings, promoting cost-efficiency and sustainability.

With a typical service life of 3-5 years, depending on boiler type and operating conditions, SS 309 shields offer long-term reliability. Customizable features, such as variable wrap angles and end types (straight, belled, or flared), allow for precise adaptation to specific boiler configurations. By integrating SS 309 shields into boiler systems, operators can achieve enhanced durability, reduced maintenance frequency, and improved boiler efficiency, making them an essential solution for industrial boiler protection.

Stainless Steel 309 / 309S / 309H

Technical specifications including chemical composition, mechanical and thermal properties.

Chemical composition of grade 309 stainless steels.
Grade	C	Mn	Si	P	S	Cr	Ni	Fe
SS 309	0.20 max	2.0 max	0.75 max	0.045 max	0.030 max	22.0 – 24.0	12.0 – 15.0	Balance
SS 309S	0.08 max	2.0 max	0.75 max	0.045 max	0.030 max	22.0 – 24.0	12.0 – 15.0	Balance

Physical properties of SS 309 stainless steels.
Property	Metric	Imperial
Density	8 g/cm³	0.289 lb/in³
Melting Point	1455°C	2650°F

Physical properties of SS 309 stainless steels, including density, thermal expansion, and specific heat.

Mechanical properties of SS 309 stainless steels.
Property	Metric	Imperial
Tensile Strength	620 MPa	89,900 psi
Yield Strength (0.2%)	310 MPa	45,000 psi
Izod Impact	120–165 J	88.5–122 ft-lb
Shear Modulus	77 GPa	11,200 ksi
Elastic Modulus	200 GPa	29,008 ksi
Poisson’s Ratio	0.27 – 0.30	0.27 – 0.30
Elongation at Break	45%	45%
Hardness, Brinell	147	147
Hardness, Rockwell B	85	85
Hardness, Vickers	169	169

Thermal properties of SS 309 stainless steels.
Property	Metric	Imperial
Thermal Expansion Coefficient (0–100°C)	14.9 μm/m·°C	8.28 μin/in·°F
Thermal Conductivity (0–100°C)	15.6 W/m·K	108 BTU in/hr·ft²·°F

Equivalent standards for SS 309 stainless steels.
Standard 1	Standard 2	Standard 3	Standard 4
ASTM A167	ASME SA249	ASTM A314	ASTM A580
ASTM A249	ASME SA312	ASTM A358	FED QQ-S-763
ASTM A276	ASME SA358	ASTM A403	FED QQ-S-766
ASTM A473	ASME SA403	ASTM A409	MIL-S-862
ASTM A479	ASME SA409	ASTM A511	SAE J405 (30309)
DIN 1.4828	ASTM A312	ASTM A554	SAE 30309
