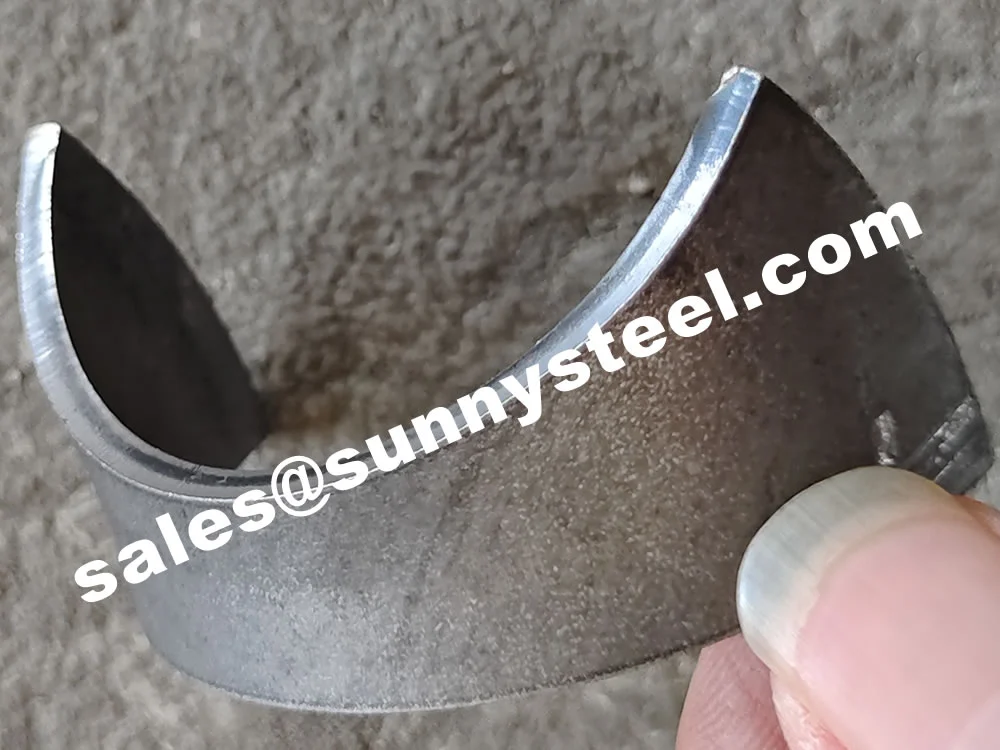

Custom Clips for Industrial Pipe Protection

Custom Clips for Industrial Pipe Protection

Boiler Tube Fasteners

Custom clips engineered for industrial pipe protection deliver durable corrosion and erosion resistance, ensuring secure fastening of boiler tube shields and extending equipment lifespan.

Custom Clips Industrial Pipe Protection Boiler Tube Fasteners Corrosion Resistant Clips +2 More

Custom Clips for Industrial Pipe Protection

Boiler Tube Fasteners

Custom clips engineered for industrial pipe protection deliver durable corrosion and erosion resistance, ensuring secure fastening of boiler tube shields and extending equipment lifespan.

Custom Clips Industrial Pipe Protection Boiler Tube Fasteners Corrosion Resistant Clips +2 More

Custom clips are specialized fastening components designed to provide tailored solutions for industrial pipe protection, particularly in boiler tubes and heat exchangers. Manufactured from premium stainless steel alloys such as 310S, 316L, and TP321, these clips exhibit superior resistance to high temperatures, corrosion, and abrasive wear. By securely fastening erosion shields and liners, custom clips help mitigate wear and corrosion caused by flue gases, ash, and particulate matter in harsh operating environments.

Custom Clips for Industrial Pipe Protection

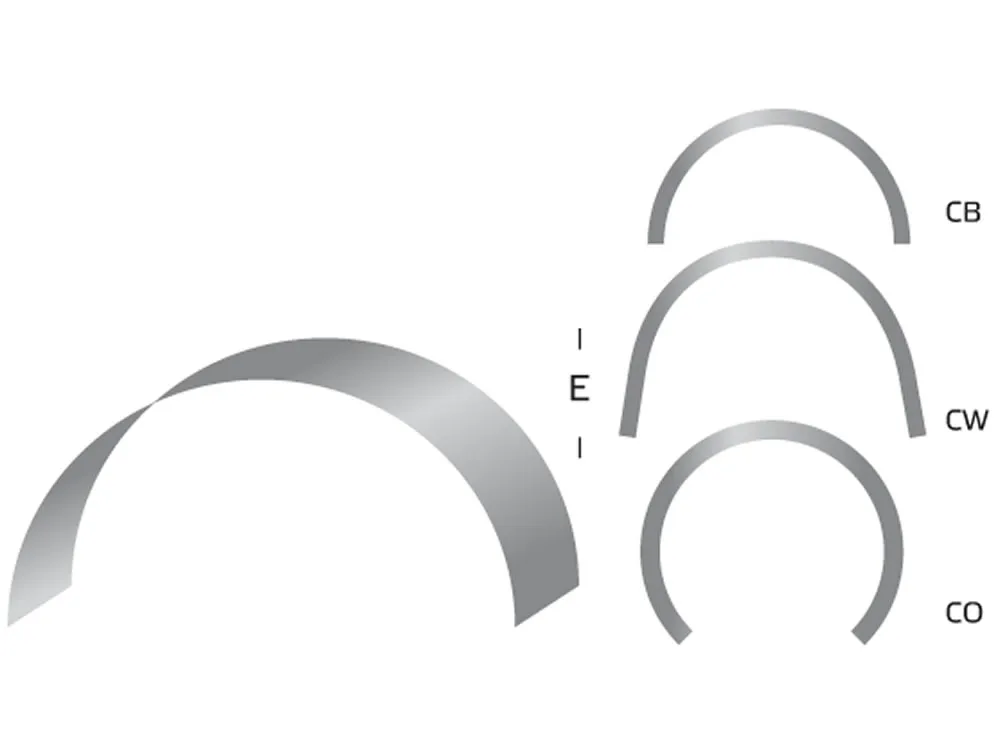

Clip Style Specifications for Tube Shields

Clip Styles
  • Bull
  • Overlap
  • Wrap
Tube Diameter

0.500” to 5.000” (Tube OD is Shield ID)

Angle of Wrap

Maximum 240°

Gauge

7 to 24

Material
  • 304 Stainless Steel (SS)
  • 316 Stainless Steel (SS)
  • 309 Stainless Steel (SS)
  • 310 Stainless Steel (SS)
  • 430 Stainless Steel (SS)
  • Inconel
Clip Length

Standard is 1”

Clip Extension (E)
  • Bull Style: 0” Standard
  • Overlap Style: 0”
  • Wrap Style: ½” Standard

The design of custom clips is highly flexible, allowing for precise adaptation to specific tube diameters, shield shapes, and installation requirements. This ensures optimal fit, maximum protection, and reduced maintenance downtime. Their ease of installation—often via spot welding or clip-on methods—adds efficiency to maintenance procedures.

Custom clips find extensive application in power plants, industrial boilers, chemical plants, and other heavy industries where pipeline longevity and reliability are critical. They are essential components in the broader strategy of industrial pipe protection, reducing failure risks and operational costs.

Tube Shields Production Process

Manufactured to exacting standards using high-pressure pressing technology

Advanced equipment and precision moulds ensure optimal welding performance, smooth surfaces, and rapid turnaround times [[2, 5]].

High-pressure tube shield pressing

Precision Pressing

Arc-shaped wear-resistant tiles are formed using specialized moulds on high-pressure presses or pipe benders [[2, 9]].

This process delivers:

  • Short production cycles
  • Durable weld seams
  • Aesthetically smooth surfaces
PMI material verification for stainless steel

Material Certification

PMI Material Verification

Positive Material Identification (PMI) testing verifies stainless steel composition before production, ensuring compliance with API 578 standards [[1, 3]].

Raw materials are sourced directly from certified steel mills with Mill Test Certificates (MTC). Excess material is repurposed into snap rings for zero-waste manufacturing [[5, 15]].

Technical Specifications

Explore detailed material grades, dimensional standards, and configuration types for stainless steel tube shields used in high-temperature boiler environments.

High-Temperature Alloy Materials

Boiler tube erosion shields are manufactured using heat- and corrosion-resistant alloys for superior durability in demanding thermal systems such as superheaters, economizers, and reheaters.

Material Grade Operating Temp Chromium (%) Nickel (%) Typical Application
SS 304 Up to 600°C 18% 8% General boiler protection
SS 316 Up to 650°C 16–18% 10–14% Corrosive steam systems
SS 309 Up to 750°C 22–24% 12–15% High-temp gas zones
SS 310S Up to 1000°C 24–26% 19–22% Extreme flue gas exposure
SS 310 Up to 1200°C 24–26% 19–22% Aggressive chemical plants
Carbon Steel Up to 1400°C 26–28% 22–25% High-temperature gas systems
Inconel 600 Up to 1200°C 15% 72% Aggressive chemical plants

Standard Dimensions & Tolerances

Tube erosion shields are precision-engineered to match a wide range of pipe diameters and curvature profiles, ensuring exact fit and reliable performance in erosive gas flows.

Specification Standard Range Common Sizes Customization
Tube Outer Diameter 32–89mm 38, 42, 48, 51, 57, 63.5, 76mm Other diameters available
Shield Length 20–3000mm 1000–2000mm As per project requirement
Shield Thickness 2–5mm 3mm, 4mm Based on wear conditions
Coverage Angle 120°–240° 180° (Semi-circular) Tailored arcs for complex bends
Shield Clearance 1–3mm 2mm typical For thermal expansion fit
Custom-fit boiler tube erosion shield with snap ring assembly

Advantages of Tube Erosion Shields

Tube erosion shields are precision-engineered to fit straight sections, tube bends, finned pipes, and other complex geometries, providing long-term protection in high-wear boiler zones.

Also known as anti-wear plates, anti-corrosion shields, boiler tube protection covers, or snap-on climbing plates, these components are typically paired with snap rings to ensure firm and efficient installation on boiler surfaces.

Each erosion shield is manufactured using a high-pressure pressing process with precision moulds. The result is a smooth surface finish, excellent weldability, and strong attachment performance without risk of separation under thermal stress.

Curved tube shields are shaped using custom tube benders or formed under pressure, making them ideal for use in elbows, U-bends, and complex heat exchanger tube paths. The shields effectively absorb erosive wear from sootblowers, high-speed flue gas, and abrasive particles.

By preventing localized thinning and cracking, these shields significantly reduce boiler downtime, extend tube life, and lower maintenance costs, especially in CFB boilers, waste heat recovery systems, and coal-fired power plants.

Boiler Tube Erosion Shield

Installation Guide

Proper installation of boiler tube erosion shields is essential for preventing wear, prolonging service life, and avoiding critical failures like boiler explosions.

Purpose of Installation

Erosion shields are installed primarily to protect the heating surfaces of boiler tubes from high-velocity flue gases and abrasive particles. They reduce wear and enhance heat transfer efficiency in high-stress environments such as CFB boilers and waste heat recovery units.

Snap Ring Attachment Method

A snap ring is used to affix the erosion shield securely to the tube surface. It typically overlaps the shield slightly—usually with a 190°–200° arc—allowing it to clamp firmly while leaving space for welding. The ring width must be no less than 20mm for adequate support.

Installation Best Practices

Each erosion shield requires 2–4 snap rings spaced at 200–500mm intervals. The rings and shield must be fully spot welded to prevent displacement from thermal expansion and vibrations during operation.

The installation procedure varies slightly for different shapes—straight, curved, or S-type. All joints must be secure, sealed, and aligned to ensure continuous protection without gaps.

Install Erosion Shields with Snap Ring
FAQ

A boiler tube shield is a protective component installed on boiler tubes to reduce erosion and corrosion caused by flue gas, ash, or particle impact in high-temperature environments.

They extend the service life of boiler tubes by protecting them from:
  • High-velocity flue gases
  • Solid particle erosion
  • Corrosive atmospheres in waste-to-energy or coal-fired plants

Common materials include:
  • Stainless steel (e.g., SS304, SS321, SS347)
  • Alloy steels (e.g., TP304H, TP347H, T91)
  • Nickel-based alloys (e.g., Inconel 625, 825) for extreme environments

  • Half-round (semi-circular) shields
  • Bent or segment shields for elbows and tube bends
  • Flat or custom-profile shields depending on installation

Custom Straight Boiler Tube Erosion Shields Installation

Boiler tube erosion shields are typically attached using the following methods:

  • Welding (tack welds or full-length)
  • Clamps or straps for removable designs
  • Snap-on/clip-on systems for fast maintenance access

Yes, slightly. Since shields add an extra metal layer, they can reduce local heat transfer. However, the trade-off is favorable because they prevent costly tube failures and unplanned shutdowns.

In some cases, yes — especially when using clamp-on types. However, shields subjected to heavy erosion or deformation should be replaced.

Yes, we accept special orders. We can manufacture custom boiler tube shields according to your technical drawings. We also ensure confidentiality through signed agreements before design submission.

Boiler tubes can suffer from several types of damage, including:
  • Corrosion
  • Embrittlement
  • Graphitization
  • Stress-corrosion cracking
  • Thermal and corrosion fatigue
  • Creep and stress rupture

Yes,
we provide custom straight boiler tube shields based on customer requirements. These can be tailored in shape, size, and material to suit specific boiler configurations.

Custom Straight Shields

Industry Applications

Boiler tubes erosion shields protect critical boiler components from wear and corrosion, ensuring durability and efficiency across multiple industries.

Power Generation

Protects boiler tubes in coal-fired, natural gas, biomass, and waste-to-energy plants from abrasive flue gases and high temperatures.

Industrial Steam

Shields tubes in petrochemical, pulp and paper, food processing, and manufacturing boilers, reducing wear and maintenance costs.

Marine & Offshore

Provides corrosion-resistant protection for marine boiler systems and offshore platform boilers in harsh, corrosive environments.

Waste Heat Recovery

Enhances tube durability in gas turbine exhausts and industrial process systems, improving energy efficiency and longevity.

Boiler Maintenance

Reduces downtime with easy-to-install shields for straight, bent, and finned tubes, ensuring long-term boiler reliability.

Specialty Applications

Custom shields for unique boiler configurations, protecting against abrasive particles and high-pressure conditions.

Industries & Applications for Boiler Tubes Erosion Shields

Industry Application
Coal-Fired Power Plants Protects superheaters, reheaters, and economizers from abrasive ash and flue gas erosion.
Natural Gas Combined Cycle Shields tubes in high-pressure boilers from wear caused by high-velocity gas flows.
Biomass Power Stations Reduces tube wear in boilers handling abrasive biomass materials like wood chips.
Waste-to-Energy Plants Protects tubes from corrosion and erosion in incineration and waste processing systems.
Petrochemical Facilities Ensures durability of boiler tubes in high-temperature, corrosive chemical environments.
Pulp and Paper Mills Shields boiler tubes from wear in steam generation systems for paper production.
Food Processing Plants Protects steam boiler tubes from wear and corrosion in hygienic processing environments.
Marine Boiler Systems Provides corrosion-resistant protection for tubes in harsh marine environments.
Offshore Platform Boilers Ensures tube longevity in remote, corrosive offshore conditions with minimal maintenance.
Heat Recovery Steam Generators Enhances tube life in systems recovering heat from gas turbine exhausts.
Industrial Process Exhausts Protects tubes in waste heat recovery systems handling variable, abrasive exhausts.
Tube Erosion Shield

Service Life

The service life of boiler tube erosion shields varies depending on boiler type and installation location.

Normally, shields last throughout one overhaul cycle (3–5 years). During major maintenance, shields are inspected and replaced if:

  • They are excessively thinned or deformed
  • They detached during operation due to poor welding
  • New areas show wear and require added protection

In sections such as superheaters and economizers, erosion shields are placed on the flue gas flow-facing side of the tubes to protect against high-temperature abrasion. Curved shields are essential for elbows and U-bends to prevent wear in circulating fluidized bed (CFB) boilers, where demand is increasing.
