Anti-erosion Dual-layer Pipeline Solution
The turbulent flow double sleeve minimizes erosion by altering high-velocity flow patterns with dual-layer sleeve construction, enhancing pipe durability in abrasive systems.
Anti-erosion Dual-layer Pipeline Solution
The turbulent flow double sleeve minimizes erosion by altering high-velocity flow patterns with dual-layer sleeve construction, enhancing pipe durability in abrasive systems.
An innovative pipeline protection solution designed to mitigate erosion caused by high-velocity or turbulent fluid flow.
Turbulent Flow Double Sleeve is a specialized erosion-resistant system utilizing a dual-layer design. The inner sleeve is precisely contoured or segmented to redirect or dissipate fluid momentum, reducing direct impact on vulnerable areas such as elbows, reducers, and flow entry zones.
The outer sleeve offers structural containment and pressure resistance, while the inner sleeve—crafted from ceramic composite, bimetallic steel, or alloy-lined steel—deflects laminar and turbulent erosive jets, disrupting harmful flow vectors before they damage the pipeline wall.
This technology is ideal for use in boiler tubes, ash transport lines, slurry pipelines, and desulfurization systems, where high-speed, particle-laden media typically accelerates wall thinning. Installing turbulent flow double sleeves significantly extends service life, minimizes unplanned shutdowns, and enhances system safety.
Inner sleeve engineered to break or redirect erosive fluid flow, reducing direct impact and wall thinning.
Combines flow-interrupting inner layer with high-strength structural outer shell for comprehensive protection.
Inner lining made from ceramic, high-chrome, or alloy steels for superior abrasion and heat resistance.
Available in straight, elbow, Y-section, and transition designs to protect flow-sensitive regions.
Designed for slurry, ash, steam, or gas conveying at speeds up to 25 m/s or more.
Dramatically reduces maintenance frequency and enhances pipeline reliability in erosive applications.
Compared to conventional systems
Maximum transport range
Extended operational lifespan
Reliable operation uptime
Turbulent Flow Double-walled Pipe represents a revolutionary advancement in pneumatic conveying technology, specifically engineered to address the critical challenges of material blockage, wear resistance, and energy efficiency in industrial bulk material transportation systems.
Intelligent air injection system automatically detects potential blockage conditions and responds with targeted air bursts to dislodge accumulated material.
Turbulent flow creates chaotic fluid movement with rapid changes in velocity and direction, resulting in superior mixing and heat transfer performance.

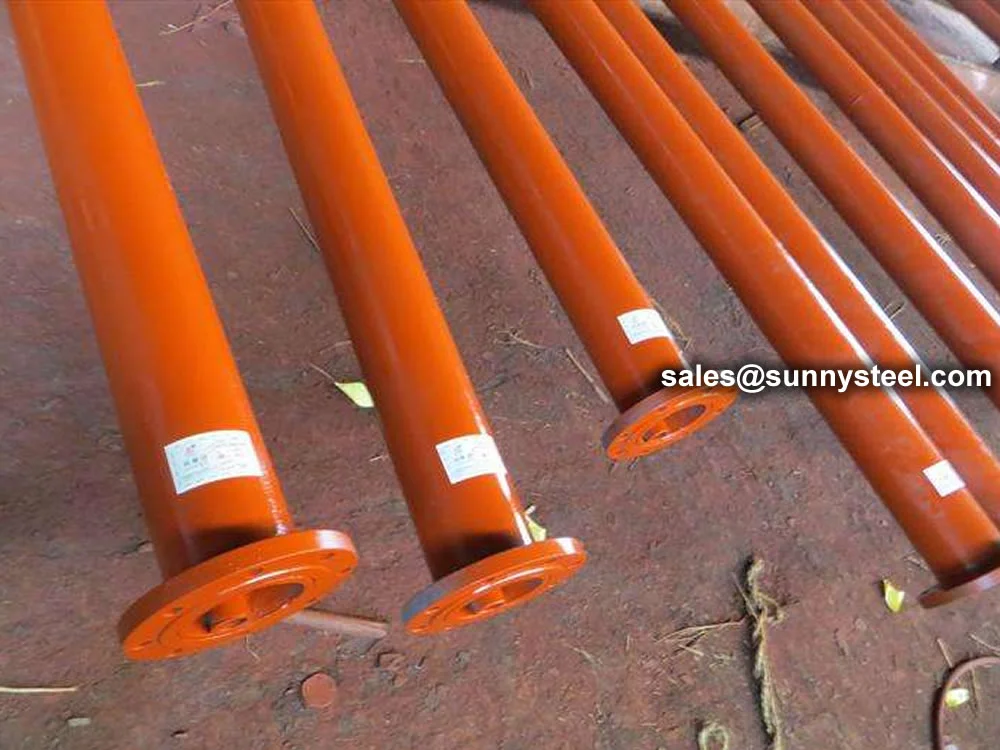

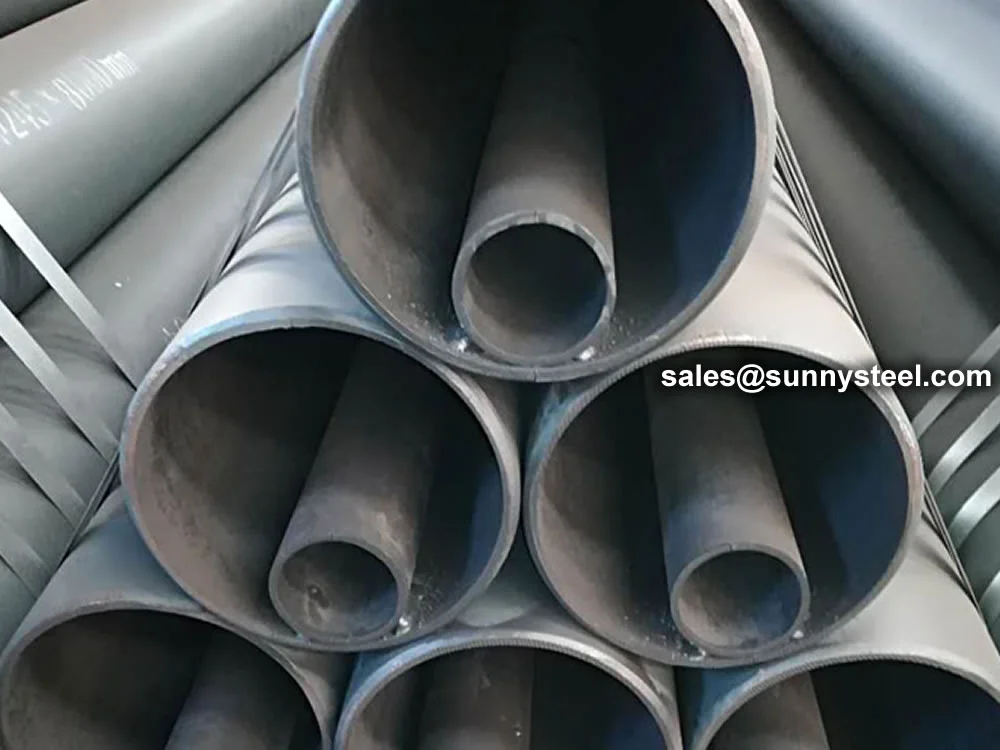

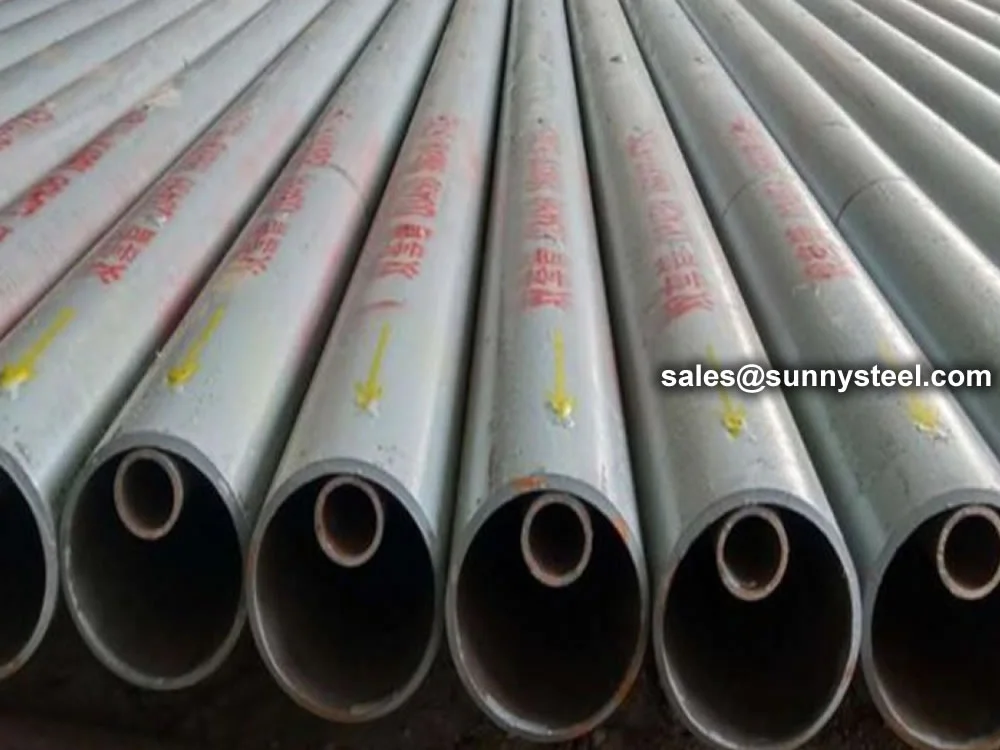

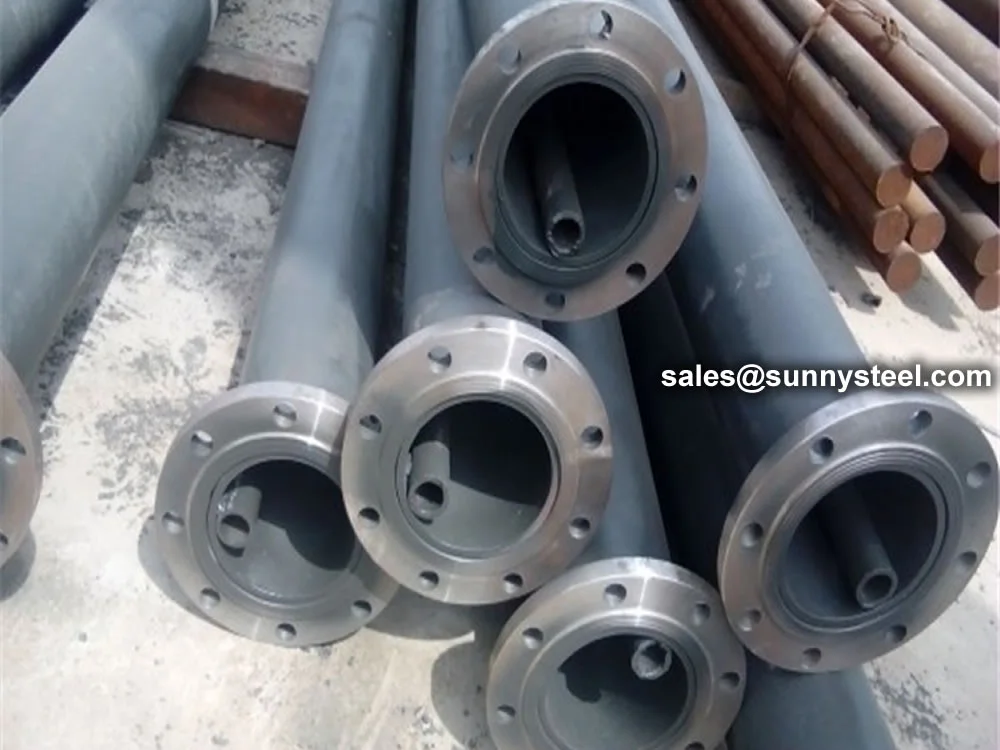

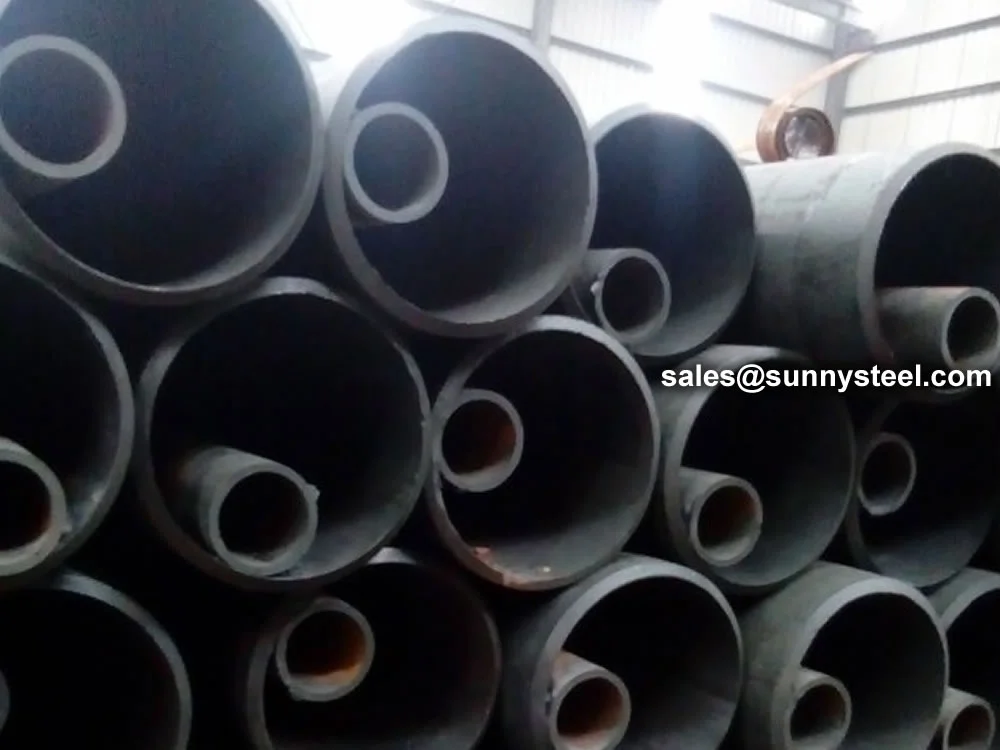

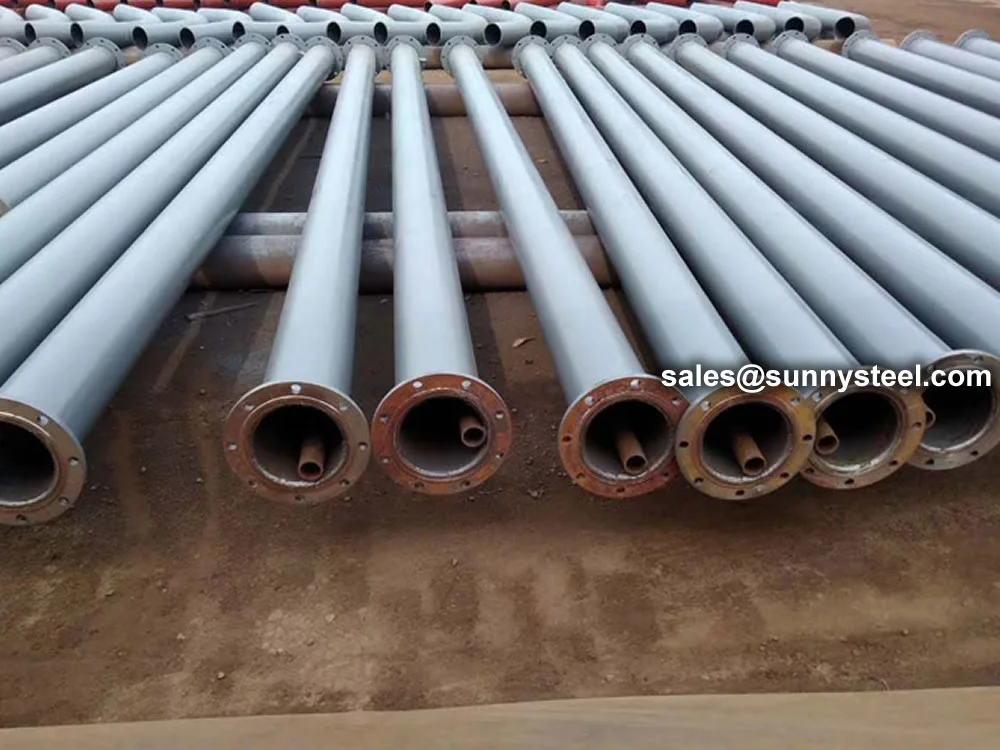

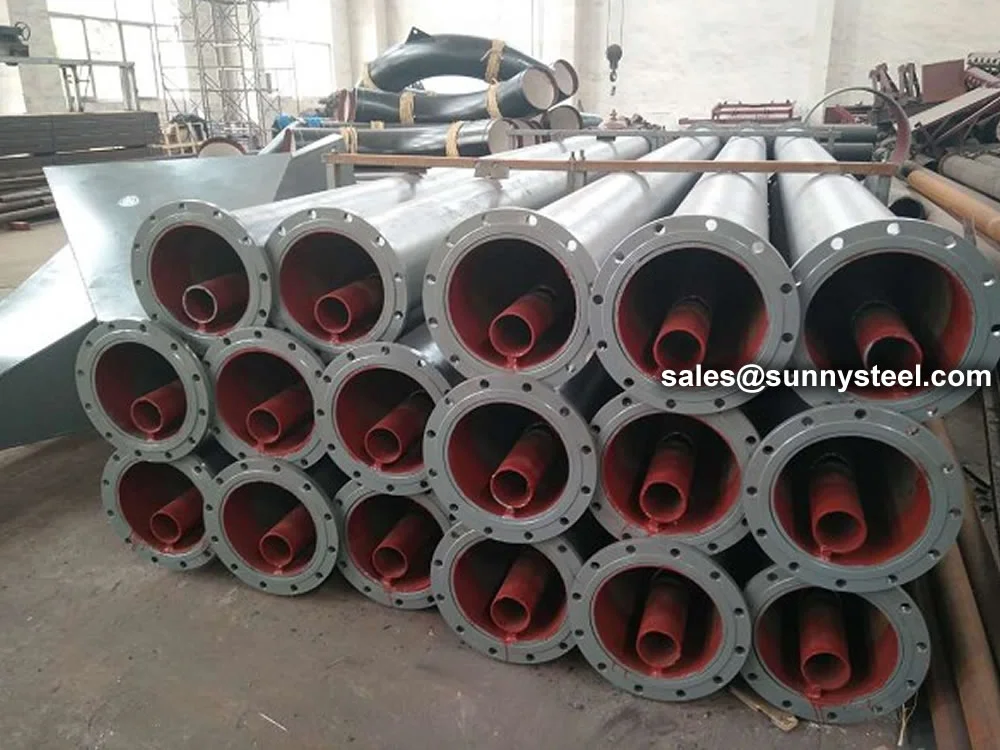

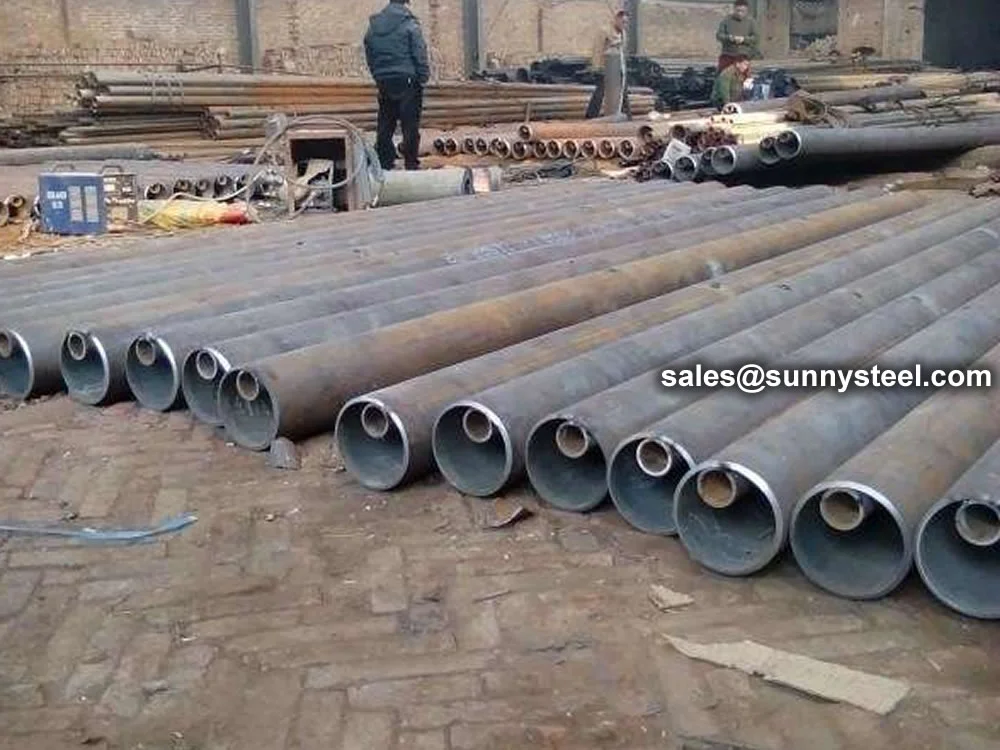

Inner auxiliary air pipe strategically positioned within the main conveying pipeline, equipped with precisely engineered nozzles and throttle orifices.
These technical specifications outline the dimensions, materials, and performance parameters of our Turbulent Flow Double-walled Pipe & Sleeve System.
| Parameter | Specification |
|---|---|
| Outer Pipe Diameter | 50mm – 300mm (2" – 12") |
| Inner Pipe Diameter | 10mm – 45mm (0.4" – 1.8") |
| Wall Thickness (Outer) | 3mm – 12mm |
| Wall Thickness (Inner) | 2mm – 6mm |
| Standard Lengths | 3m, 6m, 12m |
| Custom Lengths | Up to 18m |
| Parameter | Specification |
|---|---|
| Conveying Velocity | 2–5 m/s (starting velocity) |
| Maximum Velocity | 15 m/s |
| Solid-to-Gas Ratio | 50–100 kg/kg |
| Conveying Distance | Up to 2000+ meters |
| Operating Pressure | 0.5–6 bar gauge |
| Temperature Range | –20°C to 400°C |
| Category | Available Grades / Types |
|---|---|
| Carbon Steel | ASTM A53, ASTM A106, API 5L |
| Stainless Steel | 304, 316, 321, 347, Duplex grades |
| Alloy Steel | Chrome-Molybdenum, Inconel, Hastelloy |
| Specialized Coatings | Ceramic Lining, Polymer Coating, Rubber Lining |
30–50% reduction in energy consumption compared to conventional systems due to lower conveying velocities and higher material loading ratios.
60–80% reduction in maintenance costs due to elimination of blockage-related downtime and reduced wear rates from low-velocity operation.
10–15 years service life expectation compared to 3–5 years for conventional systems, with pipe wear rates below 0.1mm/year.
98–99.5% system availability with blockage incidents less than 0.1% of operating time, enabling continuous production.
1–3 year payback period with 35–50% IRR, providing substantial long-term value through reduced operating costs.
Start/stop capability without blockages, modular operation, and fully automated program control for enhanced operational flexibility.
Engineered for durability, our products support critical operations in energy, cement, chemical, and food sectors.
Coal handling, fly ash removal, limestone injection systems, and biomass fuel transport in power plants.
Raw material transport, cement powder handling, kiln dust collection, and finished product loading systems.
Catalyst transport, polymer powder handling, chemical intermediate transport, and hazardous material containment.
Flour transport, pharmaceutical powder handling, vitamin distribution, and nutritional supplement processing.
