Walled Pipe For Industrial Durability
Discover ceramic lined double-walled pipe: unmatched abrasion resistance and corrosion protection for industrial and boiler pipeline applications. durable, seamless, and cost-effective.

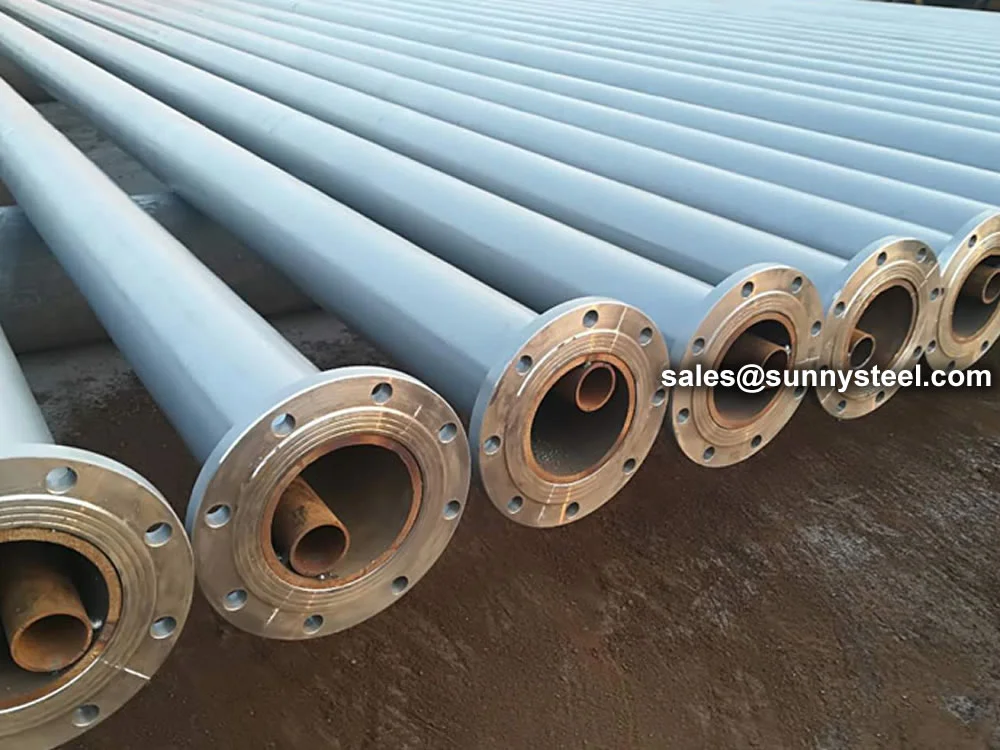

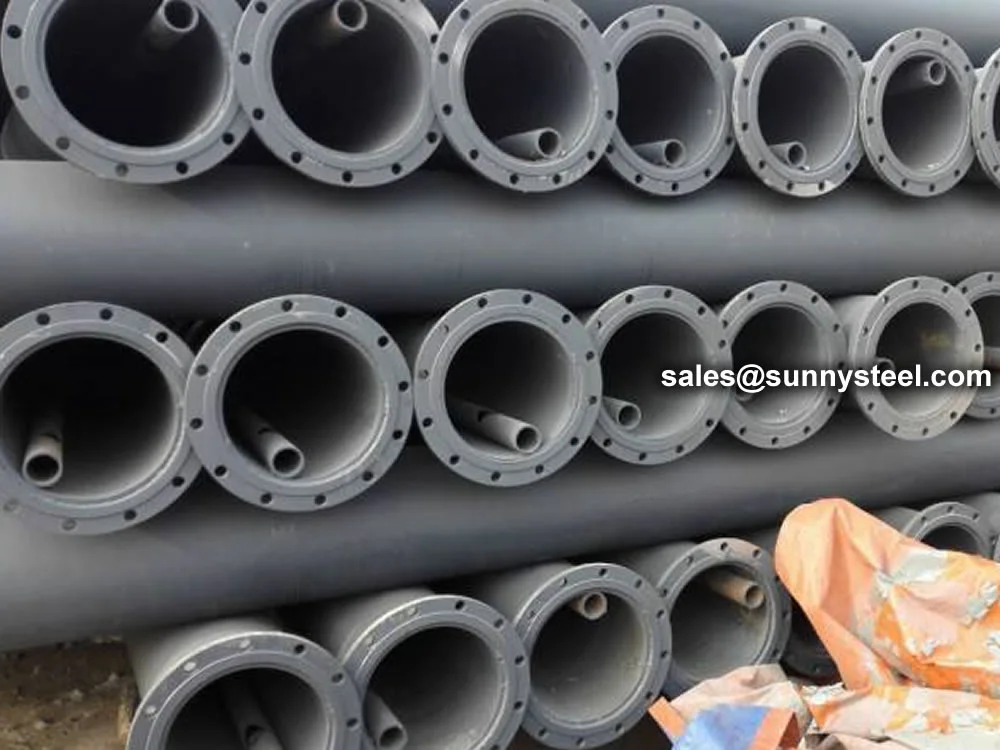

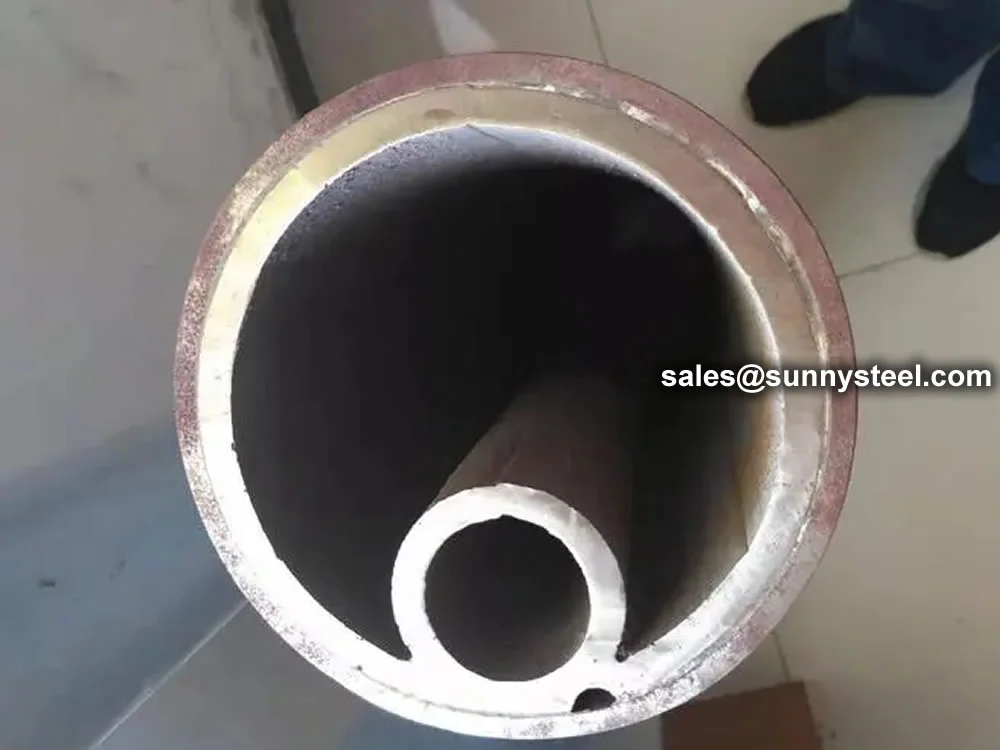

Ceramic Lined Double-walled Pipe is a type of double-walled pipe where the inner layer is lined with ceramic material for wear and corrosion resistance. This design is commonly used in industries where the conveyed material is abrasive, corrosive, or subject to high wear, and the ceramic lining provides excellent protection to the inner pipe, extending its service life. Ceramic lined double-walled pipes are commonly used in applications such as mining, cement, power generation, and chemical processing, where the transportation of abrasive materials can cause rapid wear and tear on standard pipes.
Compared to conventional systems
Maximum transport range
Extended operational lifespan
Reliable operation uptime
Turbulent Flow Double-walled Pipe represents a revolutionary advancement in pneumatic conveying technology, specifically engineered to address the critical challenges of material blockage, wear resistance, and energy efficiency in industrial bulk material transportation systems.
Intelligent air injection system automatically detects potential blockage conditions and responds with targeted air bursts to dislodge accumulated material.
Turbulent flow creates chaotic fluid movement with rapid changes in velocity and direction, resulting in superior mixing and heat transfer performance.

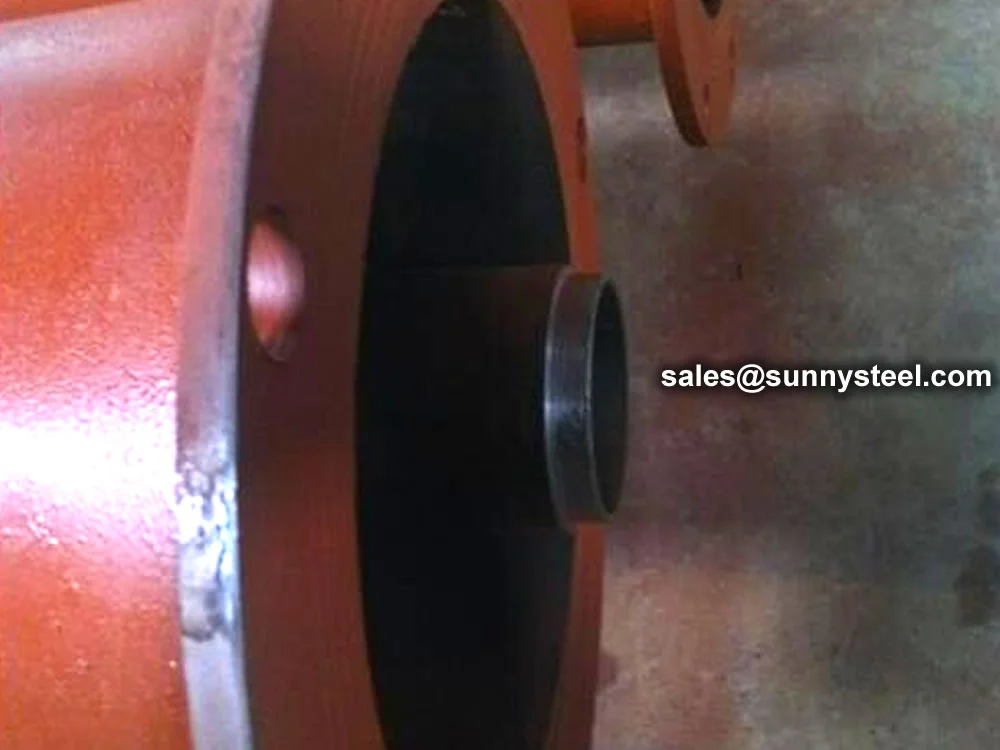

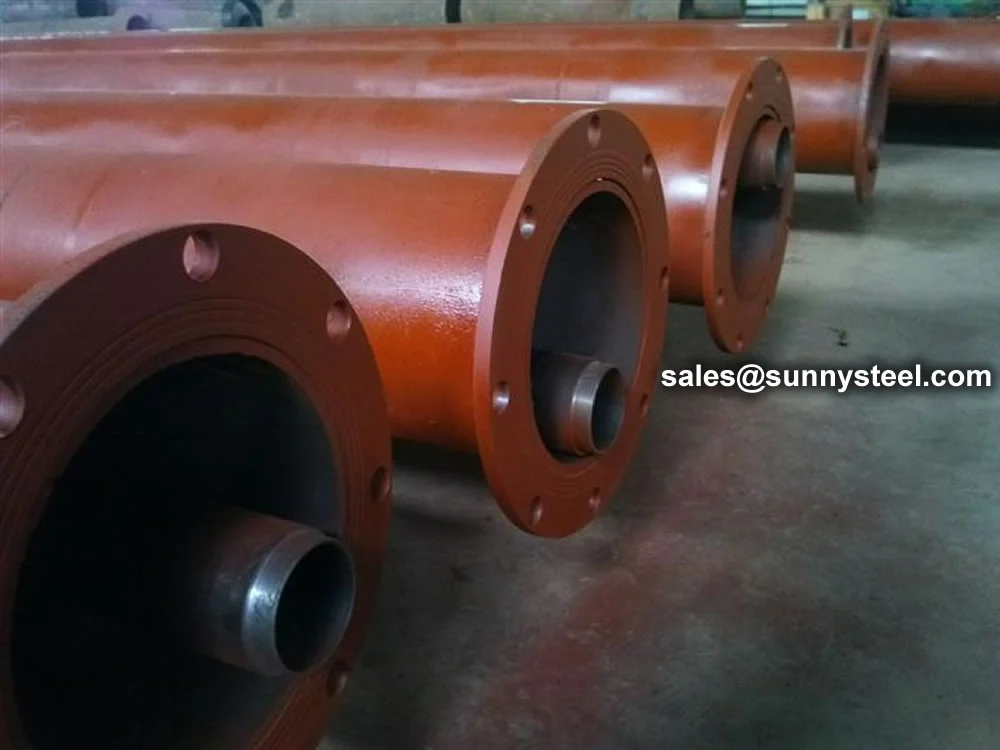

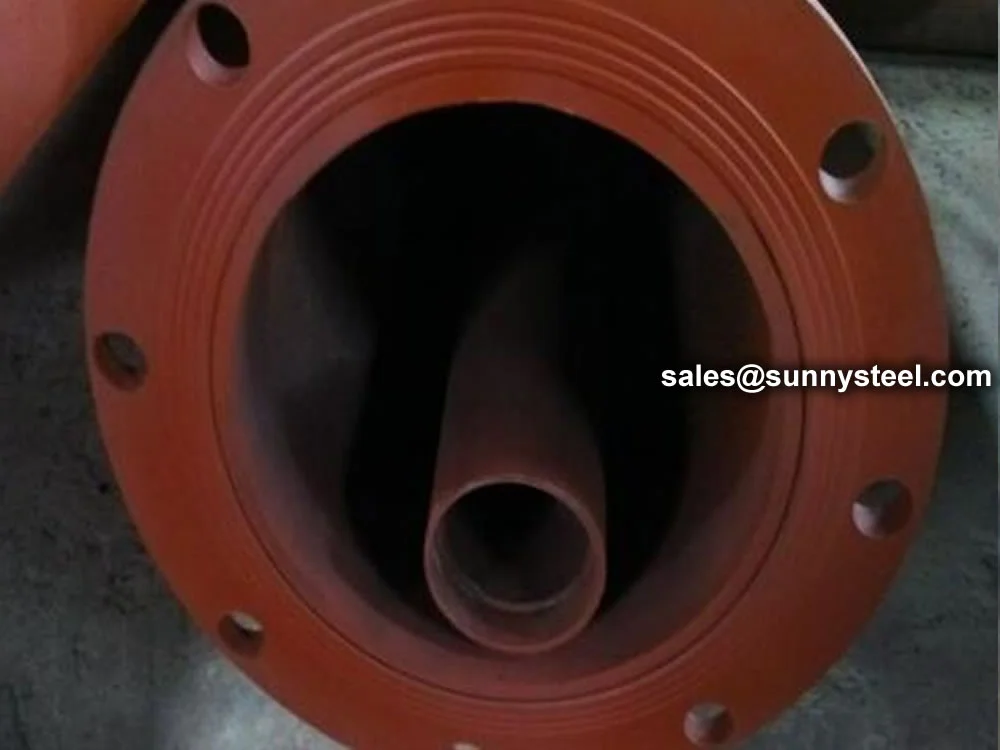

Inner auxiliary air pipe strategically positioned within the main conveying pipeline, equipped with precisely engineered nozzles and throttle orifices.
These technical specifications outline the dimensions, materials, and performance parameters of our Turbulent Flow Double-walled Pipe & Sleeve System.
| Parameter | Specification |
|---|---|
| Outer Pipe Diameter | 50mm – 300mm (2" – 12") |
| Inner Pipe Diameter | 10mm – 45mm (0.4" – 1.8") |
| Wall Thickness (Outer) | 3mm – 12mm |
| Wall Thickness (Inner) | 2mm – 6mm |
| Standard Lengths | 3m, 6m, 12m |
| Custom Lengths | Up to 18m |
| Parameter | Specification |
|---|---|
| Conveying Velocity | 2–5 m/s (starting velocity) |
| Maximum Velocity | 15 m/s |
| Solid-to-Gas Ratio | 50–100 kg/kg |
| Conveying Distance | Up to 2000+ meters |
| Operating Pressure | 0.5–6 bar gauge |
| Temperature Range | –20°C to 400°C |
| Category | Available Grades / Types |
|---|---|
| Carbon Steel | ASTM A53, ASTM A106, API 5L |
| Stainless Steel | 304, 316, 321, 347, Duplex grades |
| Alloy Steel | Chrome-Molybdenum, Inconel, Hastelloy |
| Specialized Coatings | Ceramic Lining, Polymer Coating, Rubber Lining |
30–50% reduction in energy consumption compared to conventional systems due to lower conveying velocities and higher material loading ratios.
60–80% reduction in maintenance costs due to elimination of blockage-related downtime and reduced wear rates from low-velocity operation.
10–15 years service life expectation compared to 3–5 years for conventional systems, with pipe wear rates below 0.1mm/year.
98–99.5% system availability with blockage incidents less than 0.1% of operating time, enabling continuous production.
1–3 year payback period with 35–50% IRR, providing substantial long-term value through reduced operating costs.
Start/stop capability without blockages, modular operation, and fully automated program control for enhanced operational flexibility.
Engineered for durability, our products support critical operations in energy, cement, chemical, and food sectors.
Coal handling, fly ash removal, limestone injection systems, and biomass fuel transport in power plants.
Raw material transport, cement powder handling, kiln dust collection, and finished product loading systems.
Catalyst transport, polymer powder handling, chemical intermediate transport, and hazardous material containment.
Flour transport, pharmaceutical powder handling, vitamin distribution, and nutritional supplement processing.
