Low-temperature Service
Astm a333 grade 6 pipe offers excellent toughness and impact resistance at -50°f (-45°c), ideal for lng, petrochemical, and gas processing systems. available in seamless and welded forms, it ensures reliable performance in low-temperature environments.

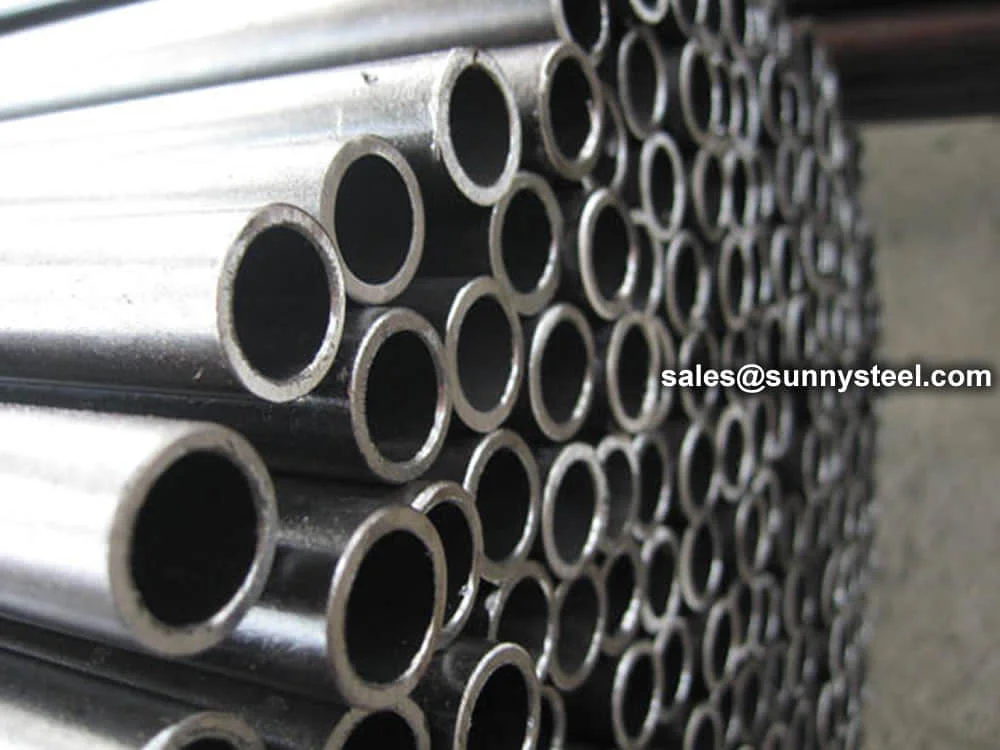

ASTM A333 Grade 6 seamless pipe is engineered for deep‑subzero environments, offering superior cryogenic toughness at –100 °C. Ideal for LNG transport, refrigerated gas pipelines, and all cryogenic pressure systems.
The pipe undergoes normalization and tempering to refine its grain structure and optimize mechanical performance. Its robust toughness, ductility, and weldability ensure high reliability in extreme cold service conditions.
Each tube meets stringent standards including Charpy V-notch testing at –100 °C, hydrostatic pressure testing, and precise dimensional inspections to guarantee structural integrity and performance.
Available in sizes from ½” to 24″ OD (DN 15–DN 600), with wall thicknesses from SCH 10 to XXS, and typical lengths up to 12 m. Ends are available plain, beveled, or threaded, and optional coatings (3LPE, varnish) are supported.
| Element | Composition (%) |
|---|---|
| Carbon (C) | ≤ 0.30 |
| Manganese (Mn) | 0.29–1.06 |
| Phosphorus (P) | ≤ 0.025 |
| Sulfur (S) | ≤ 0.025 |
| Silicon (Si) | ≥ 0.10 |
| Nickel (Ni) | ≤ 0.40 |
| Chromium (Cr) | ≤ 0.30 |
| Copper (Cu) | ≤ 0.30 |
| Property | Value |
|---|---|
| Tensile Strength | ≥ 415 MPa |
| Yield Strength | ≥ 240 MPa |
| Elongation | ≥ 30 % |
| Impact Toughness | ≥ 27 J @ –100 °C |
| Hardness | ≤ 241 HBW |
| Standard | Pipes | Buttweld Fittings | Forged Steel Fittings | Valves | Bolts and Nuts |
|---|---|---|---|---|---|
| Low Temp Carbon Steel | A333 GR6 | A420 WPL6 | ASTM A350 LF2 | A352 LCB | A320 Gr L7 / A194 Gr 7 |
The equivalent grade to ASTM A333 GR6 is often EN 10216-4 P265NL or DIN 17173 TT St 35N. These grades share similar mechanical properties and are suitable for low-temperature service applications.
ASTM A333
Low temperature pipe refers to pipes specifically designed to withstand and operate effectively in environments with low temperatures, typically below 0°C (32°F).
These pipes are often used in industries such as oil and gas, petrochemicals, and refrigeration, where fluids need to be transported or stored at low temperatures. They are constructed from materials that can maintain their mechanical properties and structural integrity even in extremely cold conditions, ensuring the safe and efficient transportation of fluids. Additionally, low temperature pipes are insulated to prevent heat transfer and maintain the desired temperature of the fluid being transported.
Compared with austenitic stainless steel and duplex stainless steel, there are many comprehensive advantages of ferrite alloy steels for low temperature service, such as higher strength, better rigidity and lower expansion coefificient. There is not only better stability but aslo higher heat transfer efficiency. Tube & pipe for low-temperature service can be widely used in low temperature engineering. ASTM/ASME A/SA-333 Grades allow for cold temperature service to minus 150 degrees F. Material is always provided in the normalized condition at a minimum and Charpy Impact tested to a specific temperature range to assure compliance with the required service temperature.
Exceptional performance at temperatures down to -45°C with superior notch toughness and impact resistance.
Fine-grain structure with uniform carbide dispersion prevents brittle fracture in cryogenic conditions.
Economical alternative to exotic materials while providing reliable low-temperature performance.
Good weldability using conventional processes with minimal post-weld heat treatment requirements.
Precise control of chemical composition using electric arc furnaces with advanced ladle metallurgy techniques. Vacuum degassing reduces hydrogen content and eliminates inclusions.
Seamless pipes manufactured using hot piercing and rolling. Welded pipes produced using ERW or SAW processes with strict welding parameter controls.
Controlled heat treatment including normalizing at 815°C (1500°F), quench and temper, or stress relief to achieve optimal microstructure and properties.
Comprehensive testing including chemical analysis, mechanical testing, Charpy V-notch impact testing, hydrostatic testing, and non-destructive examination.
ASTM A333 Grade 6 Pipe is widely used in industries requiring excellent high-temperature, high-pressure, and corrosion-resistant performance.
Used in boilers, superheaters, and steam lines in thermal and nuclear power plants.
Ideal for hydrocarbon processing, ethylene cracking, and heat exchanger units.
Used in LNG pipelines, storage tanks, and vaporization equipment for cold media.
Ensures excellent thermal conductivity and corrosion resistance in cyclic operations.
Handles high-pressure oil and gas in extraction, refining, and transportation systems.
Resists acidic and corrosive environments in reactors, scrubbers, and distillation units.
