Seamless Cold-drawn Intermediate Alloy-steel Tubes For High-temperature Applications
Astm a199 tubes offer seamless alloy steel solutions for heat exchangers and condensers, ensuring high strength and corrosion resistance in high-temperature systems.
Seamless Cold-drawn Intermediate Alloy-steel Tubes For High-temperature Applications
Astm a199 tubes offer seamless alloy steel solutions for heat exchangers and condensers, ensuring high strength and corrosion resistance in high-temperature systems.
ASTM A199 Tubes are seamless, cold-drawn, intermediate alloy-steel tubes designed for heat exchangers, condensers, and similar heat transfer equipment, offering exceptional corrosion resistance and high-temperature strength. Conforming to ASTM A199/ASME SA199 standards, these tubes are ideal for heat exchanger tubes in petrochemical, oil refining, and power generation industries. Available in grades T5, T11, and T22, they provide superior durability in environments with temperatures ranging from -100°C to 625°C.
Manufactured through a seamless cold-drawn process, ASTM A199 Tubes undergo heat treatment (e.g., annealing or normalizing) to optimize mechanical properties and creep resistance. Available in outside diameters from 1/8” to 3” (3.2 mm to 76.2 mm) and wall thicknesses from 0.015” to 0.500” (0.4 mm to 12.7 mm), these tubes meet diverse project requirements. They are subjected to rigorous testing, including flattening, flaring, hardness, and hydrostatic or nondestructive electric tests, ensuring compliance with ASTM A199 standards. The chromium-molybdenum alloy composition enhances abrasion resistance, making them suitable for seamless alloy steel tubes in harsh conditions.

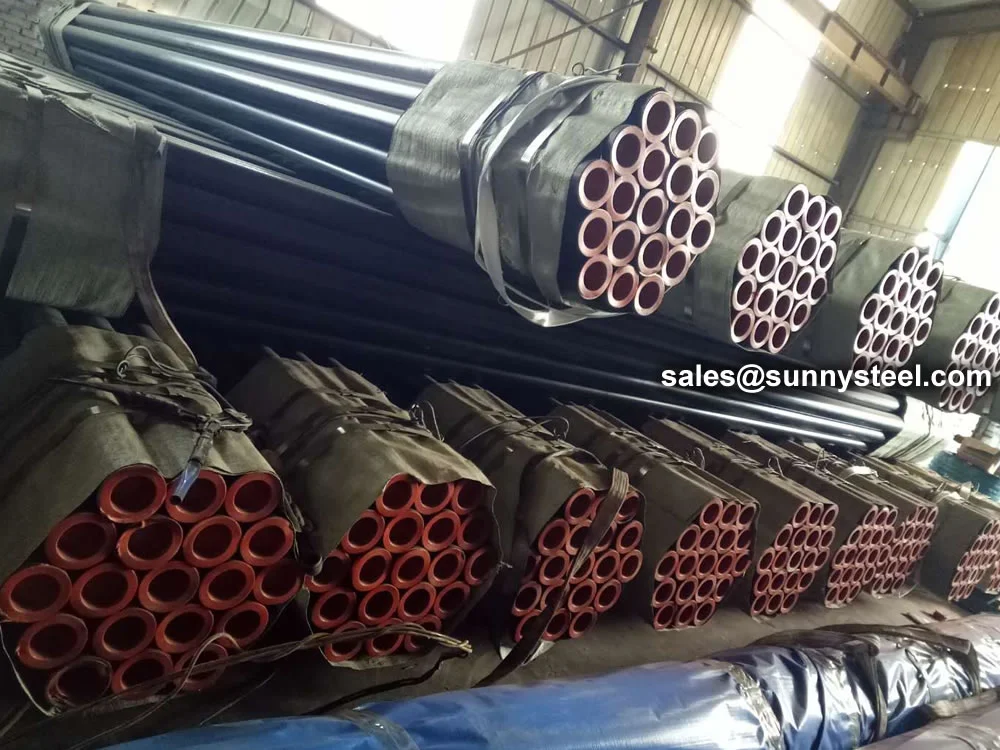

These seamless alloy steel tubes excel in high-temperature and corrosive environments due to their high tensile strength (e.g., min. 415 MPa for T5, 415 MPa for T11, 415 MPa for T22) and excellent corrosion resistance. Surface treatments like oil-dip, varnish, or shot blasting, and options for straight or U-bent configurations, support versatile installation in industrial piping systems. Packaged in wooden boxes or bundles with plastic paper, they ensure secure, sea-worthy delivery. ASTM A199 tubes are a reliable choice for engineers seeking durable condenser tubes for demanding applications.
Addressing challenges like thermal stress, corrosion, and high-pressure demands in heat transfer systems, ASTM A199 Tubes deliver exceptional performance, safety, and longevity. Their seamless design and alloyed composition make them ideal for critical applications in process industries.
Withstands temperatures up to 625°C for heat exchanger applications.
Chromium-molybdenum alloy ensures durability in corrosive environments.
Durable alloy withstands wear in demanding conditions.
Seamless construction ensures reliability under high pressure.
Supports straight or U-bent configurations for flexibility.
High durability reduces maintenance and replacement costs.
A curated list of long-tail keywords for ASTM A199 seamless cold-drawn alloy-steel heat exchanger and condenser tubes, presented in a single-column layout.
Note: ASTM A199 was withdrawn in 1995 and replaced by ASTM A200. For updated specifications, refer to ASTM A213 or A209 standards. For further details, visit the ASTM International website.
ASTM A199 specification covers several grades of ferritic steel, including Grade T5, Grade T9, Grade T11, Grade T22, and Grade T91.
| Steel grade | WT | C | Mn | P (max) |
S (max) |
Si | Cr | Mo |
|---|---|---|---|---|---|---|---|---|
| ASTM A199/T4 | MW | ≤0.15 | 0.30-0.60 | 0.03 | 0.03 | 0.50-1.00 | 2.15-2.85 | 0.44-0.65 |
| ASTM A199/T5 | MW | 0.05-0.15 | 0.30-0.60 | 0.03 | 0.03 | ≤0.50 | 4.00-6.00 | 0.45-0.65 |
| ASTM A199/T7 | MW | ≤0.15 | 0.30-0.60 | 0.03 | 0.03 | 0.50-1.00 | 6.00-8.00 | 0.45-0.65 |
| ASTM A199/T9 | MW | ≤0.15 | 0.30-0.60 | 0.03 | 0.03 | 0.25-1.00 | 8.00-10.00 | 0.90-1.10 |
| ASTM A199/T11 | MW | 0.05-0.15 | 0.30-0.60 | 0.03 | 0.03 | 0.50-1.00 | 1.00-1.50 | 0.44-0.65 |
| ASTM A199/T22 | MW | 0.05-0.15 | 0.30-0.60 | 0.03 | 0.03 | ≤0.50 | 1.90-2.60 | 0.87-1.13 |
* Ni 0.40 max; V 0.18-0.25; Cb 0.06-0.10; N 0.03-0.07; Al 0.04 max
| Steel Grade | Tensile Strength (Mpa) |
Yield Strength (Mpa) |
Elongation (%) |
Specific Requirement |
|---|---|---|---|---|
| ASTM A199/T4 | ≥ 415 | ≥ 170 | 30/22 | Hardness ≤ 85 HRB |
| ASTM A199/T5 | ≥ 415 | ≥ 170 | 30/22 | Hardness ≤ 85 HRB |
| ASTM A199/T7 | ≥ 415 | ≥ 170 | 30/22 | Hardness ≤ 85 HRB |
| ASTM A199/T9 | ≥ 415 | ≥ 170 | 30/22 | Hardness ≤ 85 HRB |
| ASTM A199/T11 | ≥ 415 | ≥ 170 | 30/22 | Hardness ≤ 85 HRB |
| ASTM A199/T22 | ≥ 415 | ≥ 170 | 30/22 | Hardness ≤ 85 HRB |
| Feature | ASTM A199 Grade T11 | ASTM A179 | ASTM A213 T11 |
|---|---|---|---|
| Material Type | Chromium-Molybdenum Alloy | Low-Carbon Steel | Chromium-Molybdenum Alloy |
| Temperature Range | -100°C to 625°C | Low to Moderate | Up to 600°C |
| Corrosion Resistance | Excellent | Moderate | Excellent |
| Applications | Heat Exchangers, Condensers | Heat Exchangers, Condensers | Boilers, Superheaters |
| Tensile Strength (MPa) | 415 (min) | 325 (min) | 415 (min) |
| Yield Strength (MPa) | 205 (min) | 180 (min) | 205 (min) |
| Key Advantage | High-temperature durability | Cost-effective for low temperatures | Enhanced creep resistance |
| ASTMSTANDARD | UNS NO. | KOREA/JAPANES | GERMAN | BRITISH | BELGIAN | FRENCH | ITALIAN | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KS/JIS Symbol | KS/JIS Numbe | Remarks | DIN Type | DINNumber | MateriralNumber | Remarks | B.SNumber | B.S Grade | Remarks | NBN Type | NBN Grade | Remarks | AFNOR Type | NF Number | Ramarks | UNI Type | UNI Number | Ramarks | ||
| T5 | K41545 | STHA 24 / STBA 25 | D3572 / G3462 | (35) | 12 CrMo 19 5 | 1.7362 | (3a) | 3606 | CFS 625 | (35) | X 12 Cr Mo 5 | 837 | (35) | Z 12 CD 5.05 | (3a) | (3); dalmine 234 | ||||
| T11 | K11597 | STHA 22 / STBA 23 | D3572 / G3462 | (35) | 13 CrMo 44 | 17175 | 1.7335 | (8) | 3606 | CFS 621 | (35) | 10 CD 5.05 | (3a) | (3); dalmine 227(10) | ||||||
| T22 | K21590 | STHA 23 / STBA 24 | D3572 / G3462 | (35) | 10 CrMo 9 10 | 17175 | 1.7380 | 3606 | CFS 622 | (35) | 10 Cr Mo 9 10 | 837 | (35) | 10 CD 9.10 | (3a) | 12CrMo 9 10 | 5462 | (10)0 | ||
ASTM A199 Tubes are widely utilized in industries requiring high-temperature resistance, corrosion resistance, and robust performance in heat exchanger and condenser systems.
Used in heat exchangers for processes like catalytic cracking, offering corrosion resistance.
Employed in condensers, ensuring seamless alloy steel tubes durability in refining processes.
Utilized in boiler systems, providing heat exchanger tubes with high-temperature strength.
Applied in heat transfer systems, leveraging abrasion resistance for corrosive fluids.
Used in gas processing plants, benefiting from high-pressure tubes performance.
Employed in high-temperature boiler systems, ensuring corrosion resistance.
