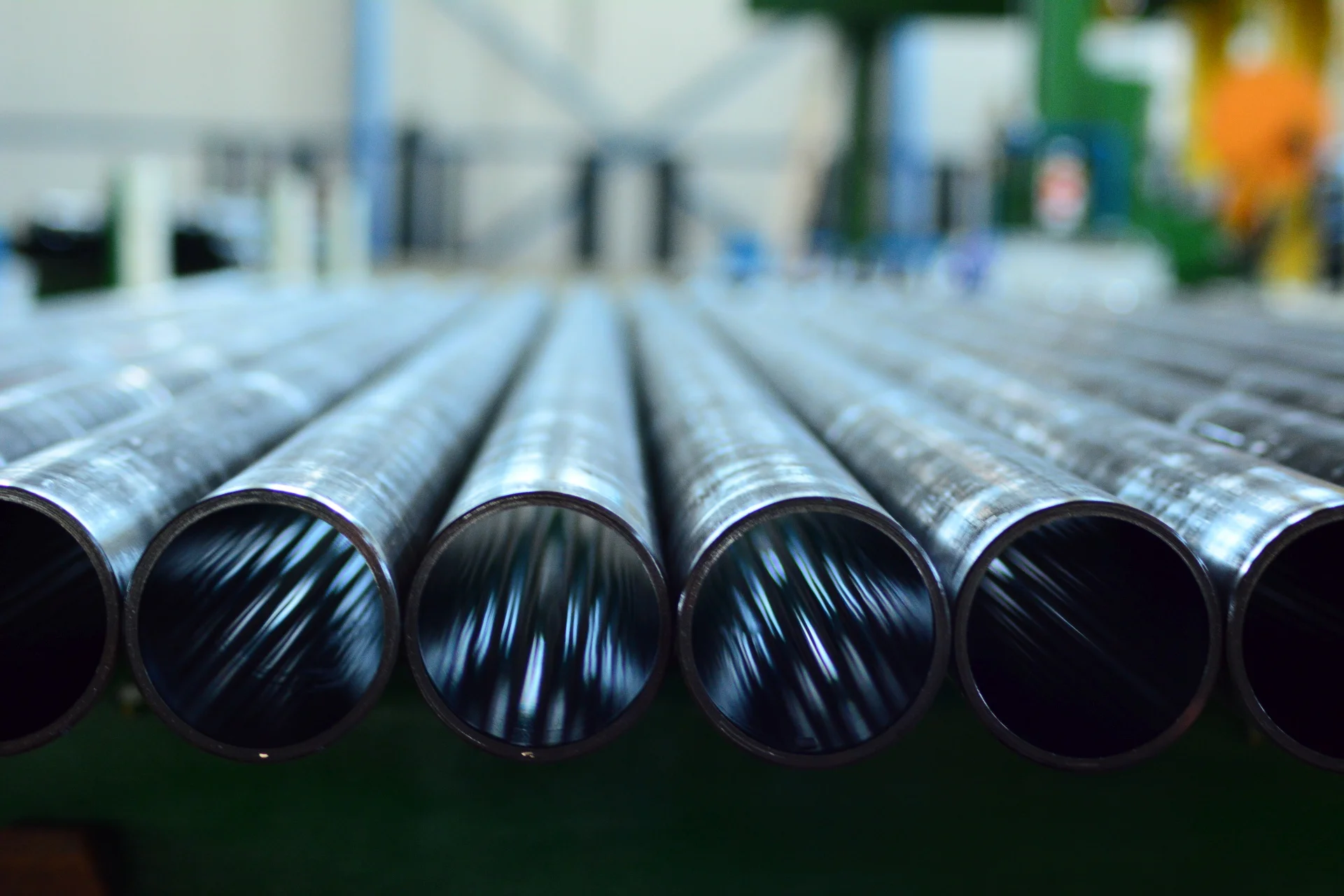

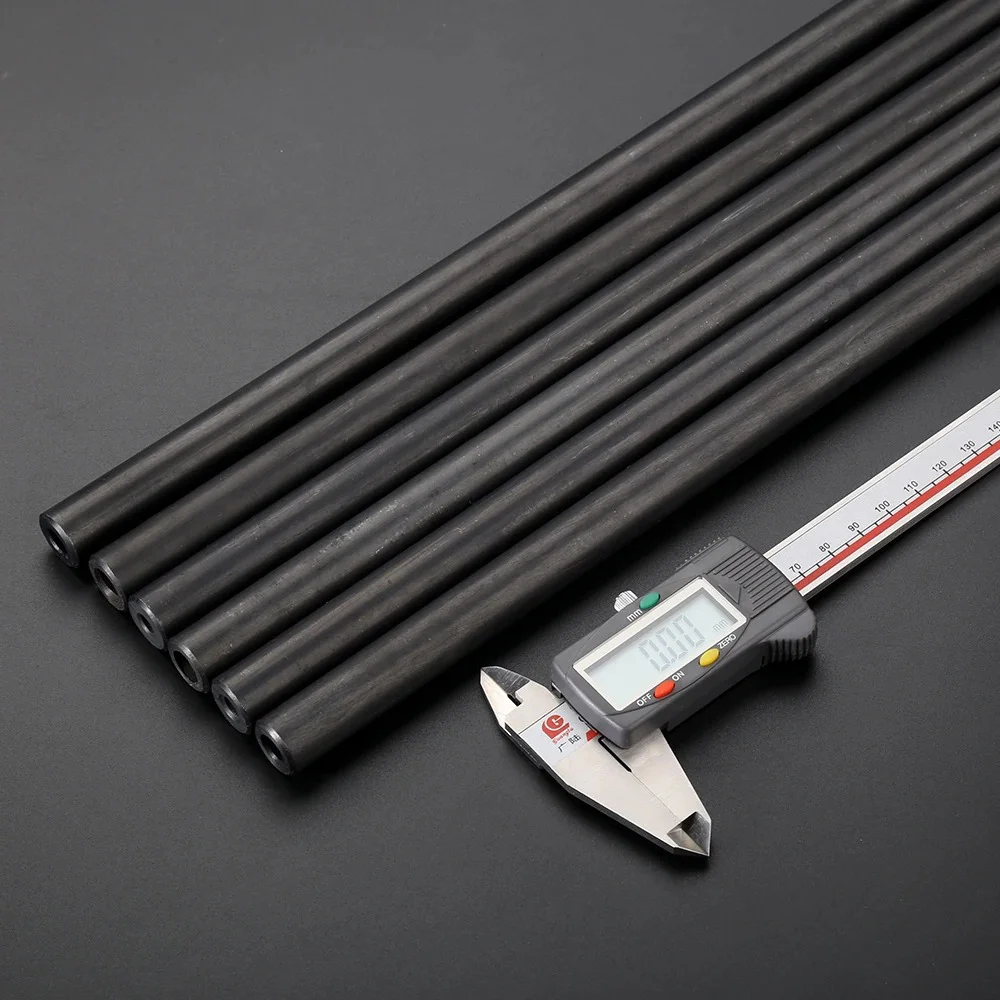

Roller-Burnished Tubes are precision-engineered steel tubes with a smooth, hardened bore, designed for hydraulic cylinder tubes and pneumatic cylinder tubes. These tubes undergo a specialized process combining skiving and roller burnishing to achieve exceptional surface finish and dimensional accuracy. Conforming to standards like DIN 2391, EN 10305-1, and ASTM A519, they offer superior durability and wear resistance, making them ideal for high-pressure applications in industries such as construction, automotive, and heavy machinery.

The roller burnishing process involves pressing hardened steel rollers against the inner surface of the tube, cold-working the material to create a mirror-like finish (Ra 0.05–0.20 µm) and improve surface hardness. This process eliminates the need for additional machining, providing ready-to-use tubes for hydraulic cylinder manufacturing. Available in various materials, including carbon steel (ST52, CK45), alloy steel (AISI 4140), and stainless steel, these tubes are tailored for diverse industrial needs.

Precision rolled tubes are often used in applications that require high-quality and precise dimensional tolerances. They are commonly used in industries such as automotive, aerospace, and medical, where accuracy and consistency are crucial. These tubes can be made from various materials including stainless steel, aluminum, copper, and brass. They can also be produced with specific mechanical properties, such as high strength or corrosion resistance, to suit the specific requirements of the application.

Frequently Asked Questions

Roller-burnished tubes are precision steel tubes that undergo skiving and roller burnishing to achieve a smooth, hardened bore for hydraulic and pneumatic cylinders.

Common materials include carbon steel (ST52, CK45, AISI 1020), alloy steel (AISI 4140, 42CrMo), and stainless steel, chosen for their strength and durability.

While both processes improve surface finish, roller burnishing uses hardened rollers to cold-work the surface, achieving a smoother finish (Ra 0.05–0.20 µm) compared to honing (Ra 0.2–0.4 µm). Roller burnishing also enhances surface hardness and fatigue life.

Precision rolled tube Standard Specifications

Chemical Composition of Precision rolled tube
Grade	C (% max)	Si (% max)	Mn (%)	P (% max)	S (% max)
ST52 (DIN 2391)	0.22	0.55	1.60	0.025	0.015
E355 (EN 10305-1)	0.22	0.55	1.60	0.025	0.015
ASTM A519 1026	0.22–0.28	0.15–0.35	0.60–0.90	0.040	0.050

Mechanical Properties of Precision rolled tube
Grade	Tensile Strength (MPa min)	Yield Strength (MPa min)	Elongation (% min)
ST52 (DIN 2391)	600	520	14
E355 (EN 10305-1)	580	450	15
ASTM A519 1026	515	350	15

Comparison of Honed Tubes with Standard Tubes
Feature	Honed Tubes	Standard Tubes
Material Type	Carbon/Alloy Steel (ST52, E355)	Carbon Steel
Surface Finish	Ra ≤0.4 µm (Honed/SR-B)	Ra ≥1.0 µm
Tolerance	H7–H9	H11 or lower
Tensile Strength (MPa)	515–600	400–500
Applications	Hydraulic/Pneumatic Cylinders	General Piping
Cost	Higher (precision processing)	Lower
Key Advantage	Precision bore, extended seal life	Cost-effective for non-precision uses

H-Series Hole Tolerances (H7, H8, H9, H10) by Diameter Range (mm)
ID (mm)	TOLERANCE (mm)
ID (mm)	H7	H8	H9	H10
≦30	+0.021/0	+0.033/0	+0.052/0	+0.084/0
30 – ≦50	+0.025/0	+0.039/0	+0.062/0	+0.100/0
50 – ≦80	+0.030/0	+0.046/0	+0.074/0	+0.120/0
80 – ≦120	+0.035/0	+0.054/0	+0.087/0	+0.140/0
120 – ≦180	+0.040/0	+0.063/0	+0.100/0	+0.160/0
180 – ≦250	+0.046/0	+0.072/0	+0.115/0	+0.185/0
250 – ≦315	+0.052/0	+0.081/0	+0.130/0	+0.210/0
315 – ≦700	+0.057/0	+0.089/0	+0.140/0	+0.230/0

This will provide long piston seal life and prevent failure of the cylinder. The tube material is selected on the basis of application & working pressure.

The seamless tube for hydraulic cylinders, obtained from high quality cold drawn tubes, available in a wide dimensional range.

Length: unfixed length or fixed length
Package: banding with steel strips, braiding parcel at outside
Conservation: Anti rust oiled coating on the inside and outside of the surface, plastic caps at both ends.

Manufacturing Process

Raw Material Selection

Select round bars of suitable size that meet the required standards as raw material bars for processing.

Billeting

Process the steel round bar through free forging and heat treatment.

Straightening

Use a forging hammer to straighten the treated raw material bar.

Making Mother Tubes

Produce seamless mother pipes from the round bars using hot rolling, hot extrusion, or hot piercing.

Cold Drawing

Cold draw the mother pipe to create cold-drawn seamless tubes (CDS tubes) and prepare pre-honed tubes.

Honing Inner Diameter

The honing process, a form of grinding and a finishing method, enhances surface finish and wear resistance with high productivity and machining accuracy.

Surface Finishing (NBK)

Apply NBK finish, phosphate-coating and normalizing the tubes for corrosion resistance, followed by oiling inside and outside.

Normalizing Process

Heat metals at a high temperature and allow them to cool naturally to room temperature, creating a tougher, more formable, harder, and ductile product.

Inspection and Packing

Inspect the finished honed tubes according to customer requirements and standards, ensuring compliance with size, accuracy, mechanical properties, and chemical composition.

You Can Also Search Honed Tubes by

Explore honed tubes with targeted long-tail keywords, covering specifications, applications, and manufacturing for hydraulic and pneumatic systems.

Standards and Specifications

• Honed tubes specifications
• DIN 2391 honed tube standards
• EN 10305-1 precision tube requirements
• ASTM A519 honed tubes certification

Applications

• Honed tubes for hydraulic cylinders
• Precision tubes for construction machinery
• Seamless honed tubes for automotive
• Pneumatic cylinder tubes applications

Material and Grades

• ST52 honed tube material
• E355 precision honed tubes
• ASTM A519 1026 tube composition
• Honed tubes mechanical properties

Manufacturing and Testing

• Honed tubes manufacturing process
• Precision honed tubes quality testing
• Seamless honed tubes surface treatment
• Honed tubes dimensional tolerances

Note: Honed tubes are precision-engineered for hydraulic and pneumatic systems, meeting DIN 2391, EN 10305-1, and ASTM A519 standards. Contact suppliers for detailed specifications.

Honed tubes are seamless steel tubes with a precision-honed or skived and roller-burnished bore, designed for hydraulic and pneumatic cylinders in industrial applications.

The most popular material for honed tubes is carbon steel grade SAE 1020. Other common materials include SAE 1026, E355, ST52.3, stainless steel, and alloy steels like AISI 4140 and 42CrMo, depending on application requirements.

Honed tubes are available in a wide range of sizes.
Typical inner diameters range from 32 mm to 600 mm (metric) or 1 inch to over 10 inches (imperial), with lengths up to 14–16 meters. Non-standard sizes can be custom-manufactured to meet specific project needs, such as precise tolerances or unique end treatments for assembly.

Honed tubes are used in hydraulic and pneumatic cylinders for applications such as construction machinery (e.g., excavators), automotive components (e.g., shock absorbers), industrial equipment (e.g., injection molding machines), automation systems, agricultural machinery, oil and gas, aerospace, and marine systems. Stainless steel honed tubes are also used in food and pharmaceutical industries for hygiene and corrosion resistance.

Honed tubes provide a smooth, precise internal surface (Ra 0.2–0.4 µm) that reduces friction and wear, enhances seal compatibility, and ensures leak-free performance in hydraulic and pneumatic cylinders. Made from high-strength materials, they offer durability and pressure resistance, with customizable sizes to meet diverse design needs.

Honed tubes are produced through: 1. **Raw Material Selection**: High-quality round steel bars (e.g., ST52, CK45). 2. **Billeting**: Forging and heat treatment of the steel. 3. **Straightening**: Correcting the bar’s shape. 4. **Mother Tube Production**: Hot rolling, extrusion, or piercing to form seamless pipes. 5. **Cold Drawing**: Reducing size and improving surface quality. 6. **Honing**: Using abrasive stones to achieve precise ID and surface finish (Ra 0.2–0.4 µm). 7. **Inspection and Packaging**: Ensuring quality standards, followed by phosphating and oiling for corrosion resistance.

Dimensional checks, surface roughness tests, hydrostatic tests, and nondestructive testing (ultrasonic or eddy current) ensure quality and compliance with standards like DIN 2391 and ASTM A519.

The most popular material of our honed tubes is carbon steel grade SAE 1020.
And we also produce honed cylinder tubes in other materials such as SAE 1026, E355 and ST52.3, stainless steel and so on.

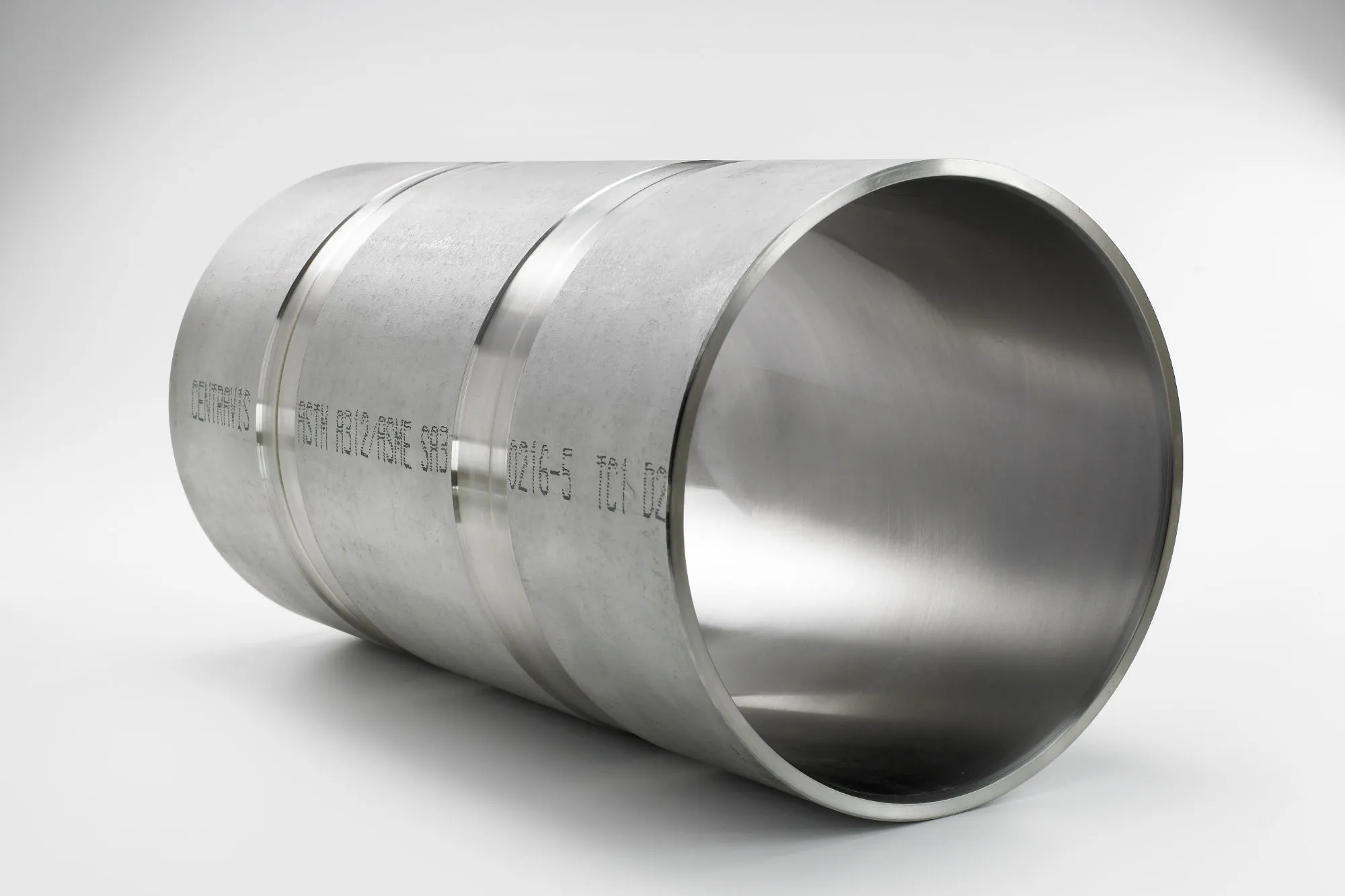

The tube size e quality of steel required for the project were not standard, so it had been necessary not only to manufacture the tube on customer’s specification, starting from a specific raw material tube but also to plan a peculiar manufacturing process.

For example, also both left ends had been treated in order to let the assembly of the piece. It has to be stressed the importance of honing the left ends and the roundesses where the O-Ring is allocated since they impact dramatically on the system performance.

Industrial Applications

Honed tubes, characterized by their precisely machined inner surface, are essential components in various industrial applications where high accuracy and surface finish are crucial. They are used in hydraulic and pneumatic cylinders, offering precision and durability in construction, automotive, and industrial machinery applications.

Hydraulic Cylinders

They are a primary component in hydraulic cylinders, providing precise control and power in various applications.

Automotive Industry

Supports hydraulic systems in heavy vehicles and suspension systems.

Industrial Machinery

Used in injection molding and press machines for precision operation.

Automation Systems

Powers pneumatic cylinders in robotic and automated equipment.

Pneumatic Cylinders

Used in hydraulic systems for tractors and harvesters, providing precise control and power.

Aerospace & Marine

Supports hydraulic systems in marine equipment and vessels.

Why Honed Tubes? These tubes, made from high-quality seamless steel (e.g., ST52, E355), offer precision bore and corrosion resistance, ensuring reliable performance in high-pressure hydraulic and pneumatic systems.
