Corrosion-resistant And Space-efficient Tubing Solutions
Flat oval pipes offer corrosion resistance and aesthetic appeal for architectural, automotive, and industrial applications.
Corrosion-resistant And Space-efficient Tubing Solutions
Flat oval pipes offer corrosion resistance and aesthetic appeal for architectural, automotive, and industrial applications.
Flat Oval Pipes are stainless steel tubes with a flattened elliptical cross-section, designed for applications requiring both functionality and aesthetic appeal. Compliant with standards like ASTM A554, A269, and A312, these pipes are typically made from austenitic stainless steel grades such as 304 and 316, offering tensile strengths of 485–515 MPa and excellent corrosion resistance. They are ideal for architectural railings, automotive trim, and furniture design.
Manufactured through seamless or welded processes, such as TIG or laser welding, Flat Oval Pipes are available in sizes with outer diameters from 10 mm to 100 mm and wall thicknesses from 0.5 to 2.0 mm. Surface finishes like polished, brushed, or mirror enhance their aesthetic appeal and corrosion-resistant flat oval pipes for use in marine structures and heat exchangers. Standard lengths range from 5.8 to 12 meters, with customization available for specific project needs.
Rigorous testing, including tensile, flattening, and corrosion tests, ensures compliance with international standards. The high chromium (16–20%) and molybdenum (2–3% in 316 grades) content provides superior resistance to pitting and crevice corrosion, making Flat Oval Pipes suitable for harsh environments like marine and chemical processing. Their flattened shape offers space efficiency and directional strength, ideal for aerospace components and tight-space installations.
Compared to round or standard oval pipes, Flat Oval Pipes provide enhanced aesthetic appeal and better fit in confined spaces, though they may have slightly lower pressure resistance. Their versatility, low maintenance, and biocompatibility make them a preferred choice for hygienic and decorative applications, balancing performance and cost-effectiveness.
Flat Oval Pipes address challenges like corrosion, space constraints, and aesthetic requirements, delivering reliable, high-performance solutions for diverse industrial and decorative applications.

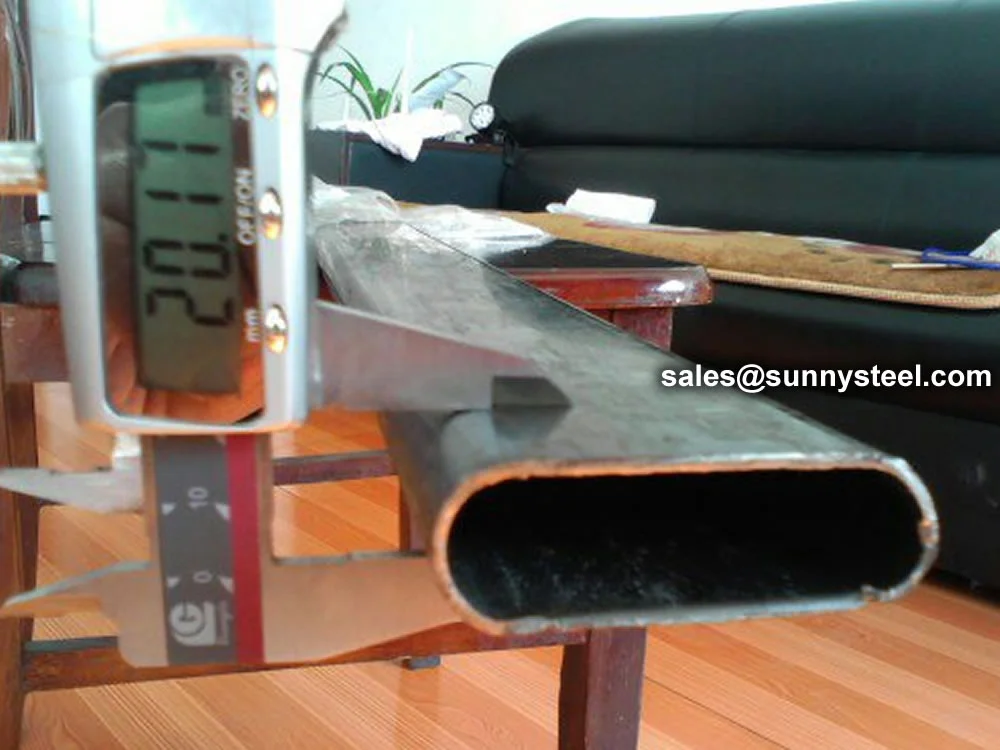

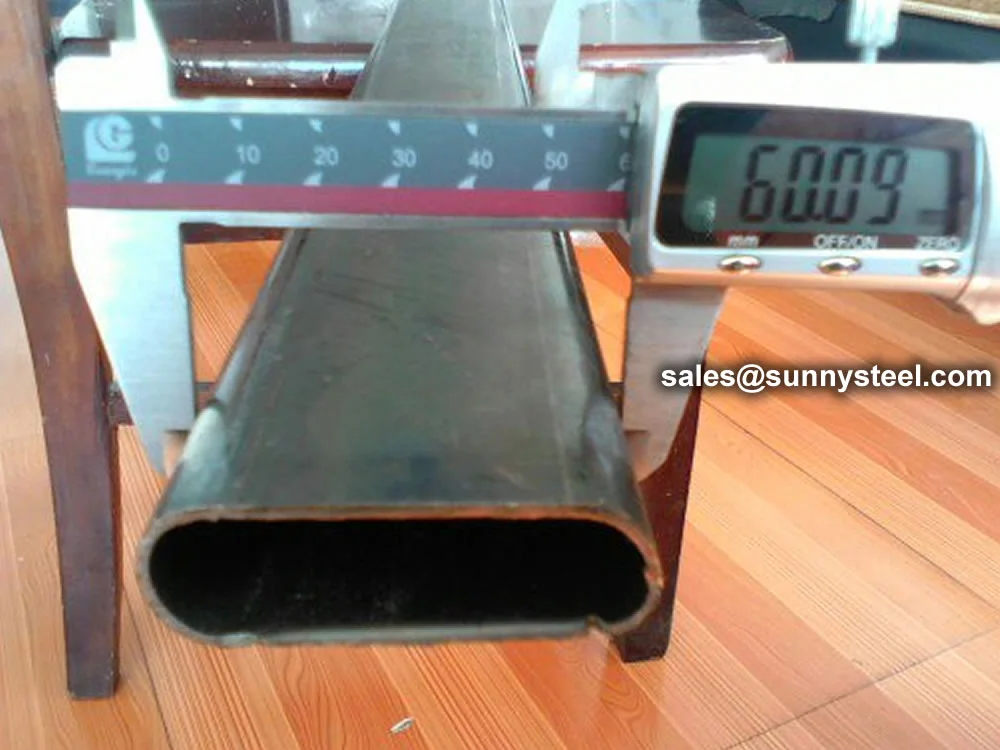

Flat Oval pipes are mainly produced with a diameter of 1,0 - 3,0 mm.
| a | b | d | length in mm | material |
|---|---|---|---|---|
| 30,0 | 15,0 | 1,5 | 6.000 | 1.4301 |
| 30,0 | 17,0 | 1,5 | 6.000 | 1.4301 |
| 35,0 | 15,0 | 1,5 | 6.000 | 1.4301 |
| 40,0 | 20,0 | 1,5 | 6.000 | 1.4301 |
| 48,0 | 20,0 | 1,5 | 6.000 | 1.4301 |
| 56,5 | 29,8 | 1,5 | 6.000 | 1.4301 |
| 60,0 | 20,0 | 1,5 | 6.000 | 1.4301 |
| 60,0 | 32,0 | 2,0 | 6.000 | 1.4301 |

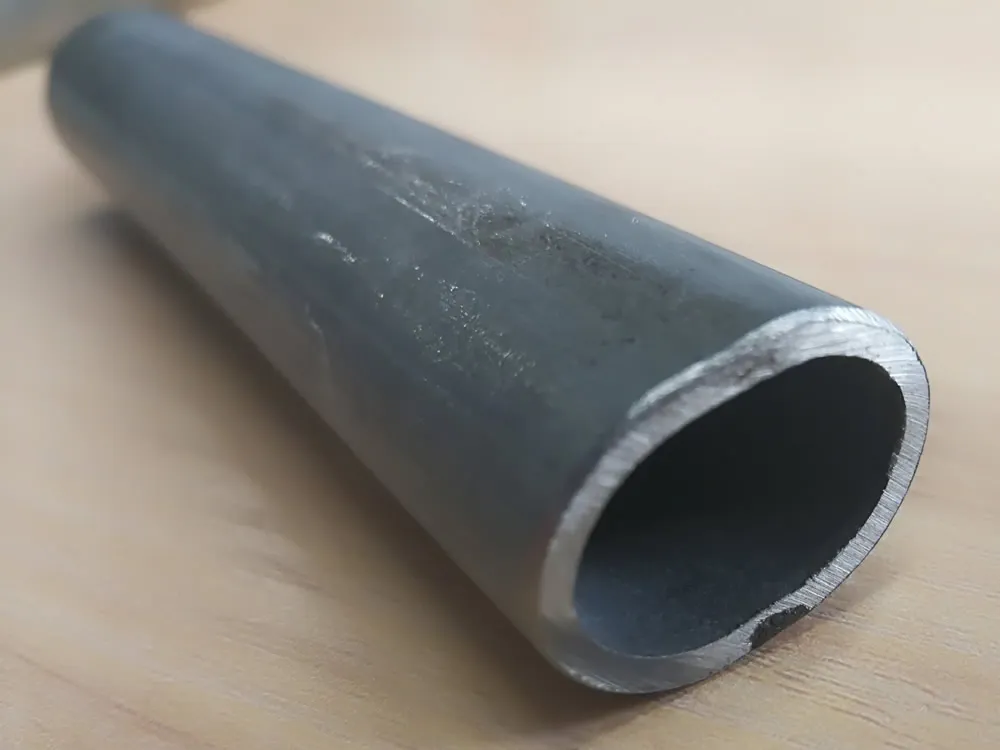

Carbon Steel Flat Oval Tube
Carbon steel flat oval tubes are cold-rolled and welded tubes.
Their relatively small form factor makes them great substitutes for bulkier round tubing solutions. This likewise makes them highly versatile and easy to install, especially on intricate structures like railing and balustrades.
Carbon Steel Flat Oval Tubes combine compact design with durability, offering cost-effective solutions for complex structural and decorative needs.
| Data | Elements（%） | ||||
|---|---|---|---|---|---|
| Material Grade | C | Mn | S | P | Si |
| Q195 | 0.06-0.12 | 0.25-0.50 | <0.05 | <0.045 | <0.30 |
| Q215 | 0.09-0.15 | 0.25-0.55 | <0.05 | <0.045 | <0.30 |
| Q235 | 0.12-0.20 | 0.30-0.70 | <0.045 | <0.045 | <0.30 |
| Q345 | <0.20 | 1.0-1.6 | <0.04 | <0.04 | <0.55 |
The chemical composition ensures weldability and durability for Flat oval pipes in fluid conveyance and structural applications.
| Material Grade | Yield Point (Mpa) | Tensile Strength (Mpa) | Elongation (%) |
|---|---|---|---|
| Q195 | >195 | 315-430 | 32-33 |
| Q215 | >215 | 335-450 | 26-31 |
| Q235 | >235 | 375-500 | 24-26 |
| Q345 | >345 | 470-630 | 21-22 |
These properties ensure Flat oval pipes deliver robust performance in pressure and structural applications.
| Grade | C (% max) | Mn (% max) | Si (% max) | P (% max) | S (% max) | Cr (%) | Ni (%) | Mo (%) | N (% max) |
|---|---|---|---|---|---|---|---|---|---|
| 304 | 0.08 | 2.00 | 1.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-11.0 | - | 0.10 |
| 304L | 0.03 | 2.00 | 1.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-12.0 | - | 0.10 |
| 316 | 0.08 | 2.00 | 1.00 | 0.045 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | 0.10 |
| 316L | 0.03 | 2.00 | 1.00 | 0.045 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | 0.10 |
The low carbon content in 304L and 316L enhances weldability, while molybdenum in 316 and 316L improves resistance to pitting and crevice corrosion, making Flat oval pipes ideal for harsh environments.
| Grade | Tensile Strength (min, MPa) | Yield Strength (min, MPa) | Elongation (min, %) | Hardness (max, HB) | Hardness (max, HRB) |
|---|---|---|---|---|---|
| 304 | 515 | 205 | 40 | 201 | 92 |
| 304L | 485 | 170 | 40 | 201 | 92 |
| 316 | 515 | 205 | 40 | 217 | 95 |
| 316L | 485 | 170 | 40 | 217 | 95 |
These mechanical properties make Flat oval pipes suitable for applications requiring high strength and corrosion resistance, such as architectural structures, marine environments, and chemical processing.
Flat oval pipes are engineered for high-strength and corrosion-resistant performance in automotive exhaust systems, construction frameworks, oil and gas pipelines, aerospace components, hydraulic systems, and chemical processing, meeting the demands of diverse industries including power generation and agricultural equipment.
efficient overseas shipping options
We specialize in international shipping for Flat oval pipes, ensuring safe and timely delivery worldwide.
Our clients come to us from across the globe for our unique shaped tubing and specialist tube fabrication. We can Flat oval pipes to North America and Europe in as little as soon as posible.
Our expert shipping team will meet your transit times and budget; get in touch to discuss transportation options.
Need help finding
Speak with one of our tube specialists to find out how best to integrate shaped tubing into your project. We can give you information on the best profile, metal, finish and dimensions for your application.
Our team is here to assist you in selecting the perfect size and shape for your specific needs.
