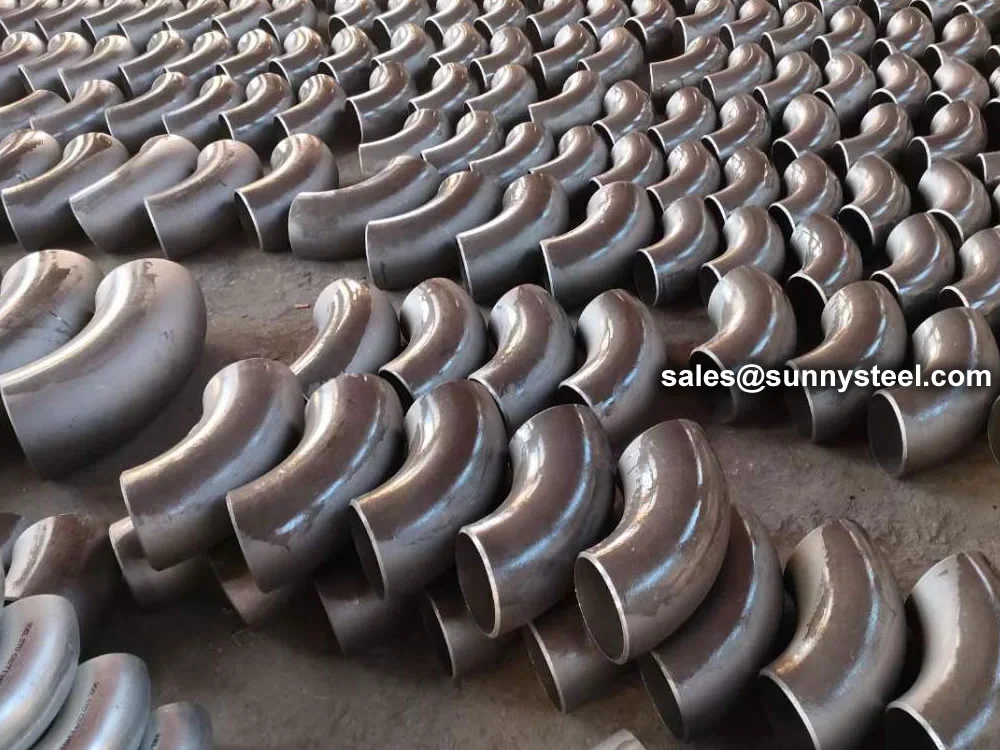

ASME B16.9 Elbows are high-quality wrought steel pipe fittings designed for industrial piping systems, compliant with ASME B16.9 standards. These seamless or welded elbows, available in materials like carbon steel (ASTM A234 WPB) and stainless steel (ASTM A403 WP304/WP316), offer excellent strength, erosion resistance, and corrosion resistance, making them ideal for boiler pipeline protection in industries such as oil and gas, power generation, chemical processing, and marine applications.

ASME B16.9 elbows are manufactured through hot-forming or cold-forming processes, ensuring durability across a wide temperature range (up to 870°C for stainless steel, 425°C for carbon steel). Available in long-radius (LR, R=1.5D), short-radius (SR, R=1D), and reducing configurations, these elbows support angles of 90°, 45°, and 22.5° (with 60° and 120° for specialized applications), providing flexibility for complex industrial piping designs.

These elbows support welding, bending, and flanging, with material-specific weldability (e.g., excellent for WP304/WP316, good for WPB). Available in sizes from 1/2” to 24” (DN15 to DN600) and wall thicknesses from SCH 10 to SCH 160, they meet diverse pipeline requirements. Rigorous testing, including tensile, flattening, and hydrostatic tests, ensures compliance with ASME B16.9 standards for reliable performance.

ASME B16.9 elbows can be coated (e.g., FBE, 3LPE, galvanizing for carbon steel; passivation for stainless steel) to enhance corrosion resistance, protecting against rust and chemical attack. Their versatility and material options make them ideal for boiler pipeline protection in demanding environments, balancing cost, strength, and corrosion resistance based on application needs.

For engineers seeking reliable corrosion-resistant piping solutions, ASME B16.9 elbows deliver unmatched performance, safety, and longevity, addressing challenges like pipeline corrosion, mechanical stress, and high-temperature demands.
