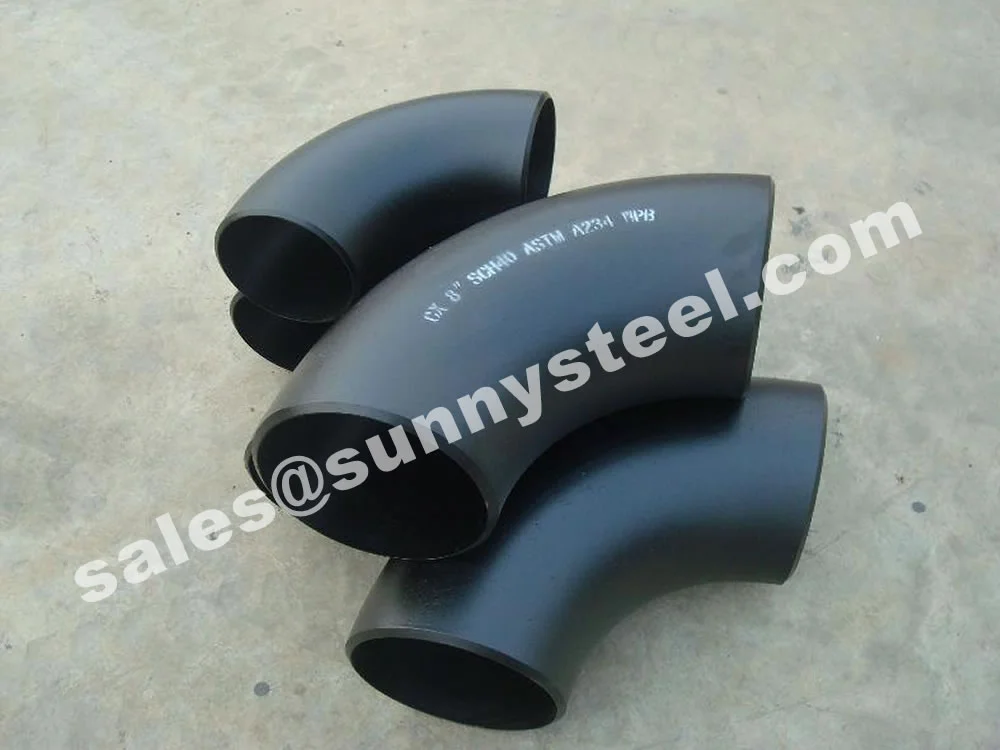

ASTM A234 WPB Elbow

Astm a234 wpb carbon steel elbows are high-quality pipe fittings designed for industrial piping systems, compliant with asme b16.9 and astm a234 standards. these seamless or welded elbows offer excellent strength and erosion resistance, making them ideal for boiler pipeline protection in industries such as oil and gas, power generation, and general industrial piping.

ASTM A234 WPB Elbow ASTM A234 WPB Elbow 90 Degree Lo ASTM A234 WPB

ASTM A234 WPB Carbon Steel Elbow for Cost-Effective Industrial Piping

ASTM A234 WPB Carbon Steel Elbows are high-quality pipe fittings designed for industrial piping systems, compliant with ASME B16.9 and ASTM A234 standards. These seamless or welded elbows offer excellent strength and erosion resistance, making them ideal for boiler pipeline protection in industries such as oil and gas, power generation, and general industrial piping.

ASTM A234 WPB elbows are manufactured through hot-forming or cold-forming processes, ensuring durability in moderate temperature ranges (-29°C to 425°C). With a composition including carbon (≤0.30%) and manganese (0.29-1.06%), they provide robust mechanical strength and moderate corrosion resistance. Available in long-radius (LR, R=1.5D), short-radius (SR, R=1D), and reducing configurations, these elbows support angles of 90°, 45°, and 22.5° (with 60° and 120° for specialized applications) for versatile industrial piping designs.

These elbows support welding, bending, and flanging, with good weldability due to controlled carbon content. Available in sizes from 1/2” to 24” (DN15 to DN600) and wall thicknesses from SCH 10 to SCH 160, they meet diverse pipeline requirements. Rigorous testing, including tensile, impact, and hydrostatic tests, ensures compliance with ASTM A234 standards for reliable performance.

ASTM A234 WPB elbows can be coated (e.g., FBE, 3LPE, galvanizing) to enhance corrosion resistance, protecting against rust in moderately corrosive environments. Their cost-effectiveness and strength make them ideal for boiler pipeline protection in oil and gas pipelines, power plants, and industrial systems where high corrosion resistance is not critical.

For engineers seeking cost-effective and durable industrial piping solutions, ASTM A234 WPB carbon steel elbows deliver reliable performance, addressing challenges like mechanical stress and moderate corrosion in demanding applications.

Comparison of ASTM A234 WPB Elbow with Other Fittings
Feature	ASTM A234 WPB	ASTM A403 WP304	ASTM A403 WP316
Material Type	Carbon Steel	Stainless Steel	Stainless Steel
Temperature Range	Moderate (-29°C to 425°C)	High (up to 870°C)	High (up to 870°C)
Corrosion Resistance	Moderate	Superior (Austenitic)	Superior (Mo-enhanced)
Erosion Resistance	Good	Moderate	Moderate
Creep Strength	Moderate	Good	Good
Applications	Oil and Gas, Power Plants	Food Processing, Marine	Marine, Chemical Processing
Key Advantage	Cost-effective strength	Superior corrosion resistance	Pitting/crevice corrosion resistance

Key Benefits

Moderate Corrosion Resistance

Coatings like FBE and galvanizing enhance resistance to rust.

Erosion Resistance

Robust carbon steel withstands wear in high-flow systems.

High Strength

Tensile strength of 415-585 MPa for demanding applications.

Weldability

Good weldability for secure pipeline configurations.

Cost-Effective

Affordable solution for large-scale industrial piping projects.

Versatile Configurations

Available in LR, SR, and reducing designs for diverse applications.

You Can Also Search ASTM A234 WPB Elbows by

A curated list of long-tail keywords for ASTM A234 WPB carbon steel elbows, covering specifications, applications, and material properties.

Standards and Specifications

• ASTM A234 WPB elbow standards
• ASME B16.9 WPB elbow specifications
• Industrial piping WPB elbow standards
• Corrosion-resistant WPB elbow properties

Applications

• ASTM A234 WPB elbows for oil and gas
• WPB carbon steel elbows for power generation
• Industrial piping WPB elbows
• WPB elbows for boiler pipeline protection

Material and Grades

• ASTM A234 WPB elbow material
• Carbon steel WPB elbow grades
• WPB elbow properties

Manufacturing and Testing

• ASTM A234 WPB elbow manufacturing process
• WPB elbow non-destructive testing
• Corrosion-resistant WPB elbow quality testing
• Industrial piping WPB elbow inspection

Procurement and Suppliers

• ASTM A234 WPB elbow suppliers
• Carbon steel WPB elbow distributors
• ASTM A234 WPB elbow price

Dimensions and Customization

• ASTM A234 WPB elbow dimensions
• Industrial piping WPB elbow tolerances
• Custom WPB carbon steel elbow sizes

Note: ASTM A234 WPB carbon steel elbows are designed for cost-effective and durable industrial piping. Contact a certified supplier for detailed specifications.

An ASTM A234 WPB carbon steel elbow is a pipe fitting designed for industrial piping systems, offering strength and moderate corrosion resistance for applications in oil and gas, power generation, and general piping.

ASTM A234 WPB is a carbon steel grade with moderate corrosion resistance and a temperature range of -29°C to 425°C, ideal for cost-effective applications. ASTM A403 WP304/WP316 are stainless steel grades with superior corrosion resistance and higher temperature tolerance (up to 870°C), suited for harsher environments.

ASTM A234 WPB elbows are available in 90°, 45°, and 22.5° angles, with 60° and 120° options for specialized industrial piping systems, ensuring flexibility in design.

A reducing ASTM A234 WPB elbow connects pipes of different diameters, available in LR (R=1.5D) or SR (R=1D) configurations, ensuring performance in complex industrial piping layouts.

ASTM A234 WPB elbows are made from carbon steel with carbon (≤0.30%) and manganese (0.29-1.06%) for strength and moderate corrosion resistance in industrial piping.

ASTM A234 WPB elbows are produced via hot-forming or cold-forming, ensuring strength and erosion resistance for industrial piping applications, with optional coatings for enhanced corrosion protection.

Quality is ensured through: - Back Arc Thickness: Measured with a thickness gauge to detect thinning.
- Dimensional Checks: Inner/outer diameters and center height.
- Radiographic Inspection: Detects defects like pores or slag inclusions.
- Testing: Tensile, impact, and hydrostatic tests per ASTM A234.

ASTM A234 WPB elbows offer high strength and cost-effectiveness for industrial piping, ideal for boiler pipeline protection in oil and gas, power generation, and general industrial systems where moderate corrosion resistance is sufficient.

Finishes and coatings include: - FBE coating
- 3LPE coating
- Galvanizing
These enhance corrosion resistance for boiler pipeline protection.

Calculate the back arc length: L = D * 3.14 (D = pipe diameter). For carbon steel: Weight (kg) = (D * a * 0.02466 * L) / 1000, where a is wall thickness. This ensures accurate sizing for industrial piping.

ASTM A234 WPB Specifications

Carbon Steel Pipe Fittings for Moderate and High-Temperature Service

Chemical Composition
Element	Content Range (%)
Carbon (C)	≤0.30
Manganese (Mn)	0.29–1.06
Phosphorus (P)	≤0.050
Sulfur (S)	≤0.058
Silicon (Si)	≥0.10
Chromium (Cr)	≤0.40
Molybdenum (Mo)	≤0.15
Nickel (Ni)	≤0.40
Copper (Cu)	≤0.40
Vanadium (V)	≤0.08

Notes:
- For fittings made from bar or plate, carbon content may be up to 0.35% max.
- For forgings, carbon content may be up to 0.35% max, with no minimum for silicon.
- For each 0.01% reduction in carbon below the maximum, manganese may increase by 0.06% up to 1.65%.
- The sum of Copper, Nickel, Chromium, and Molybdenum shall not exceed 1.00%.
- The sum of Chromium and Molybdenum shall not exceed 0.32%.

Mechanical Properties
Property	Value
Tensile Strength, min	60 ksi [415 MPa]
Yield Strength, min	35 ksi [240 MPa]
Elongation (in 50 mm), min
- Standard round specimen (4D)	22% (Longitudinal), 14% (Transverse)
- Rectangular specimen, wall thickness ≥ 5/16 in. [7.94 mm]	30% (Longitudinal), 20% (Transverse)*
- Rectangular specimen, wall thickness < 5/16 in. [7.94 mm]	Calculated**

Notes:
- *For WPB fittings made from plate, the minimum transverse elongation is 17%.
- **For wall thickness less than 5/16 in. [7.94 mm], deduct 1.5% (longitudinal) and 1.0% (transverse) for each 1/32 in. [0.79 mm] decrease in wall thickness. Elongation equations: Longitudinal: E = 48t + 15.00; Transverse: E = 32t + 10.00, where E = elongation in 2 in. or [50 mm], %, and t = thickness, in. [mm].

Elongation equations: Longitudinal: E = 48t + 15.00; Transverse: E = 32t + 10.00, where E = elongation in 2 in. or [50 mm], %, and t = thickness, in. [mm].
