Stainless steel pipe reducers are critical fittings that connect pipes of different diameters, ensuring seamless flow transitions in high-pressure and corrosive environments. Available as concentric reducers (aligned centerlines for uniform flow) and eccentric reducers (offset centerlines to prevent liquid or air trapping), they are ideal for boiler pipeline protection and corrosion resistance in industries like power generation, petrochemical, and chemical processing.

Manufactured from austenitic stainless steel grades like ASTM A403 WP304, WP316L, and WP347H, these reducers offer excellent corrosion resistance due to high chromium (16–19%) and nickel (8–13%) content, forming a passive oxide layer. They are available in sizes from 1/2" (12.7mm) to 48" (1219mm) nominal diameter, with wall thicknesses from 0.5mm to 50mm, and comply with ASME B16.9 and ASTM A403 standards. Additional coatings like passivation or FBE enhance corrosion resistance in harsh chemical environments.

Stainless steel reducers undergo rigorous testing, including chemical analysis, tensile testing (e.g., ≥515 MPa for WP347H), hydrostatic testing, and nondestructive methods (radiographic, ultrasonic, PMI). With a density of ~7.96 g/cm³ and thermal conductivity of ~16 W/(m·K) at 20°C, they perform reliably in high-temperature systems (up to 870°C for WP347H) and high-pressure applications (≥9.8 MPa), such as boilers, superheaters, heat exchangers, and refinery pipelines.

Concentric reducers are used in vertical pipelines for uniform flow, while eccentric reducers suit horizontal systems to prevent sediment buildup. Both types minimize turbulence, enhancing erosion resistance and ensuring efficient fluid dynamics. Applications include cooling systems, structural piping, and high-pressure boiler setups, where stainless steel reducers address challenges like pipeline corrosion and thermal stress.

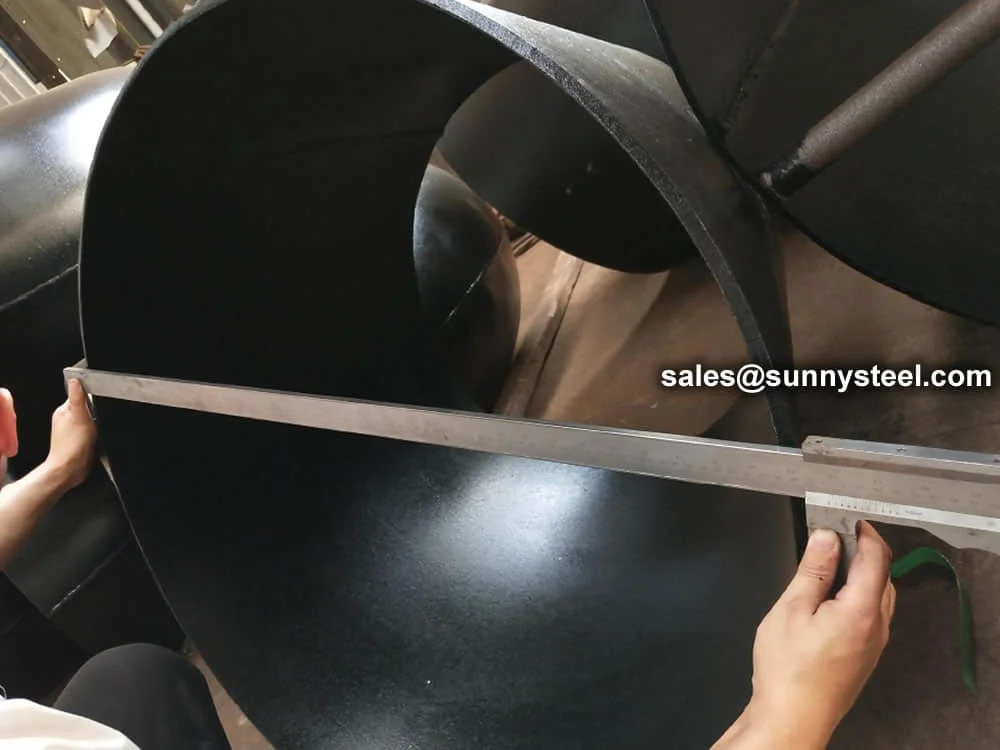

Large-size eccentric reducers are specialized pipe fittings designed to connect large-diameter pipes (≥24" or 610mm) with different diameters, ensuring smooth flow transitions in high-flow, high-pressure systems. Their offset centerline design prevents air or liquid trapping in horizontal pipelines, making them ideal for boiler pipeline protection and corrosion resistance in industries such as power generation, petrochemical, and chemical processing.

These reducers are typically manufactured from welded pipes or forged components, using materials like carbon steel (e.g., ASTM A234 WPB), stainless steel (e.g., ASTM A403 WP316L, WP347H), and alloy steel (e.g., 12Cr1MoVG). They range in size from 24" (610mm) to 48" (1219mm) nominal diameter, with wall thicknesses from 5mm to 50mm, and comply with ASME B16.9 and ASTM standards. Protective coatings like FBE, galvanization, or passivation enhance corrosion resistance in aggressive environments.

Large-size eccentric reducers undergo rigorous testing, including chemical analysis, tensile testing (e.g., ≥515 MPa for WP347H), hydrostatic testing, and nondestructive methods (radiographic, ultrasonic, PMI). With densities ranging from ~7.85 g/cm³ (carbon steel) to ~7.96 g/cm³ (stainless steel) and thermal conductivity suited for high-temperature applications (up to 870°C for stainless steel), they ensure reliable performance in high-pressure piping systems (≥9.8 MPa), such as boilers, heat exchangers, and refinery pipelines.

The eccentric design is particularly suited for horizontal pipelines, preventing sediment buildup and ensuring erosion resistance by minimizing turbulence. Applications include large-scale cooling systems, structural piping, and high-pressure boiler setups, where large-size eccentric reducers address challenges like pipeline corrosion, flow inconsistency, and thermal stress in demanding industrial environments.
