Durable Carbon Steel Concentric Reducers For Boiler And Petrochemical Pipelines
Astm a234 wpb concentric reducers are high-quality carbon steel pipe fittings designed to connect pipes of different diameters with aligned centerlines, ensuring uniform flow transitions in vertical pipelines.
Durable Carbon Steel Concentric Reducers For Boiler And Petrochemical Pipelines

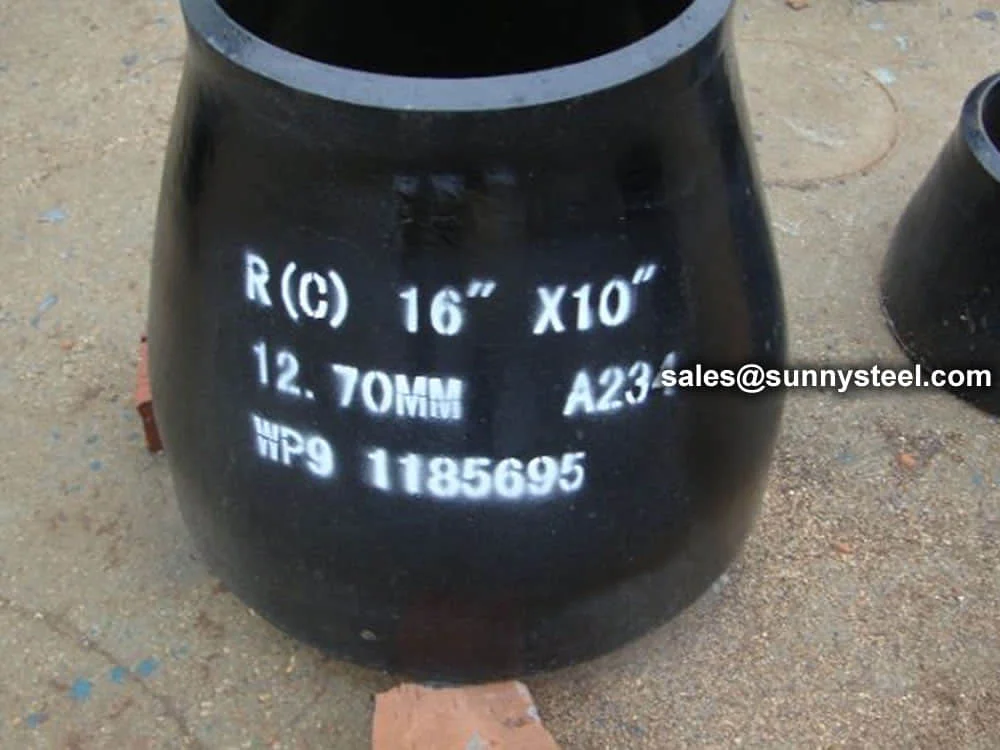

Astm a234 wpb concentric reducers are high-quality carbon steel pipe fittings designed to connect pipes of different diameters with aligned centerlines, ensuring uniform flow transitions in vertical pipelines. these fittings are critical for boiler pipeline protection and corrosion resistance in industries like power generation, petrochemical, and chemical processing, providing seamless flow in high-pressure systems.
Smooth transition from large to small bore
Minimizes noise and vibration
Prevents air bubble accumulation
Maintains pipeline integrity

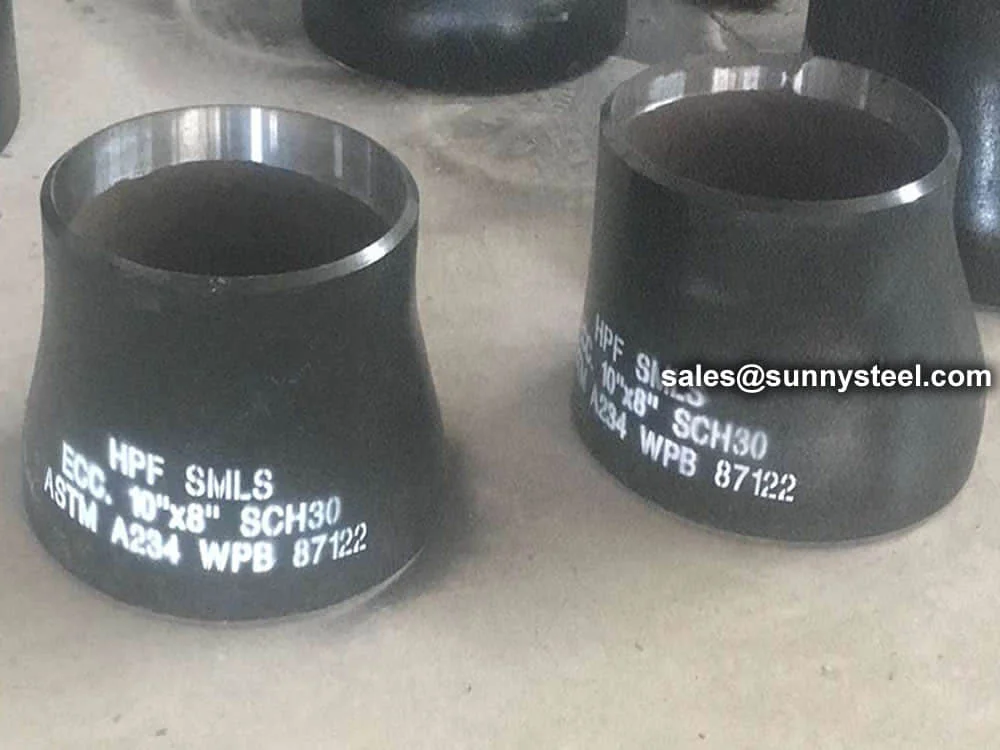

ASTM A234 WPB eccentric reducers are high-quality carbon steel pipe fittings designed to connect pipes of different diameters with an offset centerline, preventing air or liquid trapping in horizontal pipelines. These fittings are critical for boiler pipeline protection and corrosion resistance in industries like power generation, petrochemical, and chemical processing, ensuring seamless flow transitions in high-pressure systems.
Manufactured to ASTM A234 WPB standards, these eccentric reducers are made from seamless or welded carbon steel pipes, offering excellent strength and durability. Available in sizes from 1/2" (12.7mm) to 48" (1219mm) nominal diameter, with wall thicknesses from 0.5mm to 50mm, they comply with ASME B16.9 specifications. Protective coatings like FBE (Fusion Bonded Epoxy) or galvanization enhance corrosion resistance in aggressive environments.
ASTM A234 WPB eccentric reducers undergo rigorous testing, including chemical analysis (e.g., Carbon ≤0.3%, Manganese 0.29-1.06%), tensile testing (yield strength ≥240 MPa, tensile strength 415-585 MPa), hydrostatic testing, and nondestructive methods (radiographic, ultrasonic, PMI). With a density of ~7.85 g/cm³ and thermal conductivity suited for moderate-temperature applications (up to 425°C), they ensure reliable performance in high-pressure piping systems (≥9.8 MPa), such as boilers, heat exchangers, and refinery pipelines.
The eccentric design minimizes turbulence and sediment buildup, enhancing erosion resistance and ensuring efficient fluid dynamics in horizontal pipelines. Applications include large-scale cooling systems, structural piping, and high-pressure boiler setups, addressing challenges like pipeline corrosion, flow inconsistency, and mechanical stress in demanding industrial environments.
| Specification | Details |
|---|---|
| Standards | ASTM A234 WPB, ASME B16.9 |
| Type | Eccentric Reducer |
| Material | Carbon Steel (ASTM A234 WPB) |
| Sizes | 1/2" (12.7mm) to 48" (1219mm) Nominal Diameter |
| Wall Thickness | 0.5mm to 50mm |
| Manufacturing | Seamless Forming, Welded Fabrication |
| Coatings | FBE, Galvanization |
| Testing | Chemical Analysis (C ≤0.3%, Mn 0.29-1.06%), Tensile (YS ≥240 MPa, TS 415-585 MPa), Hydrostatic, Radiographic, Ultrasonic, PMI |
| Operating Conditions | Pressure: ≥9.8 MPa, Temperature: Up to 425°C |
FBE and galvanization ensure protection in harsh environments.
Offset design minimizes turbulence and sediment buildup.
Efficient fluid dynamics in horizontal pipelines.
Reliable up to 425°C for carbon steel.
Excellent weldability with carbon steel pipelines.
Robust for high-pressure industrial applications.
| Feature | ASTM A234 WPB Eccentric Reducer | ASTM A234 WPB Concentric Reducer | ASTM A403 Stainless Steel Eccentric Reducer |
|---|---|---|---|
| Material | Carbon Steel (ASTM A234 WPB) | Carbon Steel (ASTM A234 WPB) | Stainless Steel (e.g., WP304, WP316L) |
| Design | Offset centerline | Aligned centerline | Offset centerline |
| Flow Efficiency | Good (prevents sediment buildup) | Good (uniform flow) | Good (prevents sediment buildup) |
| Erosion Resistance | Excellent (minimal turbulence) | Good (balanced flow) | Excellent (minimal turbulence) |
| Corrosion Resistance | Good (with coatings) | Good (with coatings) | Excellent (inherent material property) |
| Applications | Horizontal pipelines, boilers, petrochemical | Vertical pipelines, boilers, petrochemical | Horizontal pipelines, chemical, petrochemical |
| Temperature Range | Up to 425°C | Up to 425°C | Up to 870°C |
| Cost | Moderate | Moderate | Higher |
| Key Advantage | Prevents air/liquid trapping | Uniform flow in vertical systems | Superior corrosion resistance |
A curated list of long-tail keywords for concentric reducers, covering materials, standards, and industrial applications.
Note: Concentric reducers are engineered for corrosion-resistant, uniform flow piping in critical industrial applications. Contact a certified supplier for detailed specifications.
Carbon Steel Pipe Fittings for Moderate and High-Temperature Service
| Element | Content Range (%) |
|---|---|
| Carbon (C) | ≤0.30 |
| Manganese (Mn) | 0.29–1.06 |
| Phosphorus (P) | ≤0.050 |
| Sulfur (S) | ≤0.058 |
| Silicon (Si) | ≥0.10 |
| Chromium (Cr) | ≤0.40 |
| Molybdenum (Mo) | ≤0.15 |
| Nickel (Ni) | ≤0.40 |
| Copper (Cu) | ≤0.40 |
| Vanadium (V) | ≤0.08 |
Notes:
- For fittings made from bar or plate, carbon content may be up to 0.35% max.
- For forgings, carbon content may be up to 0.35% max, with no minimum for silicon.
- For each 0.01% reduction in carbon below the maximum, manganese may increase by 0.06% up to
1.65%.
- The sum of Copper, Nickel, Chromium, and Molybdenum shall not exceed 1.00%.
- The sum of Chromium and Molybdenum shall not exceed 0.32%.
| Property | Value |
|---|---|
| Tensile Strength, min | 60 ksi [415 MPa] |
| Yield Strength, min | 35 ksi [240 MPa] |
| Elongation (in 50 mm), min | |
| - Standard round specimen (4D) | 22% (Longitudinal), 14% (Transverse) |
| - Rectangular specimen, wall thickness ≥ 5/16 in. [7.94 mm] | 30% (Longitudinal), 20% (Transverse)* |
| - Rectangular specimen, wall thickness < 5/16 in. [7.94 mm] | Calculated** |
Notes:
- *For WPB fittings made from plate, the minimum transverse elongation is 17%.
- **For wall thickness less than 5/16 in. [7.94 mm], deduct 1.5% (longitudinal) and 1.0%
(transverse) for each 1/32 in. [0.79 mm] decrease in wall thickness. Elongation equations:
Longitudinal: E = 48t + 15.00; Transverse: E = 32t + 10.00, where E = elongation in 2 in. or [50
mm], %, and t = thickness, in. [mm].
Elongation equations: Longitudinal: E = 48t + 15.00; Transverse: E = 32t + 10.00, where E = elongation in 2 in. or [50 mm], %, and t = thickness, in. [mm].
| Material Type | Standards & Grades | Characteristics |
|---|---|---|
| Carbon Steel | A234 WPB, A420 WPL6, MSS-SP-75 WPHY 42, 46, 52, 56, 60, 65, 70 | High pressure resistance, higher strength, wear resistant, but easily corroded |
| Stainless Steel | ASTM A403 WP 304, 304L, 316, 316L, 317, 317L, 321, 310, 904L | Excellent corrosion resistance, suitable for corrosive environments and high hygiene |
| Alloy Steel | A234 WP1, WP5, WP9, WP11, WP22, WP91 | Enhanced strength, high-temperature resistance, specific corrosion resistance |
High strength and pressure resistance, cost-effective for general applications
General PurposeSuperior corrosion resistance, ideal for food grade and chemical applications
Corrosion ResistantEnhanced properties for high-temperature and specialized applications
High PerformancePipe fittings ensure uninterrupted flow of liquids, gases, and other substances. Proper selection and installation enhance system efficiency and safety.
Fittings provide flexibility for pipeline modifications, enabling businesses to adapt to changing needs without costly system overhauls.
Correctly chosen and installed fittings form tight seals, reducing the risk of leaks—essential in applications handling hazardous or valuable substances.
Available in materials like stainless steel, brass, and PVC, fittings enhance the longevity and reliability of piping systems.
Well-maintained fittings ensure safe system operations, and may include safety features like pressure relief valves to prevent overpressure incidents.
By minimizing turbulence and energy loss, pipe fittings improve overall system efficiency, lowering energy use and operational costs.
Pipelines, refineries, and petrochemical plants
Power plants for steam, water, and fuel lines
Chemical plants for process piping systems
Municipal and industrial water supply systems
Heating, ventilation, and air conditioning systems
Hygienic piping systems with stainless steel reducers
