High-quality Butt-welded Pipe Caps For Boilers, Petrochemical, And Industrial Piping
Din 2617 is a german standard for butt-weld pipe caps, specifying the dimensions, shapes, and materials for caps intended to be welded onto the end of a pipe.
High-quality Butt-welded Pipe Caps For Boilers, Petrochemical, And Industrial Piping
Din 2617 is a german standard for butt-weld pipe caps, specifying the dimensions, shapes, and materials for caps intended to be welded onto the end of a pipe. these caps are crucial for sealing pipeline ends, providing a secure, liquid- and gas-tight closure
DIN 2617 pipe caps are precision-engineered butt-welded fittings designed to seal pipe ends, providing exceptional protection against corrosion, environmental exposure, and pressure loss. These caps are vital for boiler pipeline protection and corrosion resistance in industries such as oil and gas, petrochemical, power generation, and chemical processing.
Compliant with DIN 2617 standards, these pipe caps are available in sizes from DN15 to DN300, with wall thicknesses up to 200 mm for demanding applications. They are crafted from materials like carbon steel (HII, P235GH), stainless steel (1.4541, 1.4571), and alloy steel (15Mo3, 13CrMo44, 10CrMo910), ensuring durability and resistance to corrosion. Protective coatings such as galvanization, pickling, or Fusion Bonded Epoxy (FBE) enhance performance in harsh environments.
DIN 2617 pipe caps undergo rigorous testing, including chemical analysis (e.g., HII: C ≤0.16%), tensile testing (yield strength ≥235 MPa, tensile strength ≥360-510 MPa for HII), hydrostatic testing (up to 9.8 MPa), and nondestructive methods (radiographic, ultrasonic, PMI). With a carbon steel density of ~7.85 g/cm³ and suitability for temperatures up to 450°C, these caps excel in high-pressure piping systems like boilers, heat exchangers, and refinery pipelines.
The butt-welded design ensures a secure, leak-free seal, making DIN 2617 pipe caps ideal for terminating pipelines and protecting against erosion/corrosion in challenging industrial settings, such as offshore platforms and chemical plants.
| Specification | Details |
|---|---|
| Standards | DIN 2617, DIN 2609 (reference), EN 10253 |
| Type | Butt-Welded Pipe Cap (Seamless or Welded) |
| Material | Carbon Steel (HII, P235GH), Stainless Steel (1.4541, 1.4571), Alloy Steel (15Mo3, 13CrMo44, 10CrMo910) |
| Size Range | DN15-DN300 (Seamless: 1/2″ to 48″, Welded: 24″ to 72″) |
| Wall Thickness | Up to 200 mm (Schedule 5S to SCH 160) |
| Manufacturing | Seamless Forming, Welded Fabrication, Cold Pressing, Hot Forming |
| Coatings | Galvanization, FBE, Pickling, 3LPE |
| Testing | Chemical Analysis (C ≤0.16% for HII), Tensile (YS ≥235 MPa, TS ≥360-510 MPa for HII), Hydrostatic (≥9.8 MPa), Radiographic, Ultrasonic, PMI |
| Operating Conditions | Pressure: ≥9.8 MPa, Temperature: Up to 450°C (carbon steel) |
| Certifications | EN 10204/3.1, ISO 9001, Third-Party Inspection |
| Feature | DIN 2617 Pipe Cap | DIN 28011 Pipe Cap | ASME SA-234 WPB End Cap |
|---|---|---|---|
| Material | Carbon Steel (HII, P235GH), Stainless Steel (1.4541, 1.4571), Alloy Steel (15Mo3, 13CrMo44) | Carbon Steel (P235GH, P265GH), Stainless Steel (1.4541, 1.4571), Copper-Nickel | Carbon Steel (ASME SA-234 WPB) |
| Standard | DIN 2617, EN 10253 | DIN 28011, EN 10253 | ASME SA-234, ASME B16.9 |
| Function | Seals pipe ends, protects against corrosion | Seals pipe ends, vessel heads | Seals pipe ends |
| Corrosion Resistance | Good (with coatings) | Good (with coatings) | Good (with coatings) |
| Erosion Resistance | Good (static application) | Good (static application) | Good (static application) |
| Applications | Boilers, petrochemical, chemical processing | Boilers, petrochemical, chemical processing | Boilers, petrochemical, chemical processing |
| Temperature Range | Up to 450°C (carbon steel) | Up to 425°C (carbon steel) | Up to 425°C |
| Cost | Moderate | Moderate | Moderate |
| Key Advantage | Butt-welded for secure sealing | Torispherical design for stress distribution | Cost-effective pipeline sealing |
Galvanization, FBE, or 3LPE coatings protect against harsh environments.
Butt-welded design ensures reliable pipeline termination.
Withstands pressures ≥9.8 MPa in boiler systems.
Reliable up to 450°C for carbon steel.
Seamless integration with carbon/stainless steel systems.
Affordable for industrial piping applications.

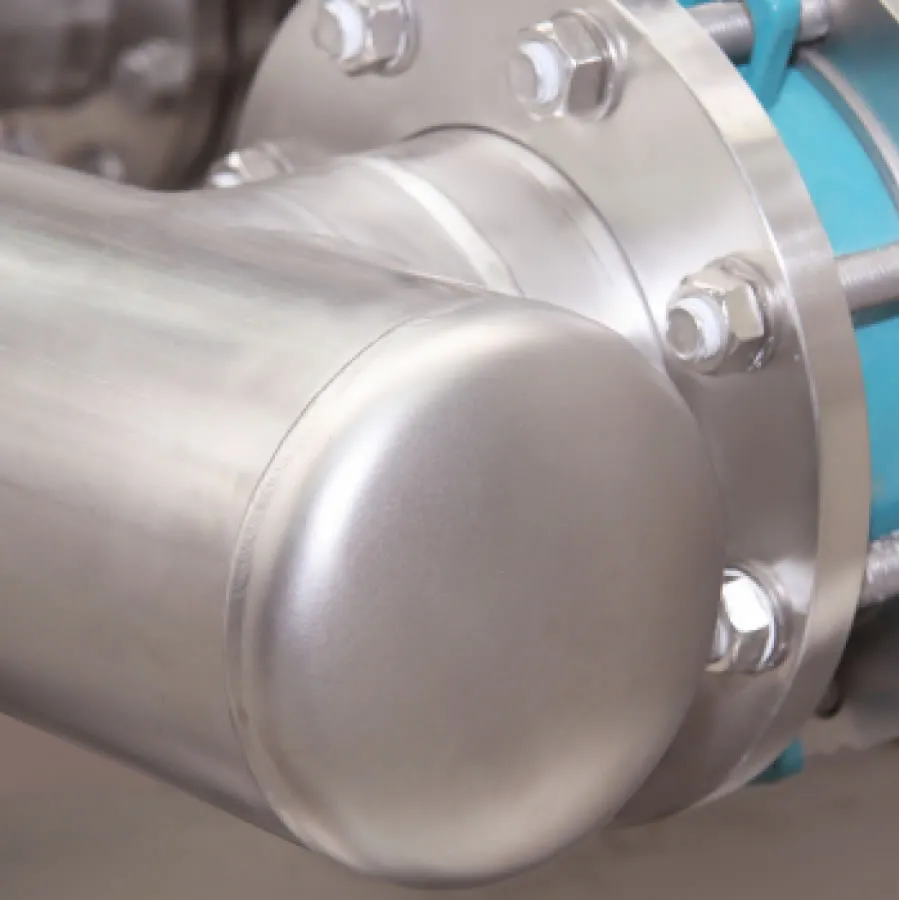

Stainless steel End cap
DIN 2617 is a German standard for butt-weld pipe caps, specifying the dimensions, shapes, and materials for caps intended to be welded onto the end of a pipe. These caps are crucial for sealing pipeline ends, providing a secure, liquid- and gas-tight closure.
DIN 2617 pipe caps are essential butt weld fittings designed for sealing the ends of pipelines and pressure vessels in demanding industrial environments. These closures, often specified as ellipsoidal heads or dished ends, provide a robust and secure seal against pressure, contaminants, and leaks. Manufactured to the precise standards of DIN 2617, our fittings ensure dimensional accuracy and consistent performance across a wide range of applications

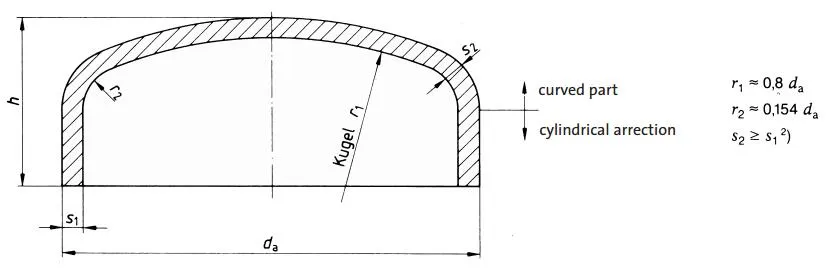

The standard includes tables detailing specific dimensions, such as the outside diameter, wall thickness, and height.
| Outside diameter mm |
Wall thickness mm |
Height mm |
Weight kg |
|---|---|---|---|
| D | s1 | ||
| 21,3 | 2,0 | 25,0 | 0,060 |
| 26,9 | 2,3 | 32,0 | 0,070 |
| 33,7 | 2,6 | 38,0 | 0,110 |
| 3,2 | 0,130 | ||
| 42,4 | 2,6 | 38,0 | 0,130 |
| 3,6 | 0,170 | ||
| 48,3 | 2,6 | 38,0 | 0,200 |
| 4,0 | 0,230 | ||
| 60,3 | 2,9 | 38,0 | 0,280 |
| 4,5 | 0,320 | ||
| 76,1 | 2,9 | 38,0 | 0,340 |
| 5,0 | 0,390 | ||
| 88,9 | 3,2 | 51,0 | 0,530 |
| 5,6 | 0,700 | ||
| 108,0 | 3,6 | 64,0 | 1,000 |
| 114,3 | 3,6 | 64,0 | 1,000 |
| 6,3 | 1,500 | ||
| 133,0 | 4,0 | 76,0 | 1,600 |
| 139,7 | 4,0 | 76,0 | 1,700 |
| 6,3 | 2,500 | ||
| 159,0 | 4,5 | 90,0 | 2,400 |
| 168,3 | 4,5 | 89,0 | 2,650 |
| 7,1 | 3,550 | ||
| 219,0 | 6,3 | 100,0 | 5,550 |
| 8,0 | 6,700 | ||
| 273,0 | 6,3 | 127,0 | 8,800 |
| 323,9 | 7,1 | 152,0 | 14,000 |
| 355,6 | 8,0 | 165,0 | 16,500 |
| 406,4 | 8,8 | 178,0 | 18,200 |
| 508,0 | 11,0 | 229,0 | 38,000 |
