Reducing Tee For Industrial Piping And Corrosion Protection

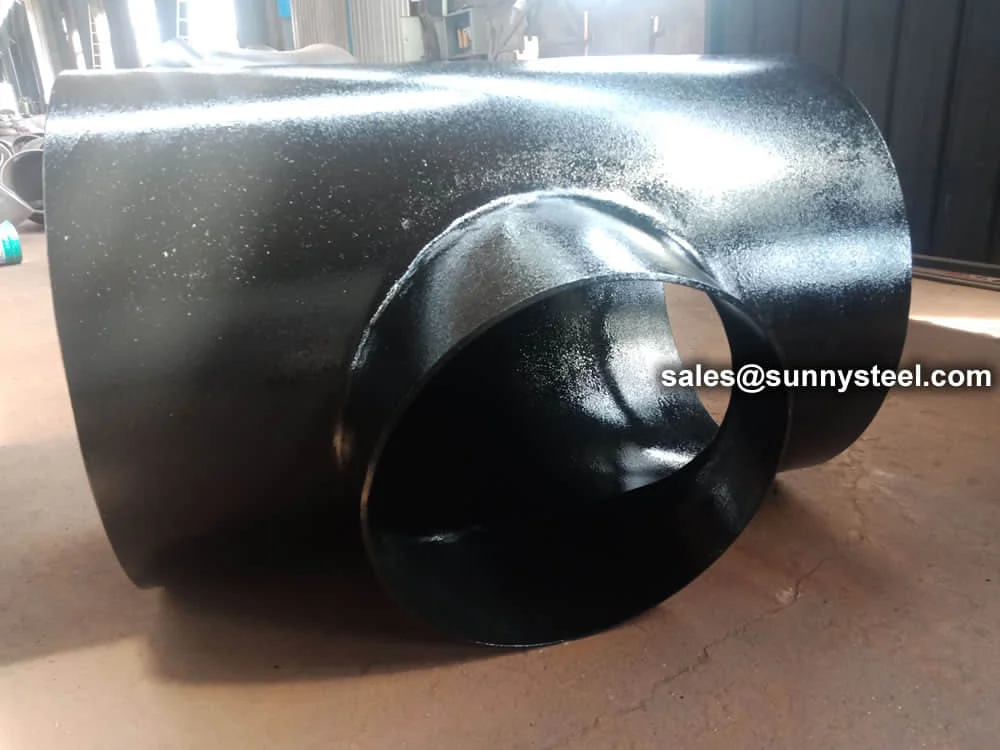

Reducing tee, like all pipe tees, is in the shape of t with two ends of equal size and the third one slightly smaller.
Reducing Tee For Industrial Piping And Corrosion Protection
Reducing tee, like all pipe tees, is in the shape of t with two ends of equal size and the third one slightly smaller. in other words, reducing tee is a type of pipe fitting in which the branch port size is smaller than the ports of the run.
Reducing Tee is a T-shaped pipe fitting designed for industrial piping systems, connecting three pipes where the branch pipe has a smaller diameter than the main run, creating a 90-degree branch. Compliant with ASTM A234 WPB standards, this carbon steel fitting provides exceptional pipeline corrosion protection and durability, making it ideal for boiler pipeline protection in oil and gas, petrochemical, and power generation industries as of 11:29 PM PDT, August 31, 2025. Its butt-weld design ensures leak-proof, high-strength connections for demanding applications.
The Reducing Tee is manufactured using seamless or welded processes, utilizing high-quality materials like ASTM A234 WPB (carbon steel) for general-purpose applications or ASTM A234 WP22 (low-alloy steel) for high-temperature environments. Available in sizes from 1/2” to 48” (DN 15–DN 1200) for the main run and smaller branch sizes, with wall thicknesses such as SCH 40, SCH 80, or XXS, it meets diverse industrial piping needs. Rigorous testing, including tensile, hydrostatic, and non-destructive tests (radiography or ultrasonic), ensures compliance with ASME B16.9 and MSS SP-75 standards.
Engineered for pipeline corrosion protection, the Reducing Tee can be coated with epoxy, galvanizing, or 3LPE to withstand harsh environments, such as offshore pipelines or chemical processing plants. Its robust construction resists wear from abrasive materials and high-pressure conditions, ensuring reliability for boiler pipeline protection. The fitting supports welding methods (SMAW, GTAW, or GMAW) with low-carbon fillers, ensuring compatibility with pipelines like ASTM A106 Gr.B or API 5L Gr.B, facilitating seamless integration into complex systems.
Unlike Equal Tee fittings (same diameter for all outlets) or Piggable Tee fittings (with internal bars for pigging, as discussed in your previous queries), the Reducing Tee is optimized for applications requiring a smaller branch diameter, offering flexibility in industrial piping systems. For highly corrosive environments, stainless steel options like ASTM A403 TP347H provide superior corrosion resistance, while WPB offers a cost-effective solution for moderate conditions. Its versatility makes it suitable for oil and gas pipelines, petrochemical plants, power generation systems, and HVAC applications.
The Reducing Tee addresses critical challenges like pipeline wear, corrosion, and connection reliability in high-throughput industrial systems. Its durable design and material options ensure long-term performance, safety, and efficiency, making it a top choice for engineers seeking robust industrial piping and boiler pipeline protection solutions.
| Element | Composition (%) |
|---|---|
| Carbon (C) | ≤0.30 |
| Manganese (Mn) | 0.29–1.06 |
| Phosphorus (P) | ≤0.050 |
| Sulfur (S) | ≤0.058 |
| Silicon (Si) | ≥0.10 |
| Chromium (Cr) | ≤0.40 |
| Molybdenum (Mo) | ≤0.15 |
| Nickel (Ni) | ≤0.40 |
| Copper (Cu) | ≤0.40 |
| Vanadium (V) | ≤0.08 |
| Property | Value |
|---|---|
| Tensile Strength, min (MPa) | 415 |
| Yield Strength, min (MPa) | 240 |
| Elongation, min (%) | 22 (Longitudinal), 14 (Transverse) |
| Hardness, max (HBW) | 197 |
| Feature | ASME/ANSI B16.9 Reducing Tee | ASME/ANSI B16.9 Equal Tee | ASME/ANSI B16.9 Piggable Tee |
|---|---|---|---|
| Material | Carbon Steel (A234 WPB), Stainless Steel (304, 316L), Alloy Steel (WP11, WP22) | Carbon Steel (A234 WPB), Stainless Steel (304, 316L), Alloy Steel (WP11, WP22) | Carbon Steel (A234 WPB), Stainless Steel (304, 316L), Alloy Steel (WP11, WP22) |
| Standard | ASME/ANSI B16.9, ASTM A234, ASTM A403 | ASME/ANSI B16.9, ASTM A234, ASTM A403 | ASME/ANSI B16.9, ASTM A234, ASTM A403 |
| Function | Branching with reduced diameter | Uniform branching (equal diameters) | Branching with pigging prevention |
| Corrosion Resistance | Excellent (stainless steel, FBE-coated carbon steel) | Excellent (stainless steel, FBE-coated carbon steel) | Excellent (stainless steel, FBE-coated carbon steel) |
| Erosion Resistance | Good (flow applications) | Good (uniform flow applications) | Good (flow and pigging applications) |
| Applications | Oil/Gas, Petrochemical, Boilers | Oil/Gas, Petrochemical, Boilers | Oil/Gas, Petrochemical, Offshore Platforms |
| Temperature Range | Up to 450°C (carbon steel), 870°C (stainless steel) | Up to 450°C (carbon steel), 870°C (stainless steel) | Up to 450°C (carbon steel), 870°C (stainless steel) |
| Key Advantage | Adapts to varying pipe sizes | Balanced flow distribution | Prevents pigging interference |
A curated list of long-tail keywords for ASME/ANSI B16.9 reducing tees, covering specifications, applications, and material properties, presented in a two-column layout.
Note: ASME/ANSI B16.9 reducing tees are designed for flexible branching and corrosion resistance. For detailed specifications, refer to ASME B16.9, ASTM A234, or contact a certified supplier.
Allows for efficient splitting or combining of fluid flows in complex piping layouts.
Designed to maintain the strength and integrity of the piping system.
Available to suit various pipe diameters, pressure ratings, and fluid compatibility.
Smooth internal contours minimize turbulence and pressure loss.
Different connection types offer flexibility in installation.
Manufactured from high-quality materials for long service life.
| Material Type | Standards & Grades | Characteristics | Applications |
|---|---|---|---|
| Carbon Steel | ASTM A234 WPB, A420 WPL6, A105 | High strength, cost-effective, good weldability | General industrial piping, oil & gas, power generation |
| Stainless Steel | ASTM A403 WP304/304L, WP316/316L, WP321, WP347 | Excellent corrosion resistance, hygienic properties | Chemical processing, food & beverage, pharmaceutical |
| Alloy Steel | ASTM A234 WP1, WP5, WP9, WP11, WP22, WP91 | Enhanced strength, high-temperature resistance | High-temperature and high-pressure services |
Robust & Economical
Corrosion Resistant
High Performance
Install pipe tee
The basic application of the Reducing Tee is a connector that can be used in the middle of two pipes to allow them to join together.
Understanding the various pipe tee types allows engineers and contractors to make more informed decisions based on flow requirements, space limits, and material compatibility. Newzel Industries offers a diverse range of pipe tees in several grades, including SS 304, 316, and 321, all fabricated with accuracy to meet your industrial requirements. Contact us today for an estimate or technical assistance in determining the optimal pipe tee type for your project.
