Large Diameter Elbow is a key pipe fitting designed for industrial piping systems, enabling smooth directional changes in pipelines with diameters above DN400 (16 inches). Compliant with ASME B16.9, ASTM, and API standards, these elbows are available in 45°, 90°, and 180° configurations, offering exceptional corrosion resistance and durability for boiler pipeline protection and high-pressure applications. Crafted from materials like carbon steel (ASTM A234 WPB), stainless steel (A403 WP304/316L), or alloy steel (A234 WP11/WP22), they are engineered to withstand harsh conditions in industries such as oil and gas, petrochemical, power generation, and marine systems.
Large diameter elbows are manufactured using hot-forming, cold-forming, or welding processes, available in seamless or welded (bevel straight seam or spiral-welded) constructions. They come in long radius (LR, R=1.5D) and short radius (SR, R=1.0D) designs, optimizing flow efficiency and minimizing turbulence in high-flow systems. Surface treatments like 3LPE, FBE, or galvanizing enhance corrosion resistance, protecting against pipeline wear in applications involving corrosive fluids, abrasive slurries, or high-temperature gases. Sizes range from DN400 to DN2000, with wall thicknesses from SCH 10 to SCH XXS, and pressure ratings up to 2500 psi.
These elbows undergo rigorous testing, including hydrostatic, ultrasonic, and radiographic inspections, to ensure compliance with industry standards. With tensile strengths of 415-585 MPa (A234 WPB) and yield strengths of 240 MPa, they perform reliably under high-pressure and high-temperature conditions (up to 600°C). The butt-weld or seamless design ensures a secure, leak-proof connection, critical for high-pressure elbow applications in boiler pipeline protection, refineries, and offshore pipelines. Installation requires precise beveling, alignment, and welding to maintain structural integrity.
Compared to smaller elbows or threaded fittings, large diameter elbows are tailored for large-scale systems, offering superior strength and adaptability for complex piping layouts. Their ability to handle abrasive materials, such as ash or slurries, makes them ideal for pneumatic conveying systems, while their corrosion-resistant properties suit chemical plants and subsea applications. Long radius elbows reduce flow resistance, while short radius elbows are preferred in space-constrained environments, providing versatile pipeline wear solutions.
Large diameter elbows address challenges like pipeline corrosion, thermal stress, and wear in demanding industrial environments. Their robust construction, compliance with stringent standards, and material versatility make them a preferred choice for engineers seeking reliable solutions for industrial piping. Whether used in high-pressure boiler systems, petrochemical plants, or offshore pipelines, these elbows deliver exceptional performance, safety, and longevity.
| Element | ASTM A234 WPB (%) | ASTM A403 WP316L (%) |
|---|---|---|
| Carbon (C) | 0.30 max | 0.03 max |
| Manganese (Mn) | 0.29-1.06 | 2.00 max |
| Phosphorus (P) | 0.050 max | 0.045 max |
| Sulfur (S) | 0.058 max | 0.03 max |
| Silicon (Si) | 0.10 min | 0.75 max |
| Chromium (Cr) | 0.40 max | 16.0-18.0 |
| Nickel (Ni) | 0.40 max | 10.0-14.0 |
| Molybdenum (Mo) | 0.15 max | 2.0-3.0 |
| Property | ASTM A234 WPB | ASTM A403 WP316L |
|---|---|---|
| Tensile Strength, min (MPa) | 415-585 | 515 |
| Yield Strength, min (MPa) | 240 | 205 |
| Elongation, min (%) | 22 | 30 |
| Hardness, max (HBW) | 197 | 217 |
| Feature | Large Diameter Elbow | Socket Weld Elbow | Threaded Elbow |
|---|---|---|---|
| Material Type | Carbon/Stainless/Alloy Steel | Carbon/Stainless Steel | Carbon/Stainless Steel |
| Connection Type | Butt Weld/Seamless | Socket Weld | Threaded |
| Corrosion Resistance | Excellent (Coatings available) | Good (Coatings needed) | Moderate |
| Applications | High-Pressure, Large-Scale | Small-Diameter Systems | Low-Pressure Systems |
| Tensile Strength (MPa) | 415-585 (min) | 415-515 (min) | 415-485 (min) |
| Installation Complexity | Moderate (Welding required) | Low (Socket insertion) | Low (Threaded connection) |
| Key Advantage | High-pressure durability | Ease of installation | Easy maintenance |
Enhanced by coatings like 3LPE or stainless steel for harsh environments.
Withstands pressures up to 2500 psi.
Ideal for boiler systems, petrochemical, and offshore pipelines.
Handles abrasive materials and high temperatures.
Long radius design minimizes pressure drops.
Reduces maintenance and replacement costs.
Allows for efficient splitting or combining of fluid flows in complex piping layouts.
Designed to maintain the strength and integrity of the piping system.
Available to suit various pipe diameters, pressure ratings, and fluid compatibility.
Smooth internal contours minimize turbulence and pressure loss.
Different connection types offer flexibility in installation.
Manufactured from high-quality materials for long service life.
Description: All three openings are equal in diameter.
Description: One opening is smaller than the others.
Description: Internal bars to prevent pig entry.
Description: Branch connection at an angle (e.g., 45°).
Description: Curved branch for clean-out plug.
Description: Four equal-sized female openings.
| Material Type | Standards & Grades | Characteristics | Applications |
|---|---|---|---|
| Carbon Steel | ASTM A234 WPB, A420 WPL6, A105 | High strength, cost-effective, good weldability | General industrial piping, oil & gas, power generation |
| Stainless Steel | ASTM A403 WP304/304L, WP316/316L, WP321, WP347 | Excellent corrosion resistance, hygienic properties | Chemical processing, food & beverage, pharmaceutical |
| Alloy Steel | ASTM A234 WP1, WP5, WP9, WP11, WP22, WP91 | Enhanced strength, high-temperature resistance | High-temperature and high-pressure services |
Robust & Economical
Corrosion Resistant
High Performance
Install pipe tee

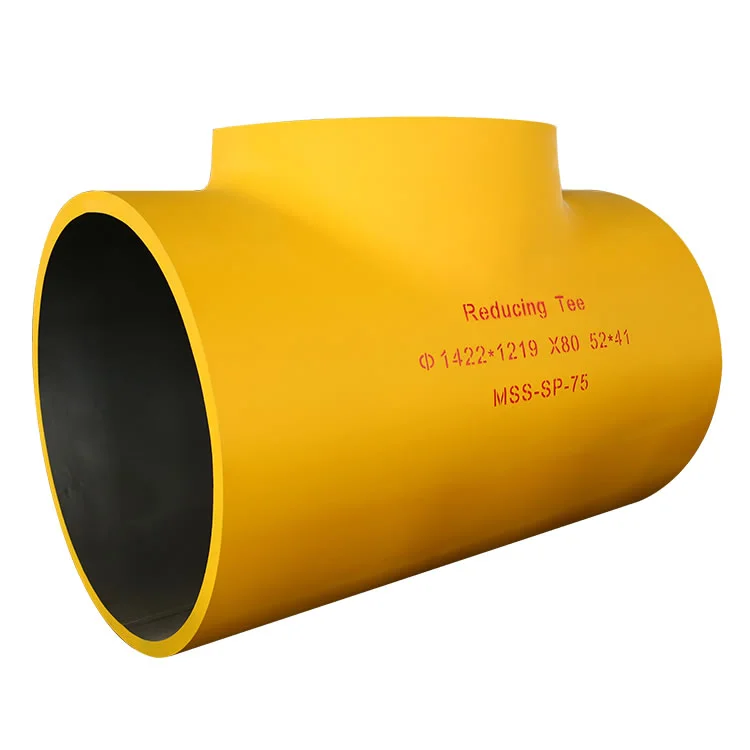

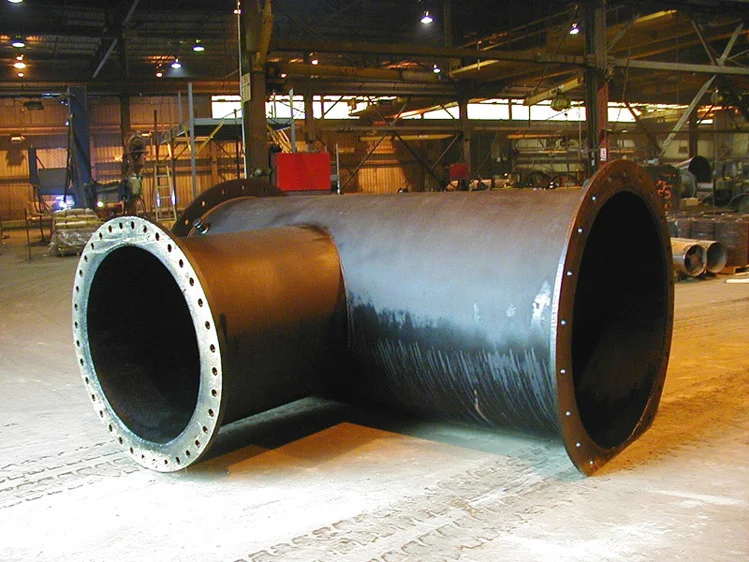

The basic application of the Large Diameter Welding Tee is a connector that can be used in the middle of two pipes to allow them to join together.
Understanding the various pipe tee types allows engineers and contractors to make more informed decisions based on flow requirements, space limits, and material compatibility. Newzel Industries offers a diverse range of pipe tees in several grades, including SS 304, 316, and 321, all fabricated with accuracy to meet your industrial requirements. Contact us today for an estimate or technical assistance in determining the optimal pipe tee type for your project.
