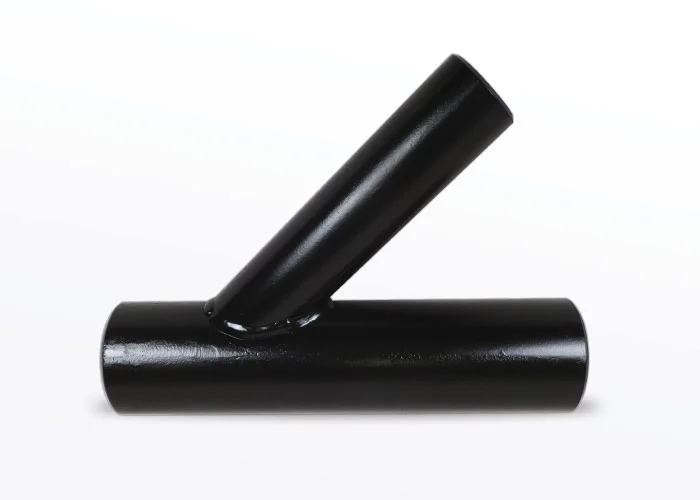

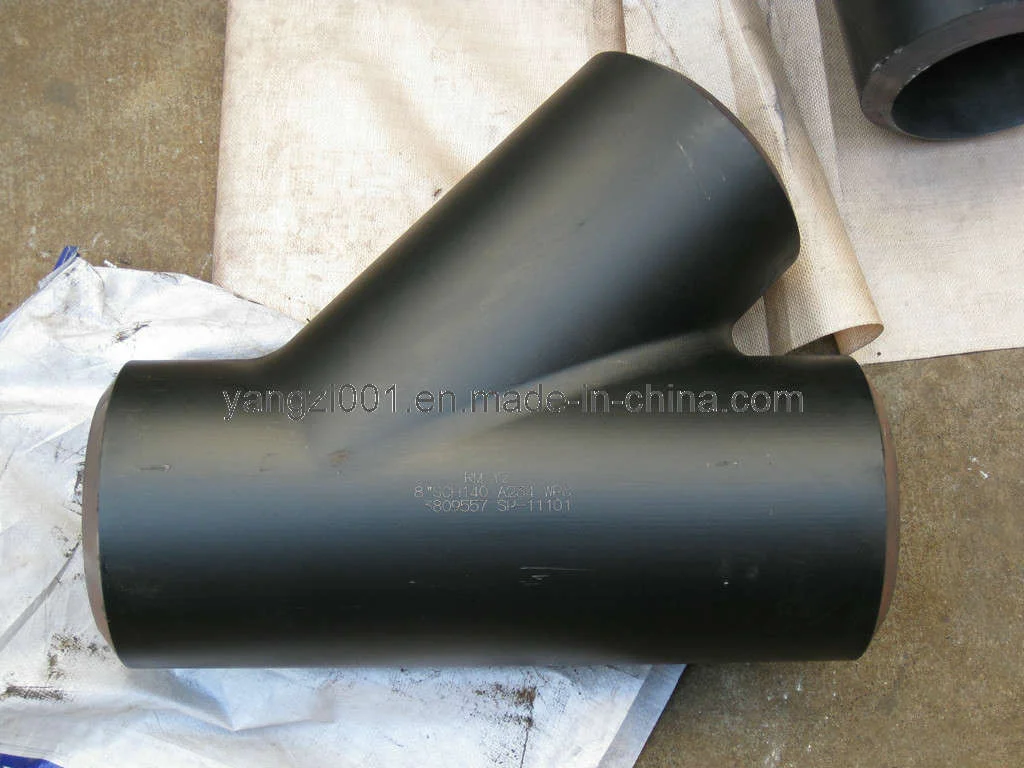

p class="lead"> Y Tee, also known as a Y-shaped tee or lateral tee, is a pipe fitting designed to create a 45-degree branch connection in industrial piping systems, ensuring smoother fluid flow compared to standard 90-degree tees. Compliant with ASME B16.9 and ASTM standards, Y tees are crafted from materials like stainless steel (ASTM A403 WP304/316L), carbon steel (ASTM A234 WPB), or alloy steel, offering exceptional corrosion resistance and durability. These fittings are ideal for high-pressure and high-temperature applications in industries such as oil and gas, petrochemical, power generation, and chemical processing, providing reliable boiler pipeline protection.

The Y tee features a 45-degree branch angle, which reduces turbulence and frictional loss, enhancing flow efficiency in pipelines transporting liquids, gases, or slurries. Available in sizes from 1/2” to 48” (DN15 to DN1200) and wall thicknesses from SCH 10 to SCH 160, Y tees can be customized with coatings like 3LPE or epoxy to bolster corrosion resistance. They are suitable for pressures up to 6000 psi and temperatures ranging from -20°C to 600°C, making them a preferred choice for pipeline wear solutions in demanding environments.

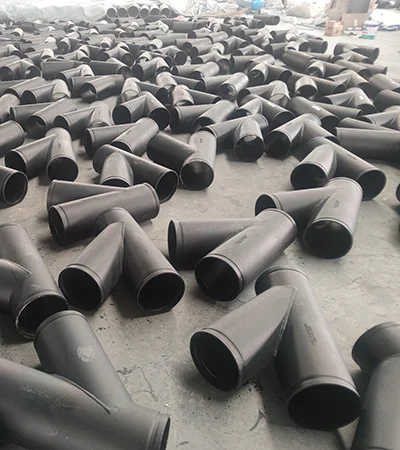

Y tees are manufactured through processes like cold extrusion or hot pushing, with seamless or welded options to suit project requirements. They undergo rigorous testing, including hydrostatic, ultrasonic, and tensile tests, to ensure compliance with standards like ASTM A403 and MSS SP-75. With tensile strengths of 515 MPa (WP316L) and yield strengths of 205 MPa, Y tees provide robust performance in corrosive environments, such as those handling acidic fluids or hydrogen sulfide. Their design supports butt-weld, socket-weld, or threaded connections, offering versatility for complex piping layouts.

Compared to standard tees, Y tees offer reduced flow resistance due to their angled branch, making them ideal for applications requiring minimal turbulence, such as pneumatic conveying systems or slurry transport. Their corrosion resistance is enhanced by materials like stainless steel or protective linings, ensuring longevity in harsh conditions. Y tees are also used in sanitary applications, such as food and beverage or pharmaceutical industries, due to their non-reactive properties and smooth internal surfaces.

Y tees address critical challenges like pipeline wear, corrosion, and flow efficiency in high-throughput systems. Their optimized design and durable construction make them a reliable choice for engineers seeking effective industrial piping solutions for boiler pipeline protection and other critical applications.

A Y Tee, also known as a Lateral Tee, is a pipe fitting designed to connect three pipes at a 90-degree angle. The shape resembles the letter "Y", making it suitable for applications where fluid or gas flow needs to be divided or redirected.

Y Tees are widely used in water distribution networks, HVAC systems, and industrial piping where a branch line is required from the main pipeline. They allow efficient flow distribution and minimize turbulence.

These fittings are manufactured from a variety of materials such as carbon steel, stainless steel, and alloy steel, and are available in different pressure ratings and wall thicknesses. The connection ends can be threaded, flanged, or butt-welded depending on system requirements.

Depending on the application, Y Tees can feature equal-sized outlets or reducing outlets to match the pipeline configuration.
