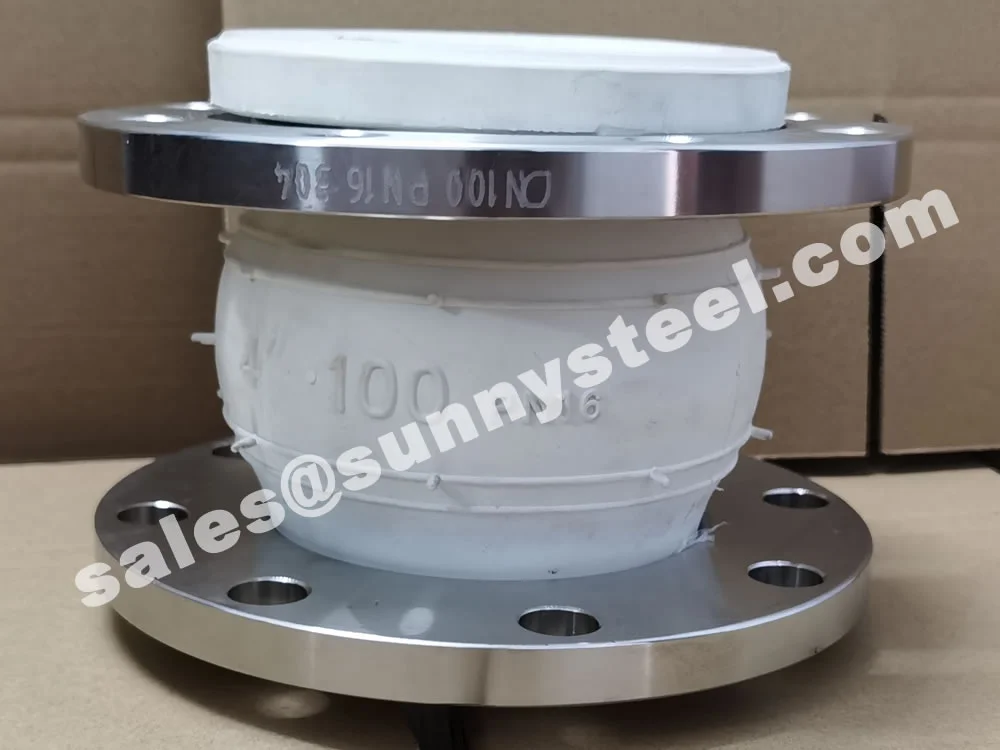

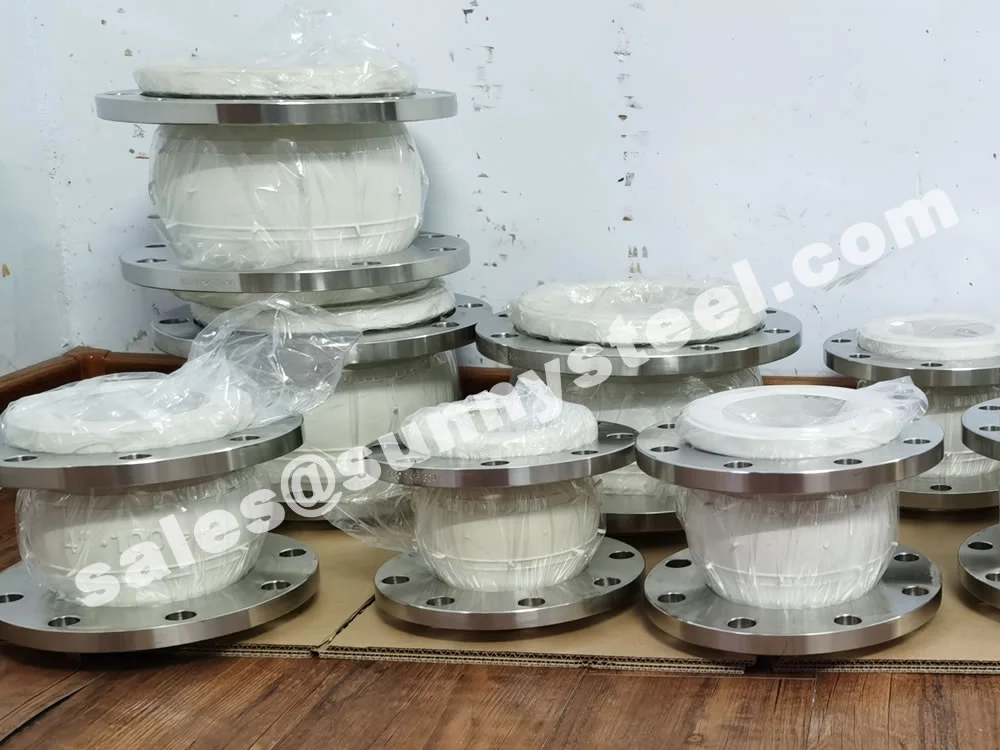

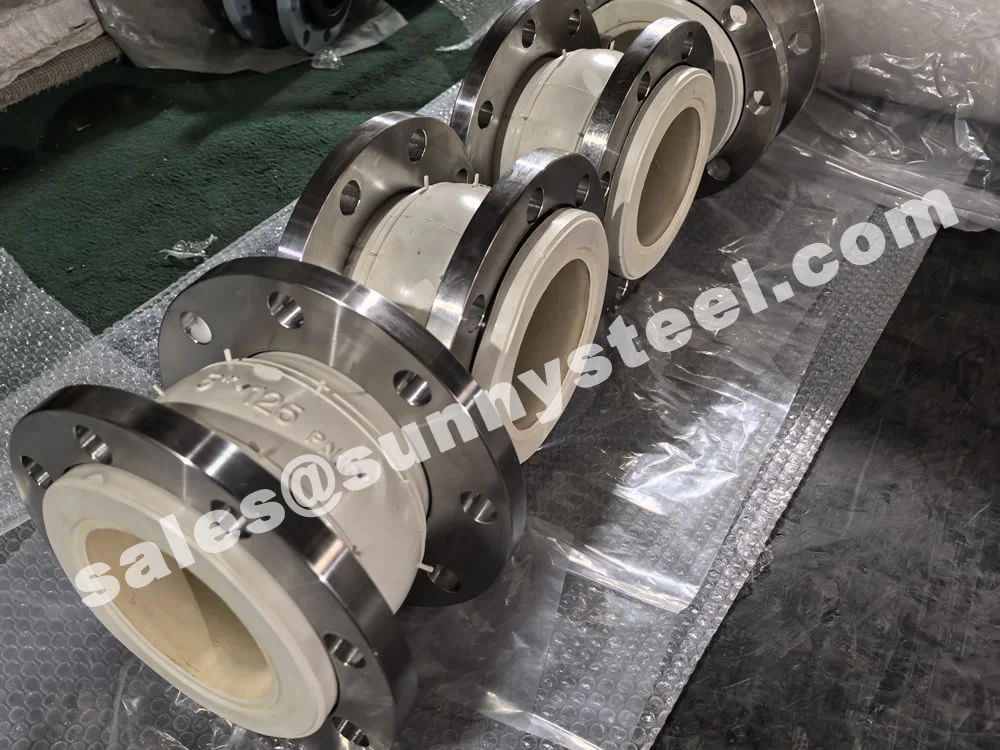

Food Grade Rubber Expansion Joint, also known as a sanitary rubber joint or flexible connector, is a specialized component designed for food processing piping systems. These joints are crafted from FDA-approved elastomers such as silicone, white EPDM, or white NBR, reinforced with nylon cord or stainless steel (SS316) flanges, ensuring corrosion resistance and compliance with stringent hygiene standards. They are ideal for applications in food and beverage, pharmaceutical, and clean water systems, providing hygienic piping protection by absorbing vibration, reducing noise, and compensating for thermal expansion.

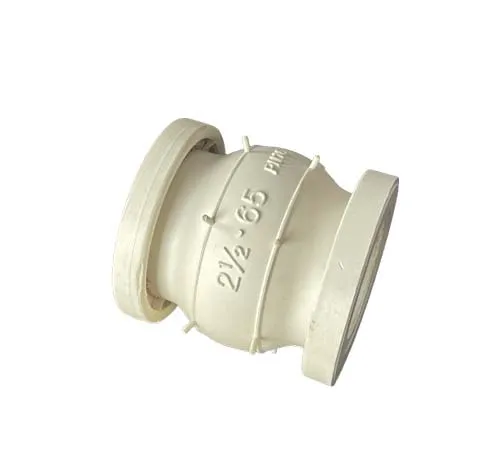

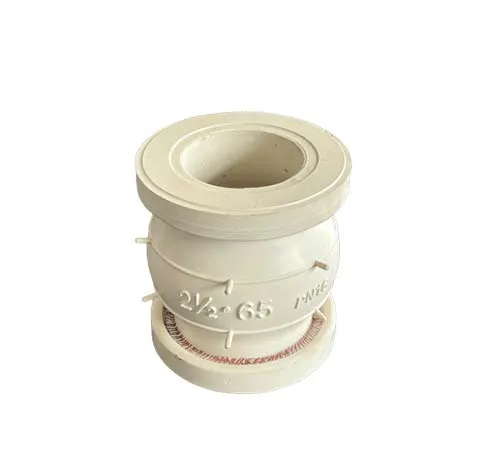

This rubber expansion joint is food safe, made of FDA approved EPDM rubber material and offers great resistance to oils and greases. The food safe rubber expansion joint is suitable for foodstuff, good for pulps, flour, juices and wines.. The base material for the food safe rubber expansion joint White Ethylene Propylene Diene Monomer.

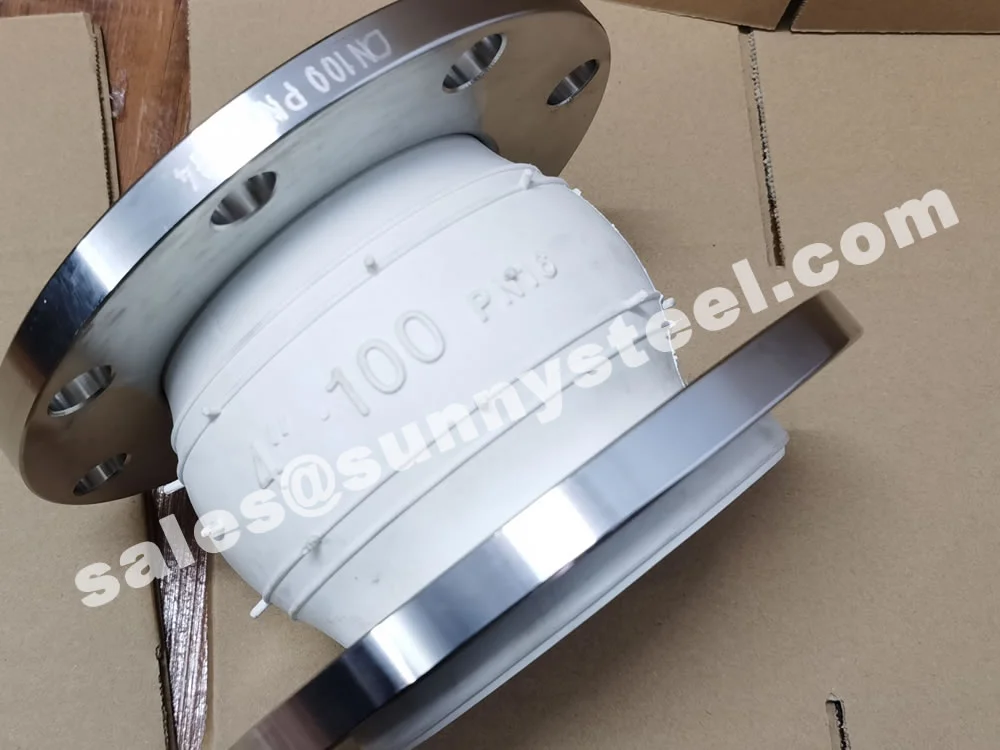

The food grade rubber expansion joint features a flexible bellows design that accommodates axial, lateral, and angular movements, minimizing pipeline stress from temperature changes or mechanical vibrations. Available in sizes from 1” to 24” (DN25 to DN600) with pressure ratings up to 25 bar, these joints operate in temperatures from -15°C to 120°C, depending on the material. Their non-toxic, odorless construction ensures product purity, while PTFE linings or stainless steel flanges enhance corrosion resistance, making them suitable for handling foodstuff like juices, wines, pulps, and oil-containing products in sanitary pipeline solutions.

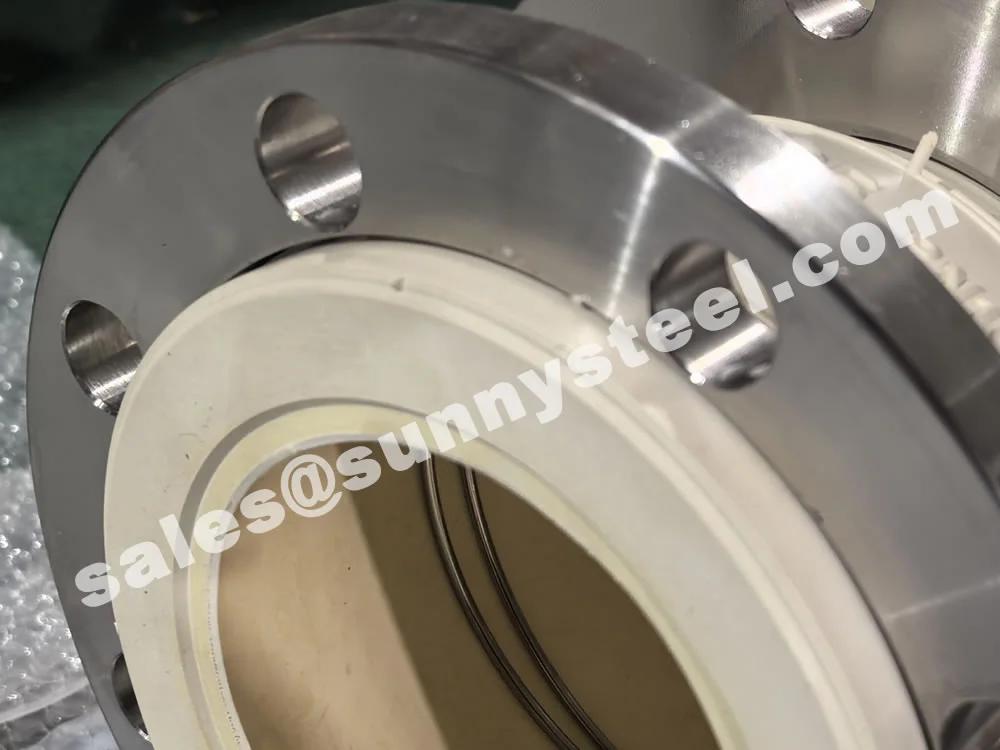

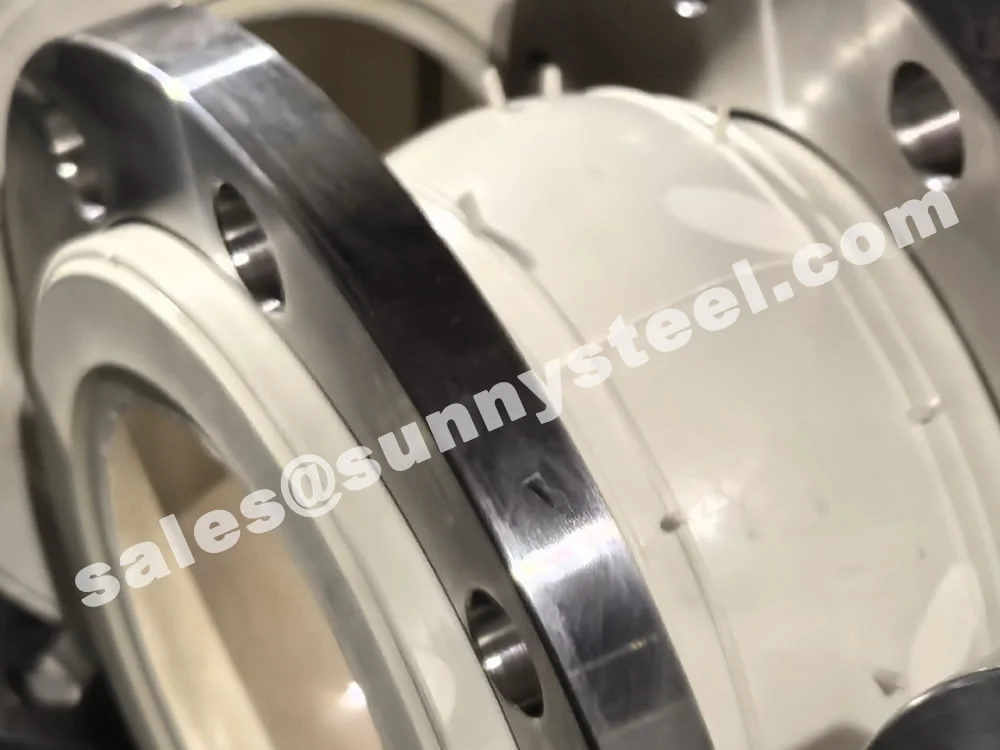

Manufactured through high-pressure vulcanization, food grade rubber expansion joints undergo rigorous testing, including pressure, burst, and hygiene compliance tests, to meet standards like FDA, RAL, and WRAS. Their high elasticity reduces noise by up to 20 decibels and mitigates pipeline wear, extending system lifespan. These joints support flanged or threaded connections, offering versatility for food processing plants, breweries, and pharmaceutical facilities. The use of food-grade silicone or EPDM ensures resistance to bacteria and chemicals, maintaining sanitary conditions.
Compared to standard rubber expansion joints, food grade rubber expansion joints are specifically engineered for hygienic applications, prioritizing non-toxic materials and ease of cleaning. Their lightweight design and simple installation reduce maintenance costs, while materials like white NBR provide excellent resistance to oils and greases, ideal for food processing environments. These joints are less suited for extreme high-temperature applications but excel in hygienic piping protection where cleanliness and flexibility are critical.
Food grade rubber expansion joints address challenges like pipeline stress, corrosion, and contamination in food and beverage systems. Their sanitary, corrosion-resistant design makes them a reliable choice for engineers seeking safe, durable food processing piping solutions, ensuring compliance with health standards and operational efficiency.

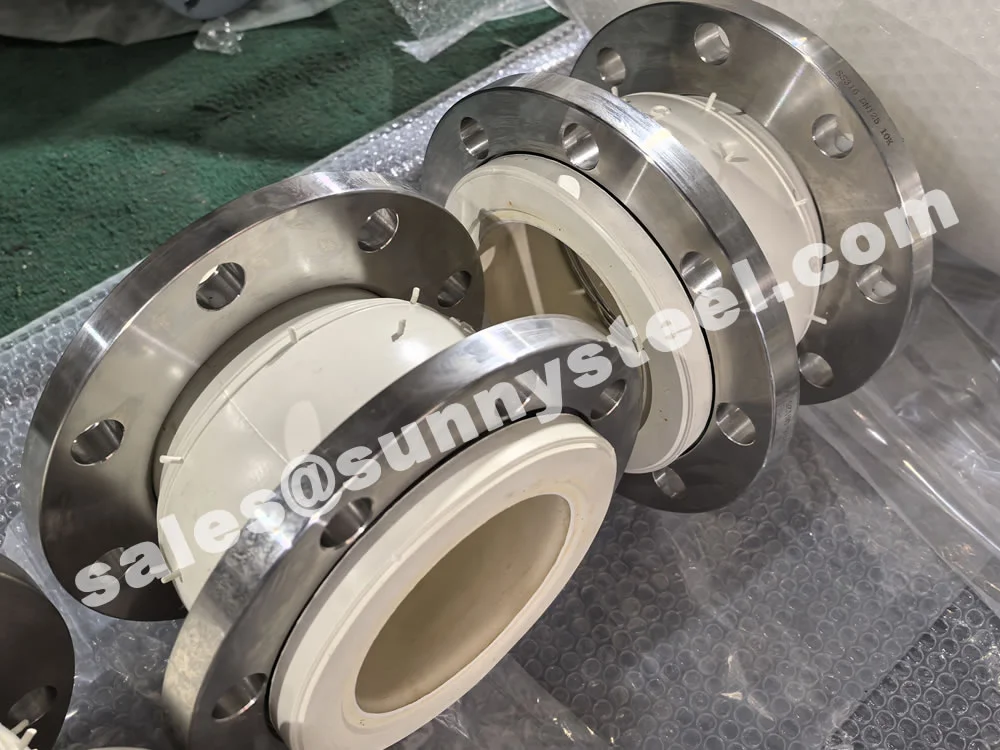

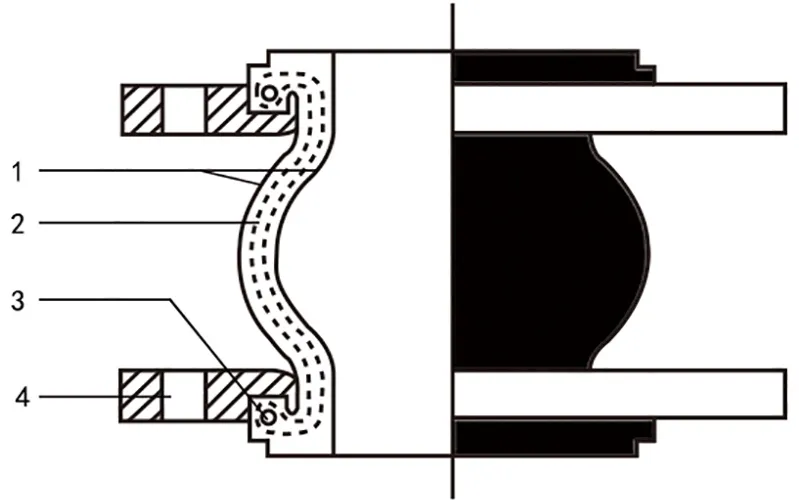

| No. | Name | Material |
|---|---|---|
| 1 | Inner and outer layer | Food grade silicone rubber |
| 2 | Frame | Nylon fabric cord |
| 3 | Stabilizing ring | Steel wire strand |
| 4 | Flange | Stainless steel 304 or 316 or 321 |
| Nominal diameter | Length (mm) |
Axial displacement | Horizontal movement (mm) |
Deflexion angle |
Special length (mm) |
||
|---|---|---|---|---|---|---|---|
| mm | inch | Compression (mm) |
Extension (mm) |
||||
| 32 | 1 1/4 | 95 | 9 | 6 | 9 | 15° | 130/150/200 |
| 40 | 1 1/2 | 95 | 10 | 6 | 9 | 15° | 130/150/200 |
| 50 | 2 | 105 | 10 | 7 | 10 | 15° | 130/150/200 |
| 65 | 2 1/2 | 115 | 13 | 7 | 11 | 15° | 130/150/200 |
| 80 | 3 | 135 | 15 | 8 | 12 | 15° | 130/150/200 |
| 100 | 4 | 150 | 19 | 10 | 13 | 15° | 130/200 |
| 125 | 5 | 165 | 19 | 12 | 13 | 15° | 130/150/200 |
| 150 | 6 | 180 | 20 | 12 | 14 | 15° | 130/150/200 |
| 200 | 8 | 210 | 25 | 16 | 22 | 15° | 130/150/200 |
| 250 | 10 | 230 | 25 | 16 | 22 | 15° | 130/150/200 |
| 300 | 12 | 245 | 25 | 16 | 22 | 15° | 130/150/200 |
| 350 | 14 | 255 | 25 | 16 | 22 | 15° | 130/150/200 |
| 400 | 16 | 255 | 25 | 16 | 22 | 15° | 130/150/200 |
| 450 | 18 | 255 | 25 | 16 | 22 | 15° | 200 |
| 500 | 20 | 255 | 25 | 16 | 22 | 15° | 200 |
| 600 | 24 | 260 | 25 | 16 | 22 | 15° | 200/300 |
| Material | Silicone | White EPDM | White NBR |
|---|---|---|---|
| Temperature Range (°C) | -60 to 250 | -20 to 120 | -20 to 100 |
| Tensile Strength (MPa) | 8-12 | 10-15 | 10-14 |
| Elongation at Break (%) | 300-700 | 300-600 | 300-500 |
| Hardness (Shore A) | 50-70 | 60-80 | 60-75 |
| Chemical Resistance | Excellent (ozone, heat) | Excellent (acids, alkalis) | Good (oils, greases) |
| Property | Value |
|---|---|
| Pressure Rating (bar) | Up to 25 |
| Axial Movement (mm) | ±10 to ±40 |
| Lateral Movement (mm) | ±5 to ±25 |
| Angular Deflection (°) | Up to 12 |
| Noise Reduction (dB) | 10-20 |
Food grade rubber expansion joints offer a reliable solution for ensuring safety, flexibility, and efficiency in food processing operations. When choosing a supplier, look for reputable manufacturers that meet industry standards and have a proven track record of delivering high-quality products.
Whether you require expansion joints for a food processing facility, brewery, or pharmaceutical plant, finding a trusted supplier is essential. Ensure the seamless flow of your food processing operations with premium food grade rubber expansion joints.
1.Outstanding pressure resistance
It excels in pressure resistance by the combination of spherical structure with super stability against internal pressure and strong special reinforcing nylon. We flexible connector display an outstanding pressure resistance of bursting pressure.
2.Superior absorption of vibration-noise-shock
We single sphere flexible rubber joint are engineered to reduce vibration ,noise and movenment inherent in piping systems.Joint installation of the We will enable the isolated equipment to move freely ,eliminating vibration and repelling sound which is prevalent in metallic type joint.
3.Compensate greater elongation, compression , lateral and angular movement
Equipment such as pump ,chillers,cooling tower,compressors and piping systems move out of alignment due to wear,load stress and during the setting of foundation blocks.We flexible connector for lateral ,torsional and angular movement to prevent damage ,which elimate costly downtime in plant operation.
Absorb greater movements compared to similar length metal expansion joints, managing lateral, torsional and angular movements effectively.
Dampen disturbances and provide resistance against shock stress from hydraulic surge and water hammer.
Dampen sound transmission with rubber to steel interface, reducing unwanted noise from system imbalances.
Lightweight and easy to handle, simplifying connections and reducing installation time and labor costs.
Significantly extend service life of piping systems and connected equipment, reducing maintenance frequency.
Effectively compensate for minor misalignments during installation or due to structural settling over time.
| Material | Temperature Range | Key Properties | Applications |
|---|---|---|---|
| EPDM Ethylene Propylene Diene Monomer |
-40°C to +120°C | Water, steam, ozone, weathering resistance | HVAC, water, wastewater systems |
| Nitrile (Buna-N) Acrylonitrile Butadiene |
-30°C to +100°C | Oil, fuel, chemical resistance | Petroleum-based applications |
| Hypalon Chlorosulfonated Polyethylene |
-40°C to +135°C | Ozone, weathering, oxidizing chemicals | Chemical processing, marine |
| Viton (FKM) Fluorocarbon |
-20°C to +200°C | High temperature, aggressive chemicals | Chemical, oil & gas, aerospace |
| Natural Rubber Polyisoprene |
-50°C to +80°C | Elasticity, abrasion resistance | General purpose, low chemical exposure |
Food Grade Rubber Expansion Joint are essential in industries requiring flexible, corrosion-resistant solutions for thermal expansion and vibration control in piping systems.
