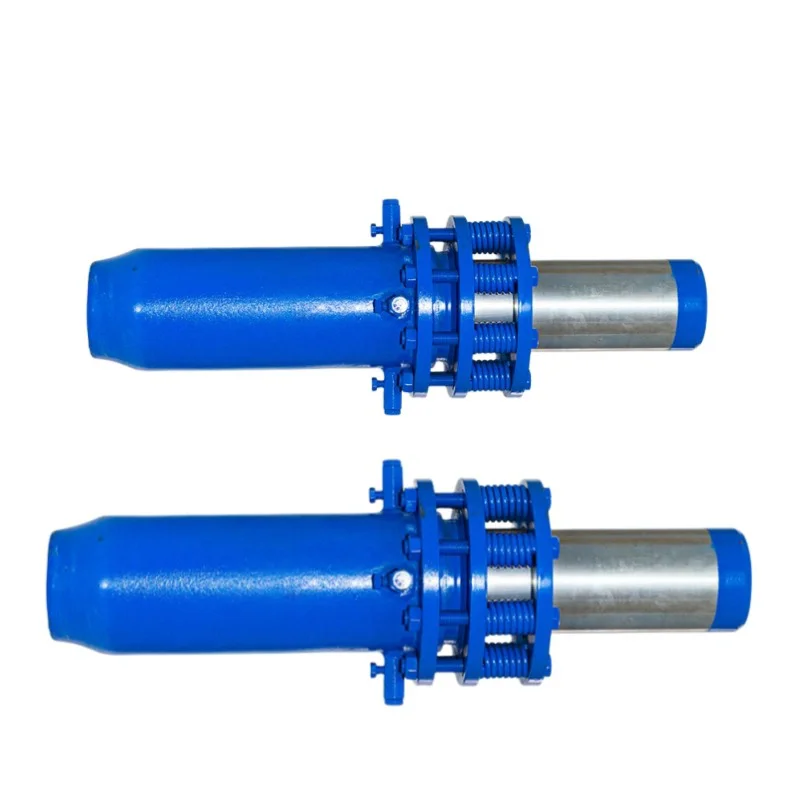

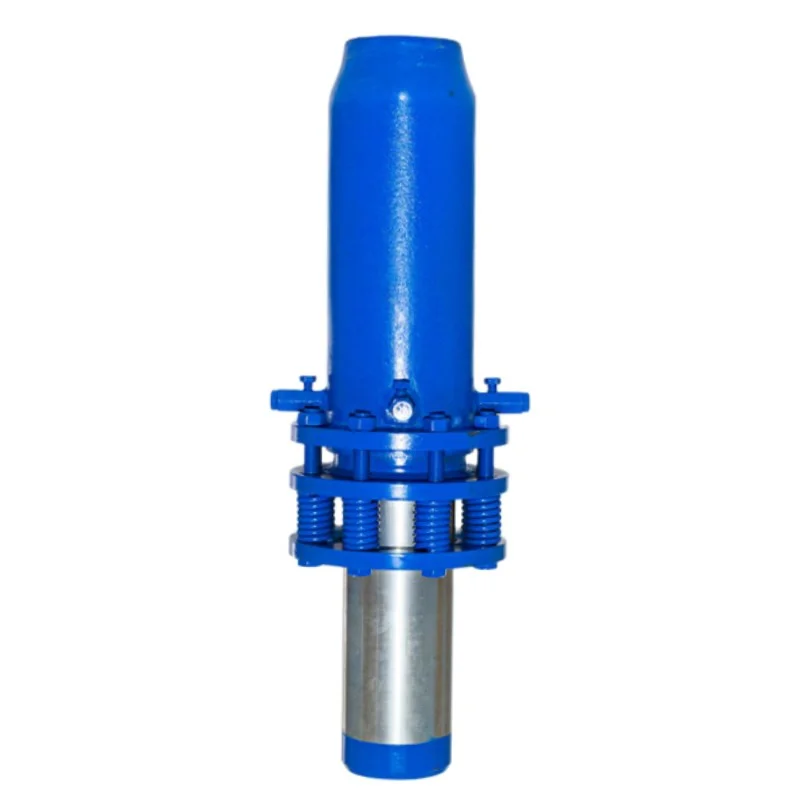

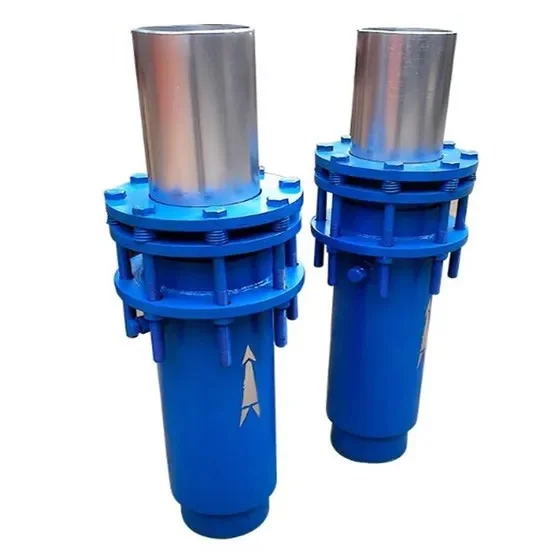

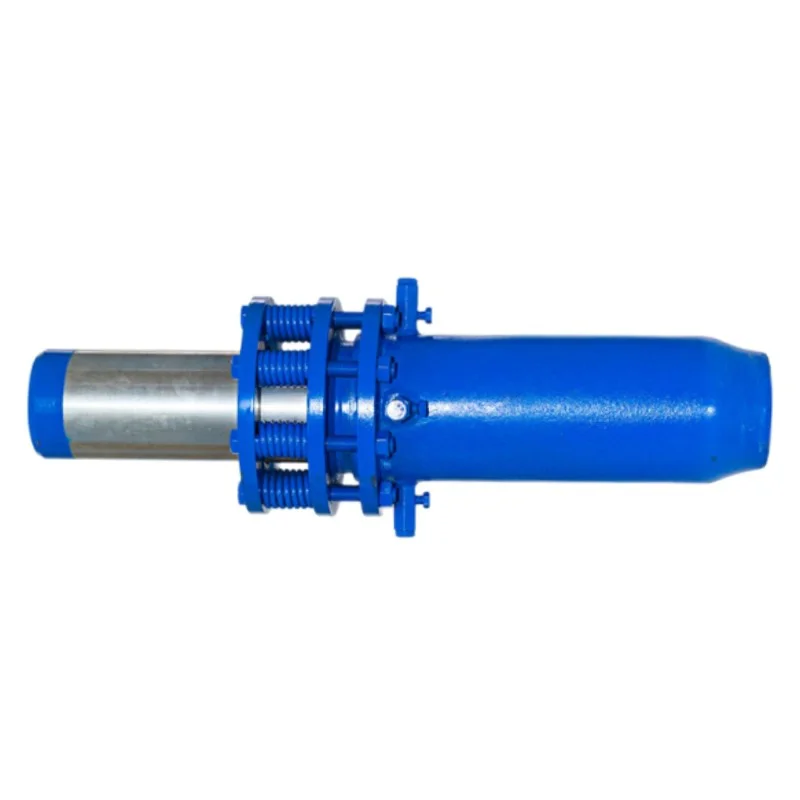

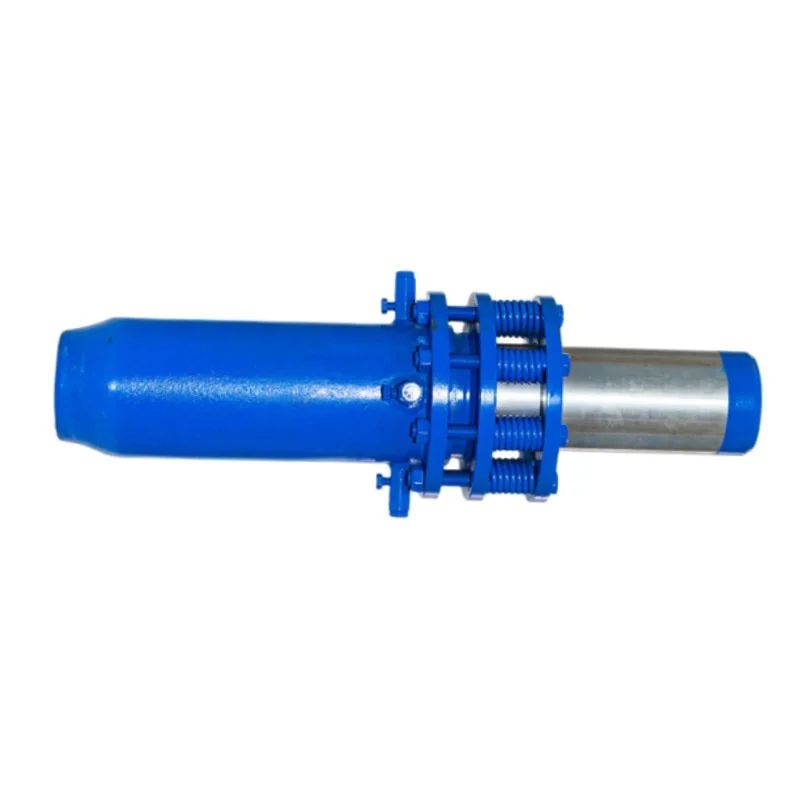

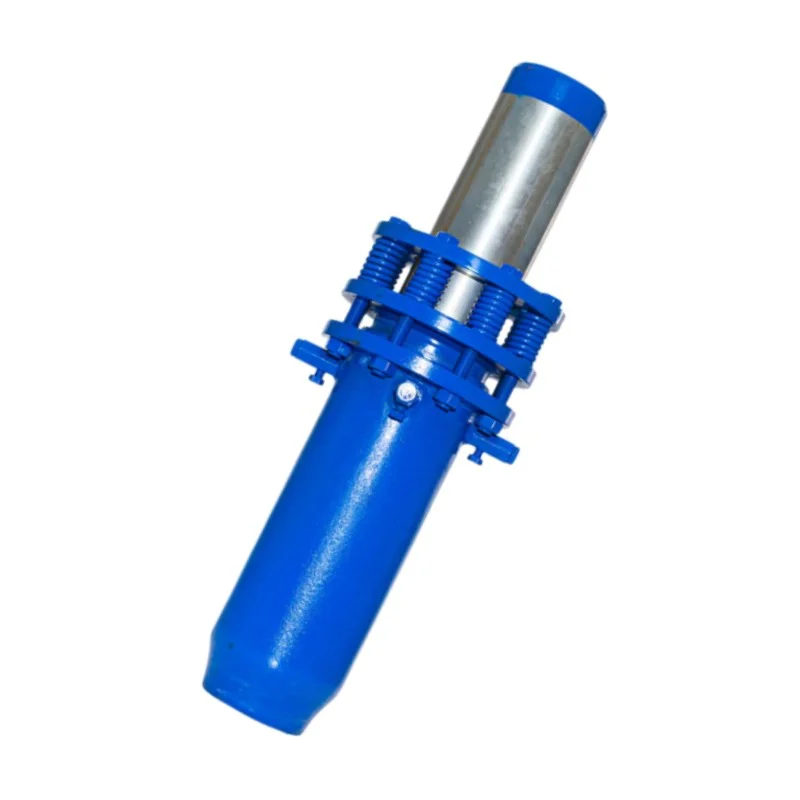

The Single Flow Sleeve Compensator, also known as a pipeline expansion joint, is a critical component designed to absorb thermal expansion and contraction in piping systems, ensuring pipe stress relief. This axial compensator is specifically engineered for single-direction fluid flow, making it ideal for applications in industries such as petrochemical, power generation, district heating, and oil & gas. Its robust design, featuring a sliding sleeve, flexible graphite sealing rings, and a durable outer casing, provides excellent corrosion resistance and long-term reliability in high-temperature and high-pressure environments.
The Single Flow Sleeve Compensator operates by allowing the inner sleeve to slide within the outer casing, compensating for axial movements caused by temperature changes or mechanical vibrations. Conforming to standards like GB/T 12777 or EJMA, it is available in sizes ranging from 2" to 48" (DN50 to DN1200), with pressure ratings up to PN25 and operating temperatures exceeding 400°C. Materials such as carbon steel, stainless steel (304/316L), or high-alloy steels ensure durability in corrosive environments, while advanced sealing materials like flexible graphite provide leak-proof performance without aging, reducing maintenance needs.
Unlike bellows-type expansion joints, the Single Flow Sleeve Compensator minimizes thrust forces on adjacent equipment, preventing pipeline distortion and weld failures. Its design eliminates blind plate forces, allowing for fewer and smaller mounting brackets, even in large-diameter pipelines. Rigorous testing, including hydrostatic, sealing integrity, and fatigue tests, ensures compliance with industry standards. The compensator’s simple installation process requires no pre-tightening, making it suitable for both aboveground and buried piping systems, enhancing its role as a thermal expansion absorber.
The Single Flow Sleeve Compensator excels in applications requiring significant axial compensation, such as steam and hot water transmission pipelines. Its ability to handle large compensation distances (up to 500m in a single pipeline section) makes it a cost-effective alternative to natural compensation methods or bellows joints. Optional surface treatments, such as 3LPE or epoxy coatings, further enhance corrosion resistance, while welded or flanged ends ensure compatibility with various piping configurations. This makes it a versatile solution for pipe movement compensation in demanding industrial settings.
In practical use, the Single Flow Sleeve Compensator reduces pipeline stress in power plants, chemical refineries, and heating networks, preventing cracks and leaks that could lead to costly downtime. Its long service life, comparable to the pipeline itself, and minimal maintenance requirements make it an economical choice for engineers seeking reliable pipeline expansion joint solutions for high-throughput systems.
A single flow sleeve compensator typically consists of a flexible sleeve or corrugated pipe that allows for axial movement while maintaining the integrity of the pipeline system. It is designed to compensate for thermal expansion and contraction in a single direction, accommodating the flow of fluids.
Durable, flexible, and cost-efficient expansion solution for pipelines in demanding environments.
The fatigue life is comparable to the pipeline itself. With treated sliding surfaces, the sleeve compensator offers exceptional corrosion resistance—over 50 times better than austenitic stainless steel. Sealing can be restored by tightening the flange or replacing sealing rings, extending usability for years.
Unlike other materials, the sleeve compensator has no requirement on chloride ion content, making it particularly suitable for systems where the medium or surrounding environment has excessive chloride ion levels.
Available in one-way and two-way structures. The two-way type ensures the sliding sleeves at both ends move freely regardless of medium direction, providing greater compensation capacity and efficiency.
Directly buried sleeve compensators can be installed underground without a maintenance well. This reduces engineering costs while ensuring reliable long-term performance in buried pipelines.
| Element | Composition (%) |
|---|---|
| Carbon (C) | ≤0.08 |
| Manganese (Mn) | ≤2.00 |
| Phosphorus (P) | ≤0.045 |
| Sulfur (S) | ≤0.030 |
| Silicon (Si) | ≤1.00 |
| Chromium (Cr) | 18.0-20.0 |
| Nickel (Ni) | 8.0-12.0 |
| Molybdenum (Mo) | - |
| Property | Value |
|---|---|
| Tensile Strength, min (MPa) | 515 |
| Yield Strength, min (MPa) | 205 |
| Elongation, min (%) | 40 (Longitudinal), 30 (Transverse) |
| Hardness, max (HBW) | 201 |
Engineered to meet diverse industrial needs with robust materials and versatile designs.
We are professional in Sleeve compensator include Single flow sleeve compensator, Rotary compensator, Spherical compensator and Non thrust sleeve compensator.
The sleeve type compensator/tube type expansion joint adopts a new type of sealing material flexible graphite ring, which has the characteristics of high strength, no aging, good effect and convenient maintenance. The tubular telescopic joint has a long service life and a fatigue life comparable to that of a pipe.
The sleeve compensator, also known as a pipe-type expansion joint, functions as a compensating device within hot fluid pipelines. Its primary application is in the auxiliary equipment of straight pipelines. It is suitable for conveying hot water, steam, grease, and other media. It achieves thermal expansion compensation through the sliding movement of the inner sleeve relative to the outer sleeve.
The sleeve compensator is designed for use in medium engineering applications with a pressure rating of ≤2.5MPa and is suitable for a temperature range of -40℃ to 600℃.
This compensator employs a new type of sealing material, namely, a flexible graphite ring. This material offers several advantages, including high strength, a low friction coefficient (0.04~0.10), resistance to aging, and effective sealing, along with easy maintenance.
The sleeve compensator boasts a lengthy service life, with fatigue resistance equivalent to that of the pipeline. Its sliding surface is specially treated to provide excellent corrosion resistance, even in saltwater, salt solutions, and similar environments, surpassing austenitic stainless steel by over 50 times. In cases where the sealing effect weakens due to wear over many years, the flange can be retightened to enhance the sealing performance. Alternatively, the bolts can be loosened, the pressure ring can be removed, and one or two layers of sealing rings can be added to compress the pressure ring for continued use.
Specify the correct diameter and length to fit your piping system.
Consider the full operating temperature range for durability and safety.
Match the expansion joint to the type of system and operating conditions.
Identify the media and pressure range for safe, leak-free operation.
Delivery
Inner plastic film packing, outer standard export wooden case packing.
Courier company transport, air freight and sea transport. It depends on your actual order details and quantity.
Single Flow Sleeve Compensator are essential in industries requiring flexible, corrosion-resistant solutions for thermal expansion and vibration control in piping systems.
Absorbs thermal expansion in pipelines and refineries.
Handles corrosive media and vibrations.
Protects boilers and turbines from thermal stress.
Ensures leak-free operation in piping systems.
Manages cryogenic temperatures and vibrations.
Reduces noise and vibration in piping.

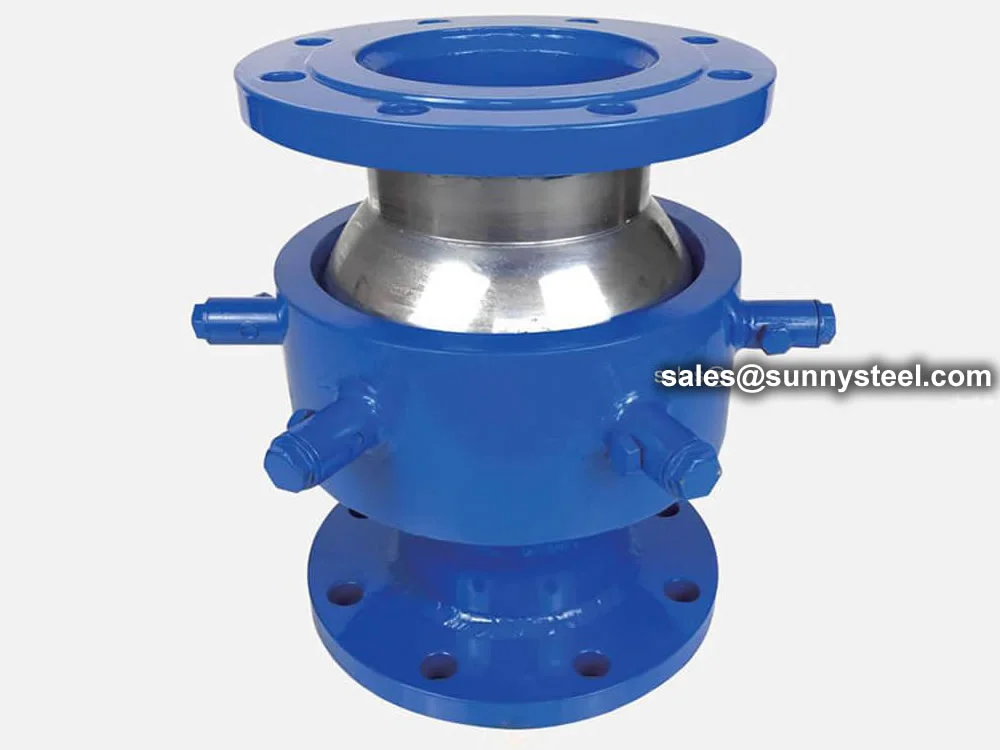

A spherical compensator, also known as a spherical...
