Versatile Couplings For Vibration And Thermal Expansion Management
Flexible couplings provide leak-free, adaptable connections for industrial piping, absorbing vibration and thermal expansion.
Versatile Couplings For Vibration And Thermal Expansion Management
Flexible couplings provide leak-free, adaptable connections for industrial piping, absorbing vibration and thermal expansion.
Flexible Coupling is a key piping system coupling designed to connect pipes while allowing controlled flexibility to accommodate vibration, thermal expansion, contraction, and minor misalignments. These flexible pipe couplings are engineered to meet standards like ASTM A536, ISO 2531, and UL 213, using materials such as ductile iron, stainless steel, or carbon steel, paired with high-quality rubber gaskets (EPDM or NBR) for leak-free performance. Widely used in water supply networks, petrochemical pipelines, HVAC systems, and fire protection systems, flexible couplings provide robust corrosion resistant coupling solutions and boiler pipeline protection under pressures up to 300 PSI (20.7 bar) and temperatures from -30°C to 120°C.

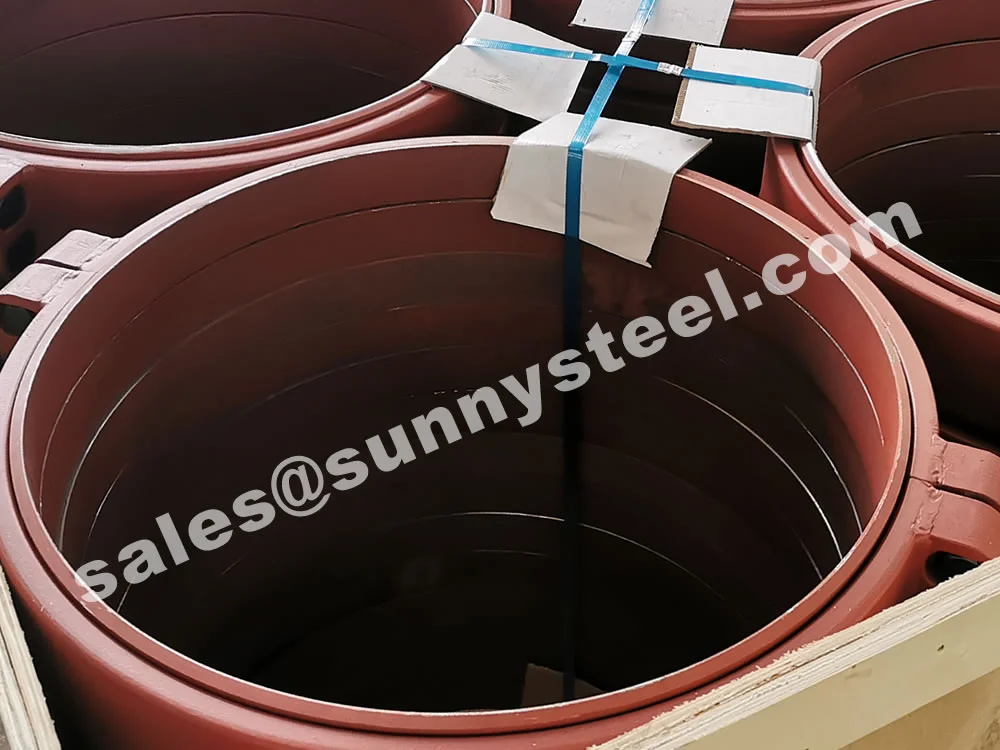

The manufacturing process involves precision casting or forging of the coupling body, typically consisting of two segments with bolted connections and a rubber gasket for sealing. Available in sizes from 1" to 24" (DN25 to DN600), these couplings accommodate pipe outer diameters from 33.7mm to 610mm, with coatings like epoxy, galvanization, or Dacromet to enhance corrosion resistance. The flexible design allows axial movement up to 25mm, angular deflection up to 6°, and lateral offset up to 10mm, reducing stress on pipelines caused by ground settlement or thermal changes. Suitable for steel, ductile iron, PVC, and HDPE pipes, these couplings are ideal for both aboveground and underground applications.
Flexible Couplings undergo stringent testing, including hydrostatic pressure, tensile strength, and sealing integrity tests, to comply with ASTM, ISO, and FM standards. The EPDM or NBR gasket ensures a watertight seal, while the coupling’s material resists corrosion in harsh environments like seawater or chemical fluids. In HVAC systems, these thermal expansion couplings absorb vibrations from pumps and compressors, while in water supply networks, they accommodate ground movement without compromising joint integrity. The bolted design enables rapid installation (10-20 minutes) without welding, making them a cost-effective solution for repairs and new installations.
Compared to rigid couplings or flanged joints, flexible pipe couplings offer superior adaptability, allowing controlled movement to prevent pipeline stress and cracking. They are certified by standards like WRAS and DVGW for potable water and gas applications, respectively, and support configurations like grooved, compression, or flanged ends. Stainless steel variants (e.g., AISI 316) excel in corrosive environments, while ductile iron provides cost efficiency for large-scale water projects. These pipe couplings are particularly effective in fire sprinkler systems, where flexibility ensures reliable performance under dynamic conditions.
Addressing challenges like pipeline leaks, corrosion, vibration, and thermal stress, Flexible Coupling delivers a durable, efficient solution for industrial piping systems. Its ability to absorb dynamic forces, combined with corrosion-resistant materials and easy installation, makes it a preferred choice for engineers seeking reliable boiler pipeline protection. Whether in municipal water systems, petrochemical plants, or HVAC installations, these corrosion resistant couplings ensure long-term performance, safety, and cost efficiency in demanding environments.
Good corrosion resistance, often used in plumbing applications.
Corrosion ResistantExcellent corrosion resistance, suitable for harsh environments and high-purity applications.
Premium GradeCost-effective solution for general purpose applications with good durability.
Cost EffectiveLightweight with good corrosion resistance, used where weight is a concern.
LightweightGood conductivity and corrosion resistance, often used in water systems.
ConductiveDurable with good corrosion resistance, used in marine and industrial applications.
Marine Grade
Besides being used as an important pipe fitting, couplings are also used in the following:
Precise power transmission and motion control in machining operations.
Critical for robotic axes and automated processes in manufacturing.
Ensuring accurate and smooth operation in printing and packaging equipment.
Precision in CNC milling and grinding operations for manufacturing excellence.
Reliable and continuous operation in packaging and assembly lines.
Secure and leak-proof connections for fluid and gas flow systems.
