Astm a358 tp321 is a specification for electric-fusion-welded austenitic chromium-nickel stainless steel pipe suitable for corrosive or high-temperature service.
Astm a358 tp321 is a specification for electric-fusion-welded austenitic chromium-nickel stainless steel pipe suitable for corrosive or high-temperature service.

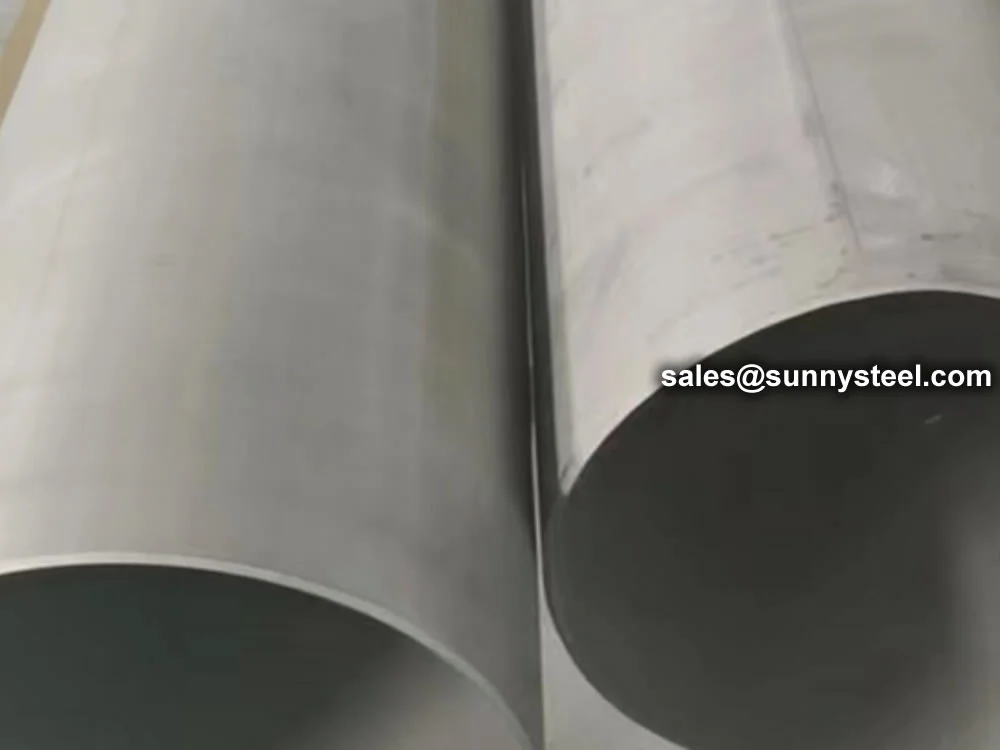

ASTM A358 TP321 Welded Stainless Steel Pipes are premium electric fusion welded (EFW) austenitic stainless steel pipes designed for high-temperature service and corrosive environments. Stabilized with titanium, TP321 offers exceptional resistance to intergranular corrosion during welding and exposure to temperatures up to 900°C, surpassing TP304 in sensitized conditions. Compliant with ASTM A358 specifications for EFW austenitic chromium-nickel stainless steel pipes, these Welded Stainless Pipes are ideal for applications in power generation, chemical processing, and petrochemical industries. Available in Classes 1-5, Class 1 features double welding with filler metal and full radiography for maximum weld integrity.

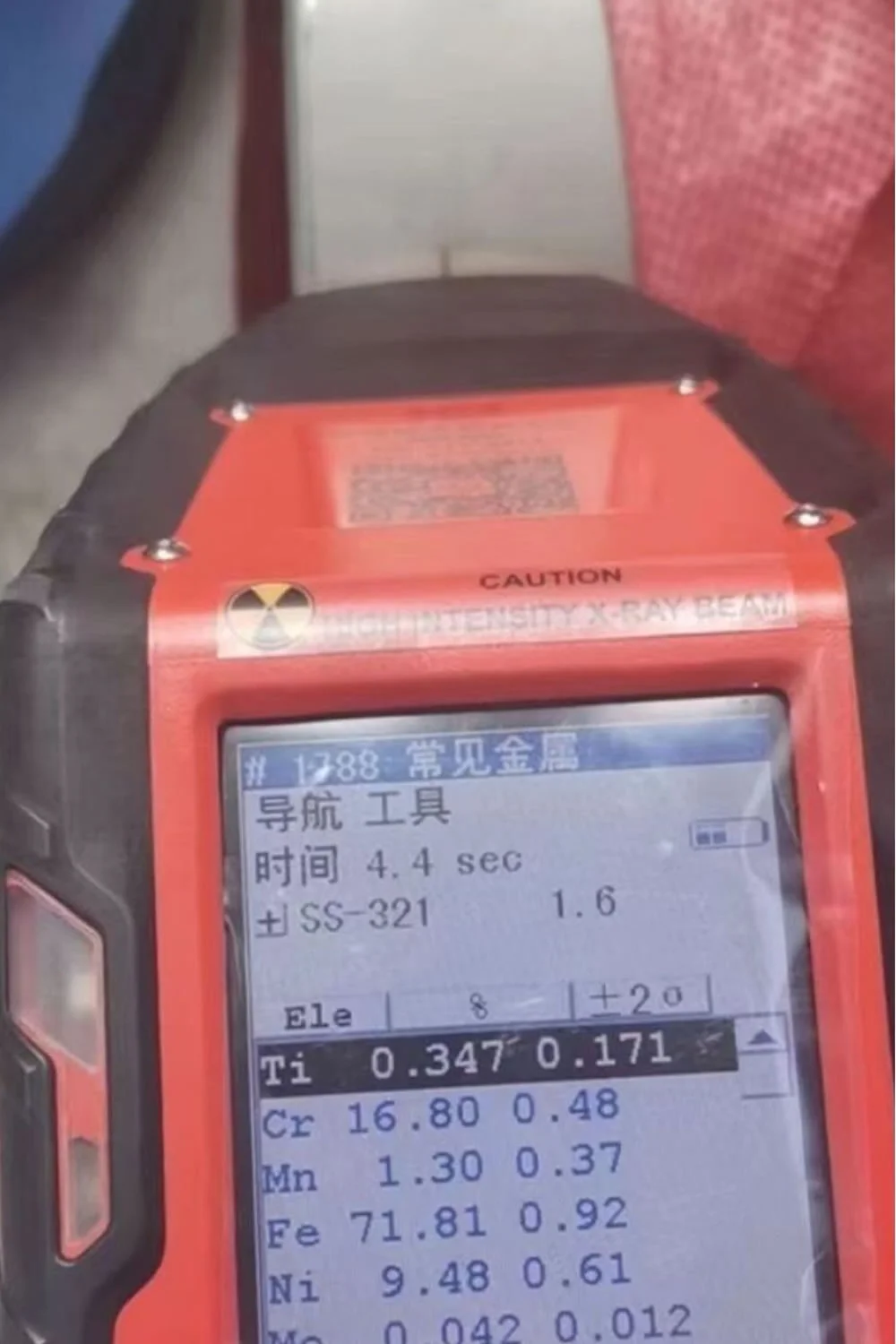

Manufactured through electric fusion welding or submerged arc welding, EFW Stainless Pipes are crafted from high-quality stainless steel strips formed into tubes and welded longitudinally. Post-weld heat treatment, such as solution annealing at 1040-1120°C, relieves stresses and restores corrosion resistance, ensuring mechanical properties like tensile strength ≥515 MPa and yield strength ≥205 MPa. Sizes range from 8" to 110" (DN200 to DN2800) with wall thicknesses from SCH 10S to SCH 160, and lengths up to 12 meters. Surface finishes, including pickled or polished, meet sanitary requirements, while beveled or plain ends facilitate welding. The TP321 composition—17-19% Cr, 9-12% Ni, 0.5% Ti—prevents carbide precipitation, enhancing weldability without post-weld annealing in many cases.
These High Temperature Stainless Pipes excel in superheater, boiler, and heat exchanger applications, offering superior resistance to oxidation and scaling. Their Corrosion Resistant Welded Pipe properties make them suitable for handling acids, chlorides, and sulfurous gases in refineries or pulp and paper mills. Double-welded construction with filler metal and radiographic testing ensures leak-free performance, with hydrostatic tests at 1.5x rated pressure confirming durability. Compared to seamless ASTM A312 TP321 pipes, A358 EFW pipes are more cost-effective for large diameters, delivering comparable strength with rigorously inspected welds via UT or RT.
Customizable for Class 1 (full radiography) or Class 5 (spot radiography), ASTM A358 TP321 Pipes support pigging in pipelines and comply with NACE MR0175 for sour service. Their low thermal expansion and high creep resistance make them ideal for nuclear and aerospace applications. Long-tail keywords like “ASTM A358 TP321 welded stainless steel pipe for chemical processing” or “EFW TP321 pipe for high-temperature boiler service” align with API 5L standards. With a lifespan of up to 50 years and 30-40% lower lifecycle costs compared to carbon steel, these pipes ensure reliable fluid transport in harsh conditions.
Addressing challenges like weld sensitization and pitting in corrosive media, TP321’s titanium stabilization prevents carbide formation, maintaining ductility post-welding. Their 100% recyclability supports sustainable practices, aligning with eco-friendly regulations. Whether used in superheater tubes for power plants or pressure vessels in petrochemicals, ASTM A358 TP321 Welded Stainless Steel Pipes deliver unmatched performance, safety, and efficiency for global industrial demands.
