Cast Basalt Tile Lined Fittings

Cast Basalt Tile Lined Fittings

Superior Wear Protection

Cast basalt tile-lined fittings are components utilized in various applications requiring high abrasion resistance.

Cast Basalt Tile Lined Fittings

Superior Wear Protection

Cast basalt tile-lined fittings are components utilized in various applications requiring high abrasion resistance.

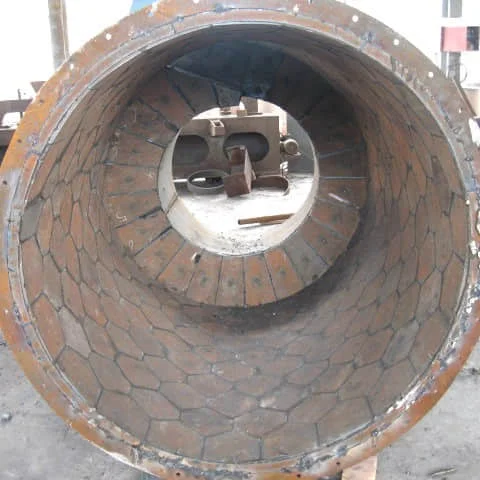

Cast Basalt Tile Lined Fittings (Image 1)

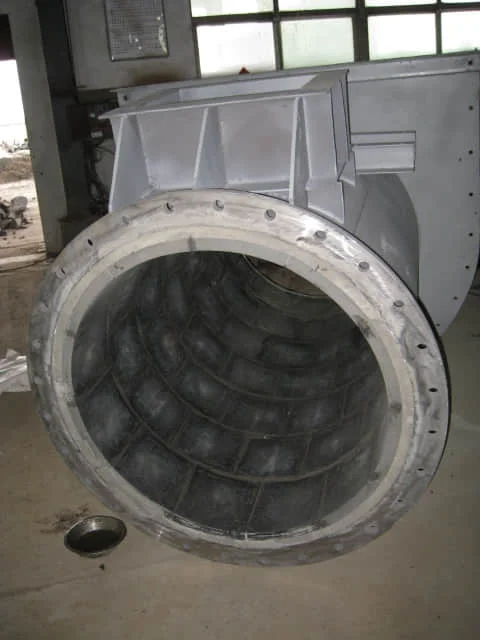

Cast Basalt Tile Lined Fittings (Image 2)

These cast basalt tiles are bedded as well as jointed in cement/special bonding agents like resins depending upon application. Typically, these fittings are crafted by combining a steel pipe or fitting with a cast basalt lining. The cast basalt tiles are firmly bonded to the inner surface of the fitting using cement mortar or other suitable bonding materials.

These fittings find application in abrasive material and ash handling systems, including chute slip troughs, funnels, silos, and dust catchers. They offer outstanding protection against wear and corrosion in these challenging environments.

The dimensions and specifications of cast basalt tile-lined fittings can vary based on user requirements. They can be manufactured in different sizes and shapes to meet specific needs. The fittings may include elbows, tees, laterals, and other types commonly used in piping systems.

The walls are lined with hexagonal or rectangular tiles. Circular bunker and silos are lined with radial rectangular or hexagonal form pieces, exactly fitting the respective circumference.

Basalt casts are considered the best lining materials for industries dealing with abrasion resistance. The other application areas of basalt casts are bends, lining pipers and trenches.

The nominal diameter series of cast basalt lined steel elbow pipe is the same as the cast basalt lined steel straight pipe , the turning radius and central Angle can be made according to the requirements of customers.

The technical parameters of the coat steel of cast basalt lined steel pipe according to the operating pressure of the pipeline system to determine.

Advantages

  1. Fused cast basalt surfaces remain smooth and low in friction when used over time, thereby offering the benefit of low caking.
  2. Fused cast basalt provides excellent protection against the following abrasive media: ore - sinter - ash - slag - sand - coal - clinker.
