Hot-Rolled Stainless Steel C Sections with Inside Radius Corners for Structural Applications Requiring Greater Strength and Corrosion Resistance

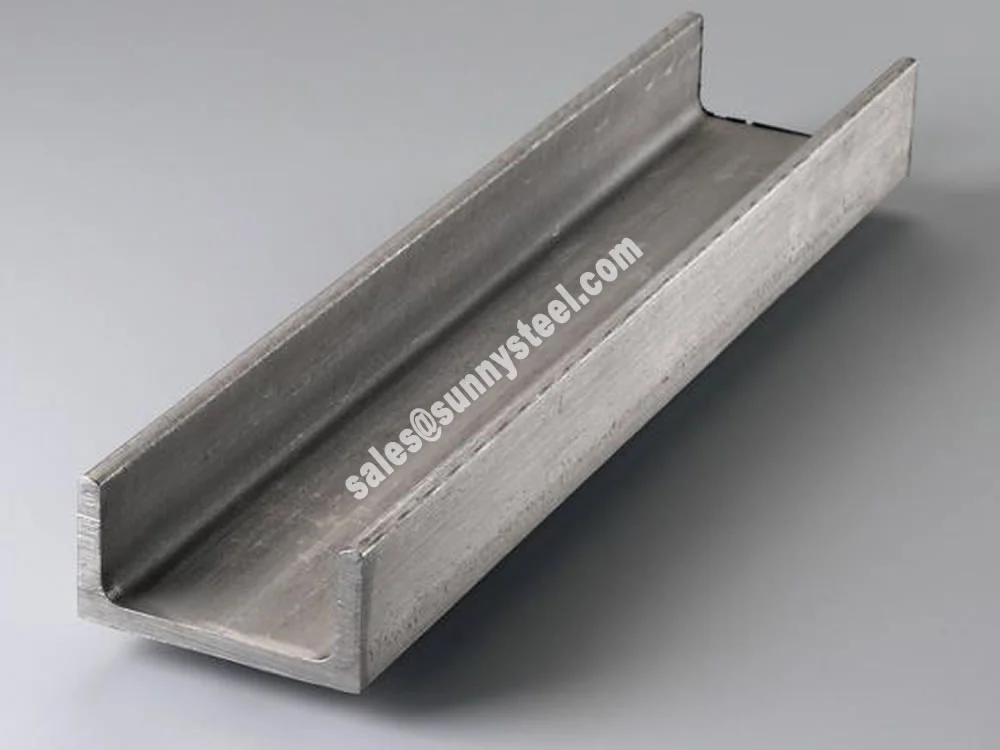

Stainless Steel Channel (also known as 'C' sections) is a hot rolled stainless channel shape with inside radius corners that is ideal for all structural applications where greater strength and superior corrosion resistance is required. Available in austenitic grades such as 304/304L and 316/316L, these channels offer non-rusting properties and are perfect for hygienic environments like hospitals, food and beverage producers, and laboratories. They provide full material traceability via a unique barcoding system and come with clear, readable test certification for quality assurance.
We've got you covered with our wide range of channels in various grades and sizes. Whether you need something specific or have a more general need, we've got you covered. Our stainless steel channels are available in standard lengths, but if you need something more customised, we've got you covered there too!
| Material Grades | 304/304L (1.4301/1.4307), 316/316L (1.4401/1.4404), 321 (1.4541) |
|---|---|
| Production Method | Hot Rolled with Inside Radius Corners |
| Size Range | Imperial and Metric Sizes Available |
| Thickness | 3 mm to 12 mm |
| Standard Length | 6 m to 12 m (Custom Lengths to Order) |
| Temperature Range | -200°C to 800°C |
| Tensile Strength (304) | Min 515 MPa |
| Yield Strength (304) | Min 205 MPa |
| Chemical Composition (304, Key) | Cr: 18-20%, Ni: 8-10.5%, C: ≤0.08%, Mo: (316: 2-3%) |
Common sizes for 304/316L/321 grades in Europe. Tolerances per EN 10279:2000.
| Designation | Height (h mm) | Width (b mm) | Web Thick (t_w mm) | Flange Thick (t_f mm) | Weight (kg/m) |
|---|---|---|---|---|---|
| UPN 20 x 10 x 3 | 20 | 10 | 3 | 3.5 | 0.90 |
| UPN 30 x 15 x 4 | 30 | 15 | 4 | 4.5 | 1.80 |
| UPN 40 x 20 x 3 | 40 | 20 | 3 | 3.3 | 1.87 |
| UPN 50 x 25 x 5 | 50 | 25 | 5 | 6 | 3.94 |
| UPN 60 x 30 x 6 | 60 | 30 | 6 | 6 | 5.17 |
| UPN 65 | 65 | 42 | 5.5 | 7.5 | 7.22 |
| UPN 80 | 80 | 45 | 6 | 8 | 8.80 |
| UPN 100 | 100 | 50 | 6 | 8.5 | 10.80 |
We're a small, family-run business and we produce and distribute hot rolled and laser fused stainless steel channels all over the world. We're proud to say that we can supply channels in both imperial and metric sizes.
To find a list of the standard sizes we can supply in your region, please select the catalog below. We're so proud of our range of capabilities, which far exceeds standard sections. We're a profile solutions company, and we're always delighted to make custom shapes, sizes and alloys to order. If you're not quite finding what you're looking for, please get in touch and our friendly team will be happy to help you with your custom profile needs. We're here to make your dreams a reality!
Stainless steel is a popular building material in hygienic environments because it doesn't rust, which is perfect for places like hospitals, food and beverage producers and laboratories.
We're proud to offer our valued customers full traceability for all the engineering materials we sell, thanks to our unique barcoding system. Plus, every one of our products comes with a clear, readable test certification, so you can be sure you're getting the best quality.
Perfect for hospital equipment, instrumentation and processing equipment for chemicals, dyes, crude and refined oils.
Great for chemical and pharmaceutical equipment, pump shafts and anything where you need a combination of low magnetic permeability and superior corrosion resistance.
Great for the film and photo industry, power station construction, automotive and general construction.
