Niobium-stabilized For High-temperature Service
Astm a312 tp347h stainless steel pipe (uns s34709) for high-temperature service.
Niobium-stabilized For High-temperature Service
Astm a312 tp347h stainless steel pipe (uns s34709) for high-temperature service. niobium-stabilized austenitic grade with seamless/welded options.
TP347H (UNS S34709) seamless and welded austenitic stainless steel pipe per ASTM A312/ASME SA312. Niobium-stabilized to prevent intergranular corrosion in welded structures at elevated temperatures up to 1500°F (815°C). Sizes 1/8″–30″ NPS, Sch 5S–XXS, with excellent creep and corrosion resistance for boilers, heat exchangers, and chemical plants.
TP347H is a niobium-stabilized version of Type 347 stainless steel, designed for high-temperature applications where welding is involved. The "H" designation indicates higher carbon content for improved creep strength and stability at elevated temperatures. Manufactured to ASTM A312 for seamless and straight-seam welded pipes, it offers excellent resistance to sensitization and intergranular corrosion.
Commonly used in power generation, petrochemical, and thermal processing where sustained high temperatures (up to 1500°F) and corrosive environments are present.

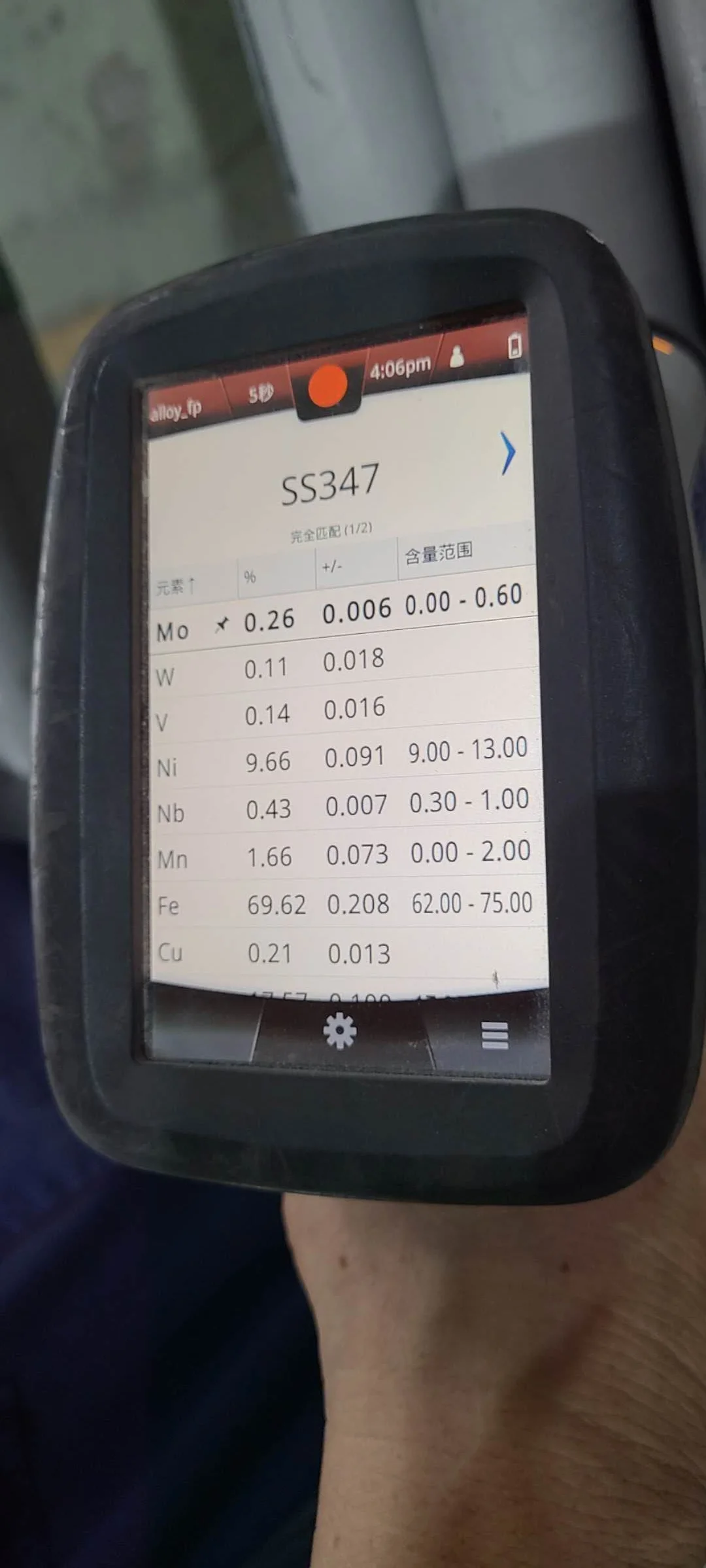

| Element | Content Range (%) |
|---|---|
| Carbon (C) | 0.04–0.10 |
| Manganese (Mn) | ≤2.00 |
| Silicon (Si) | ≤1.00 |
| Phosphorus (P) | ≤0.045 |
| Sulfur (S) | ≤0.030 |
| Chromium (Cr) | 17.0–19.0 |
| Nickel (Ni) | 9.0–13.0 |
| Niobium (Nb) | 8×C–1.10 |
Note: Niobium is added for stabilization to reduce carbide precipitation and enhance resistance to intergranular corrosion.
| Property | Value |
|---|---|
| Tensile Strength, min | ≥515 MPa (≥75 ksi) |
| Yield Strength (0.2% offset), min | ≥205 MPa (≥30 ksi) |
| Elongation (in 50 mm), min | ≥35% |
| Hardness (Brinell, HBW), max | 201 |
| Hardness (Rockwell B, HRB), max | 95 |
| Property | Value |
|---|---|
| Density | 8.0 g/cm³ |
| Melting Range | 1400–1450°C (2552–2642°F) |
| Thermal Expansion Coefficient (20–100°C) | 16.6 μm/m·°C |
| Thermal Conductivity (100°C) | 15 W/m·K |
| Specific Heat Capacity (20°C) | 500 J/kg·K |
